Power Outlet: Notes

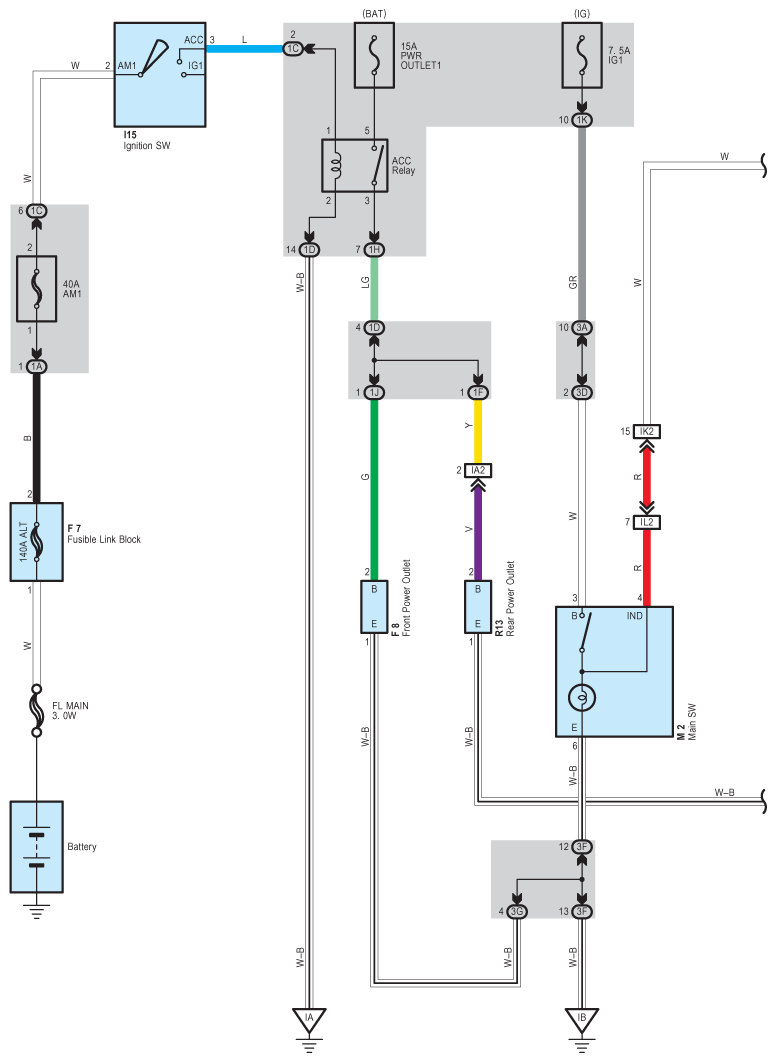

Fig 1: Power Outlet System Wiring Diagram (1 Of 2)
G08860968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

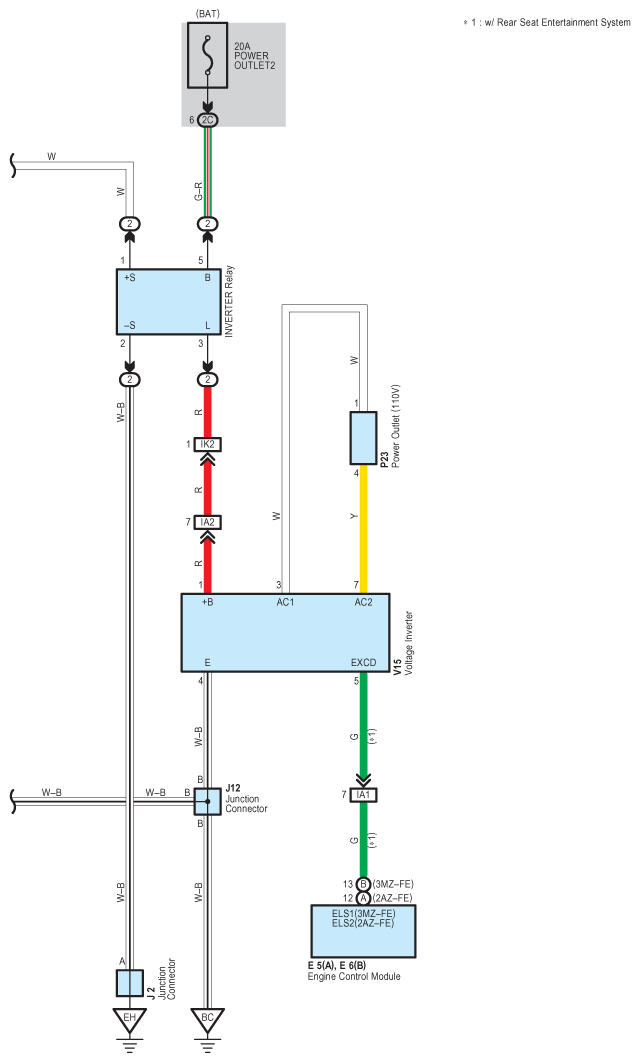

Fig 2: Power Outlet System Wiring Diagram (2 Of 2)
G08860969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
