Theft Deterrent System: Notes

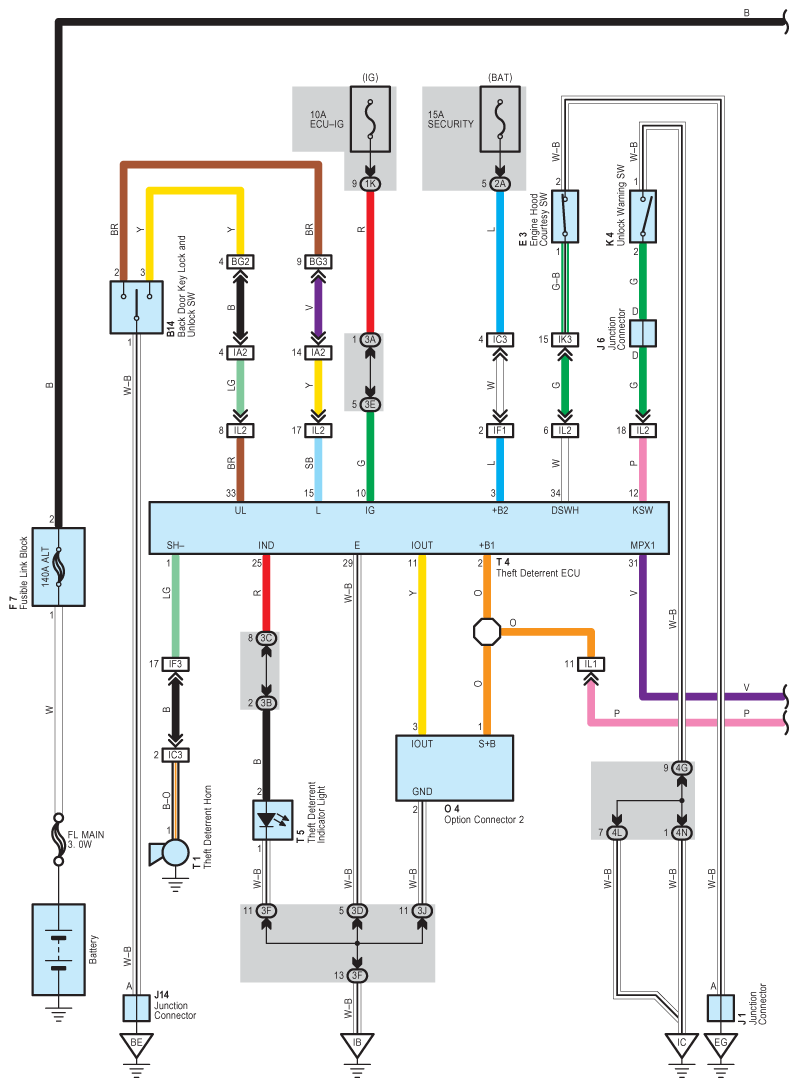

Fig 1: Theft Deterrent System Wiring Diagram (1 Of 4)
G08860951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

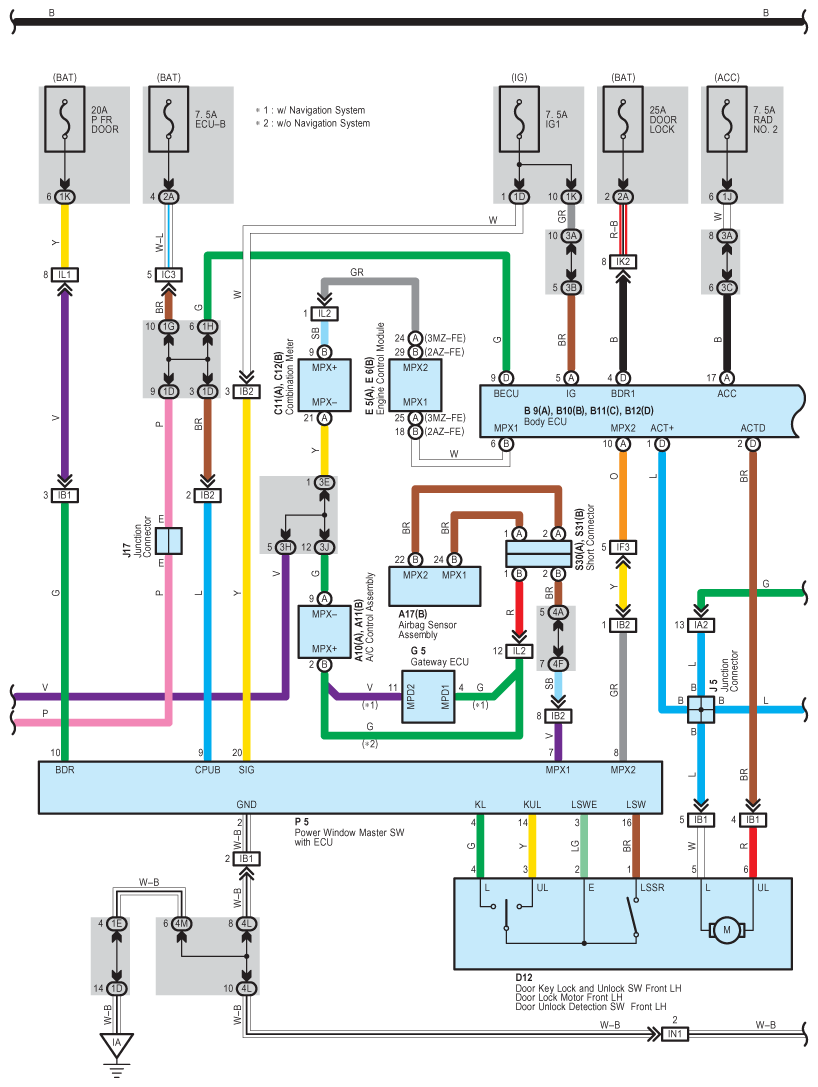

Fig 2: Theft Deterrent System Wiring Diagram (2 Of 4)
G08860952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

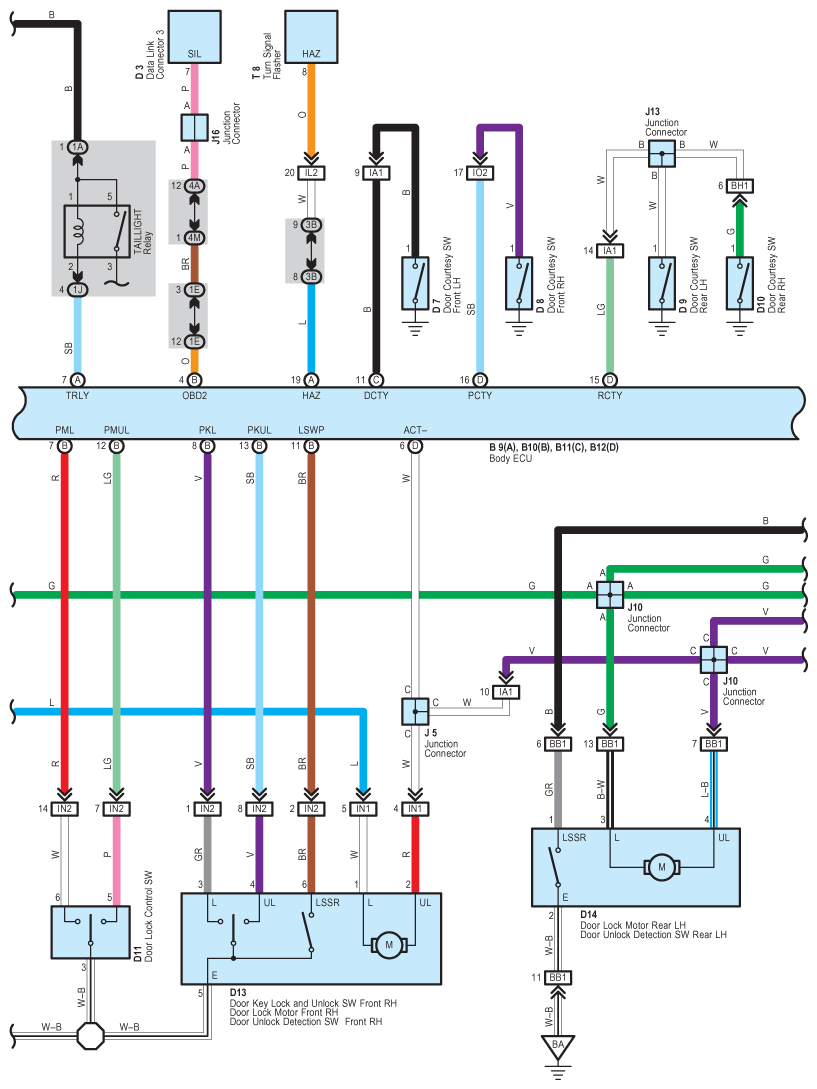

Fig 3: Theft Deterrent System Wiring Diagram (3 Of 4)
G08860953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

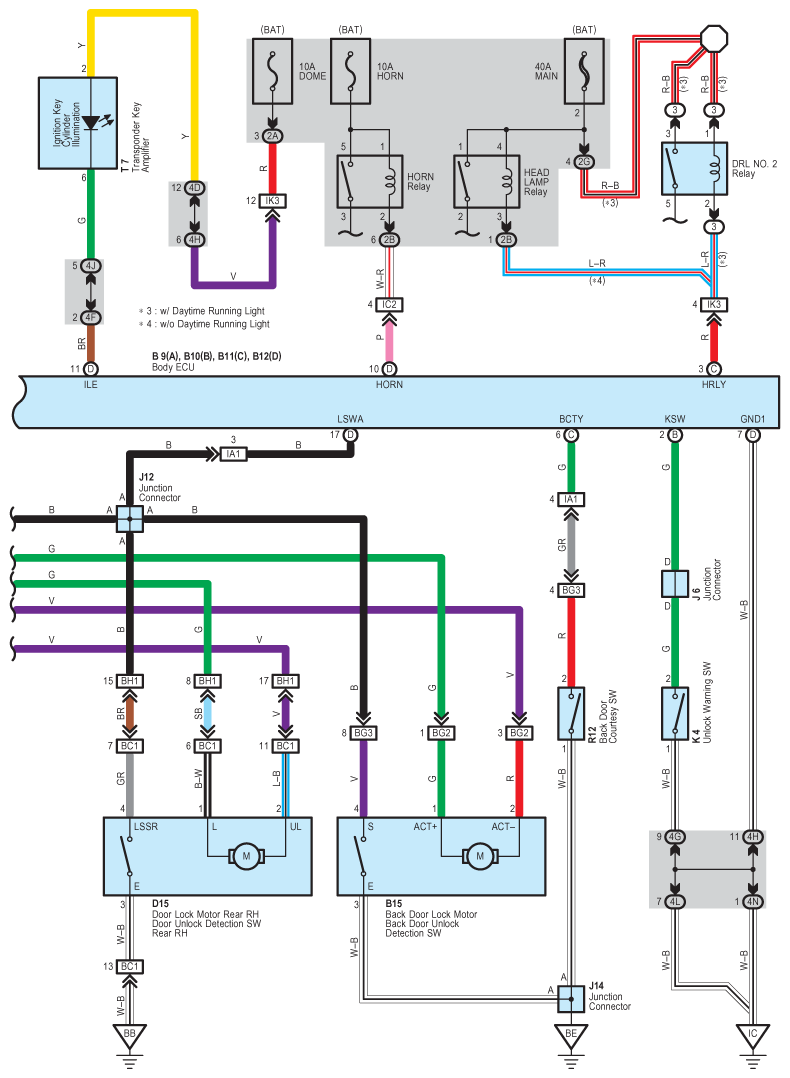

Fig 4: Theft Deterrent System Wiring Diagram (4 Of 4)
G08860954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
