Knock Sensor: Components

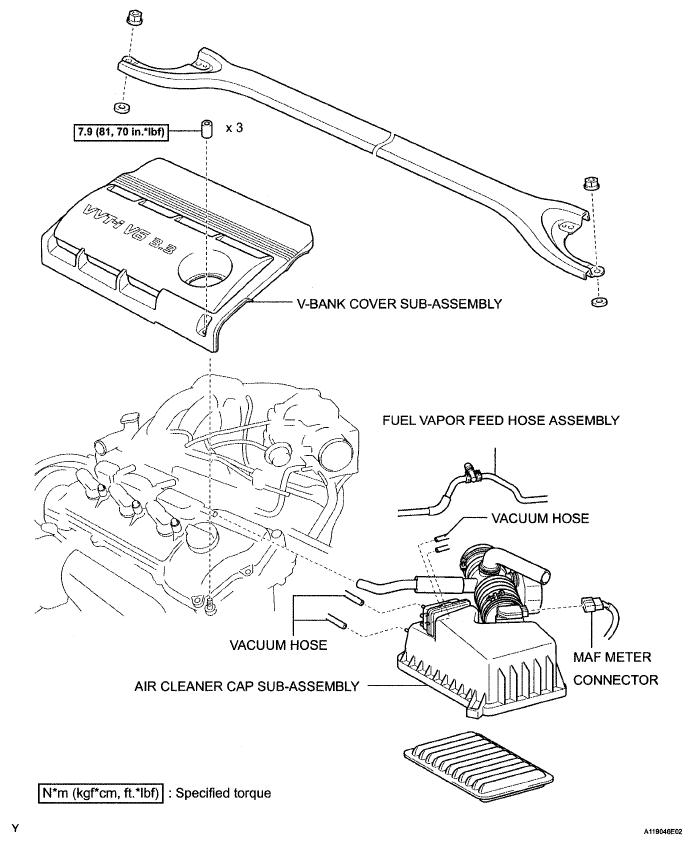

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 4)
G05245830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

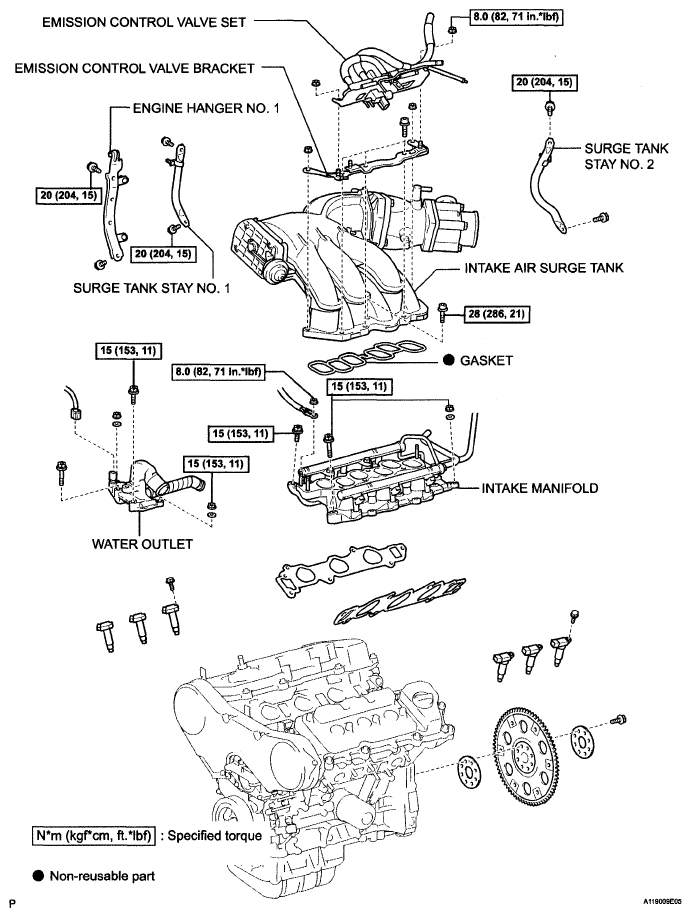

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 4)
G05245831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

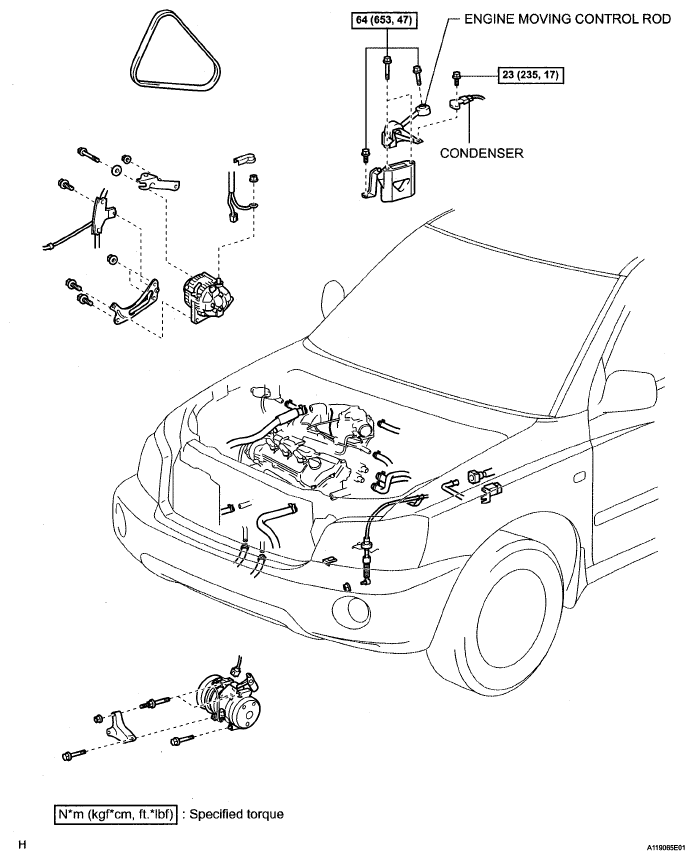

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 4)
G05245832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

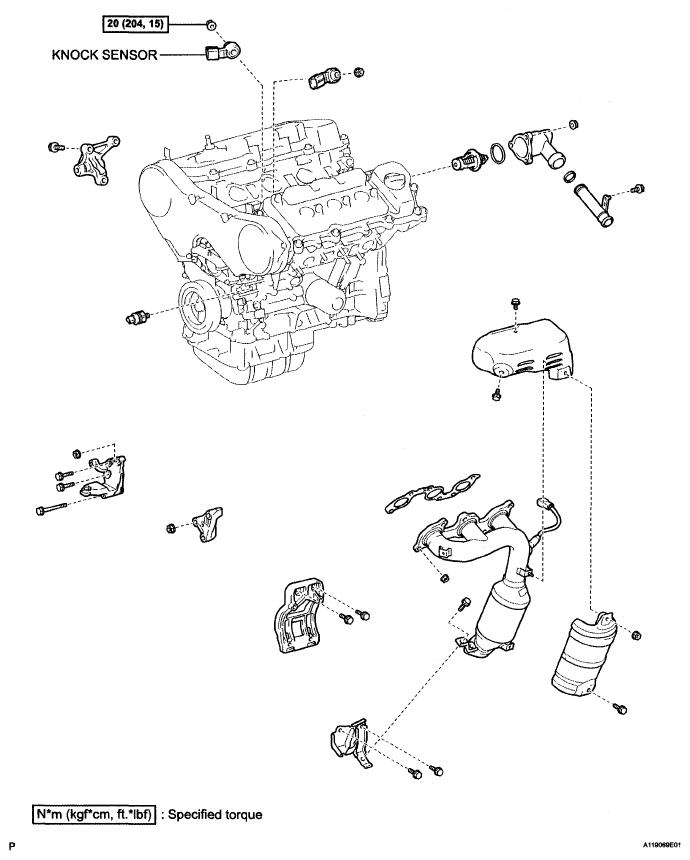

Fig 4: Knock Sensor Replacement Components With Torque Specifications (4 Of 4)
G05245833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
