Knock Sensor: Installation
- INSTALL KNOCK SENSOR
- Install the 2 sensors with the 2 nuts, as shown in the illustration.
Torque: 20 N.m (199 kgf*cm, 14 ft.*lbf)
- Connect the 2 sensor connectors.
- Install the 2 sensors with the 2 nuts, as shown in the illustration.
- INSTALL WATER OUTLET
- Install 2 new gaskets to the 2 cylinder heads.
- Install the water outlet together with the water bypass hose No. 1 and unlock the hose clamp.
- Tighten the 2 bolts, 2 nuts and 2 washers.
Torque: 15 N.m (153 kgf*cm, 11 ft.*lbf)
- Install the clamp.
- Connect the ECT sensor connector.
- Connect the radiator hose inlet.
- INSTALL ENGINE MOVING CONTROL ROD (See INSTALLATION )
- INSTALL INTAKE MANIFOLD

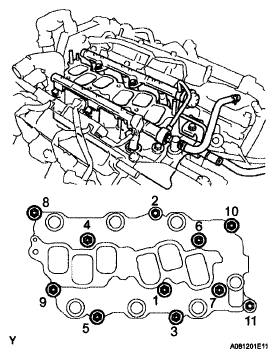

- Tighten the intake manifolds's 9 bolts and 2 nuts little by little in the numerical order shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 15 N.m (153 kgf*cm, 11 ft.*lbf)
NOTE: In this case, fully tightening one of these bolts or nuts without partially tightening the other bolts or nuts in the group may damage the intake manifold, bolts and nuts. - Retighten the water outlet mounting bolts and nuts.
Torque: 15 N.m (153 kgf*cm, 11 ft.*lbf)
- Install the ground cable with the nut.
Torque: 8.4 N.m (86 kgf*cm, 74 in.*lbf)
- Connect the heater inlet water hose.
- Connect the fuel pipe No. 1.
- Push the quick connector into the pipe until it makes "click" sound.
- Install the fuel pipe clamp.
- Tighten the intake manifolds's 9 bolts and 2 nuts little by little in the numerical order shown in the illustration.
- INSTALL INTAKE AIR SURGE TANK (See INSTALLATION )
- INSTALL EMISSION CONTROL VALVE SET (See INSTALLATION )
- INSTALL AIR CLEANER CAP SUB-ASSEMBLY
- CHECK CONNECTION OF VACUUM HOSE (See INSTALLATION )
- ADD ENGINE COOLANT (See ON-VEHICLE INSPECTION )
- CHECK ENGINE COOLANT LEAK (See ON-VEHICLE INSPECTION )
- CHECK FUEL LEAK
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
