Parts Location

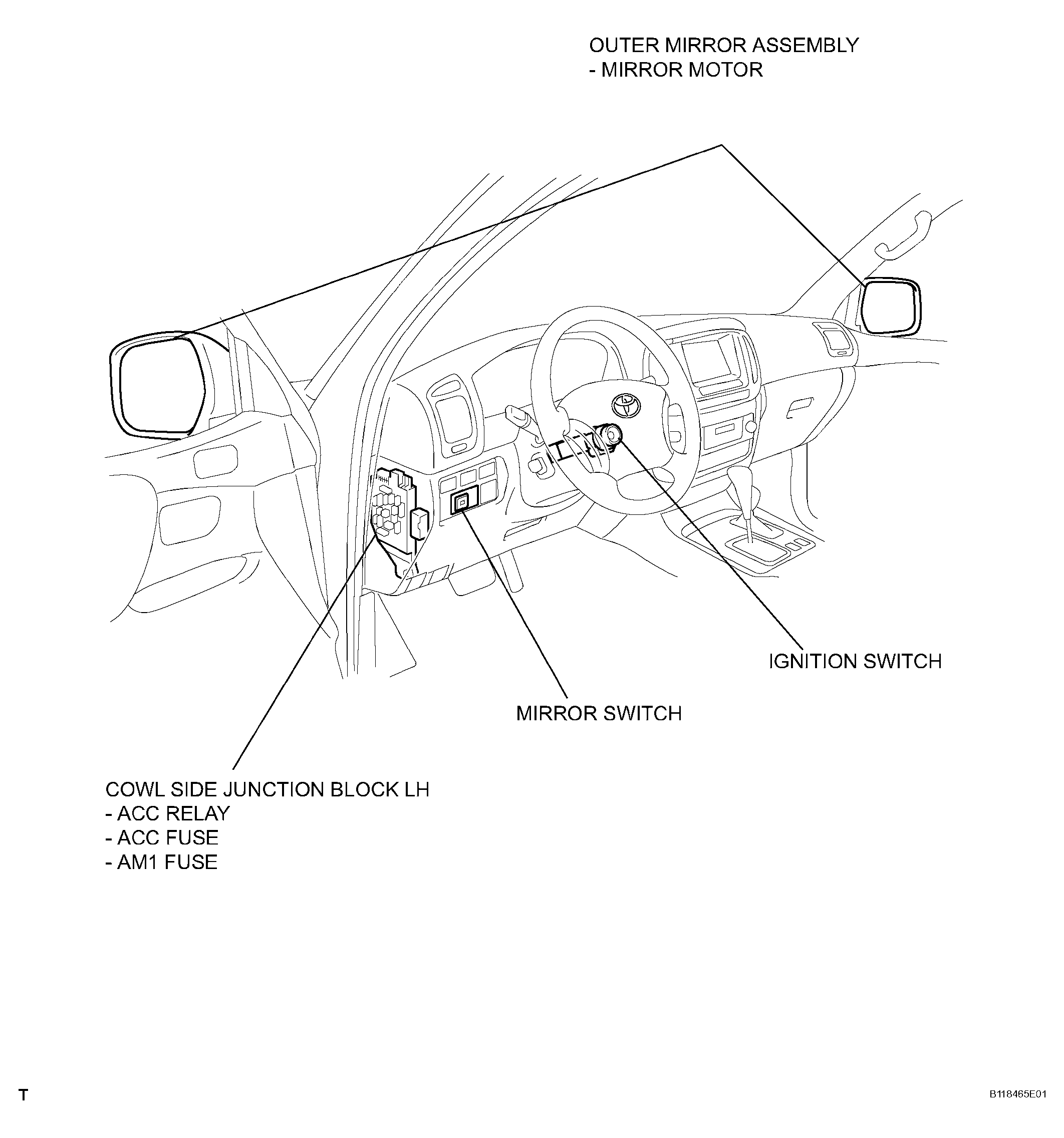

Fig 1: Identifying Power Mirror Control System Components And Replacement Location
G04438731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
