Control Units

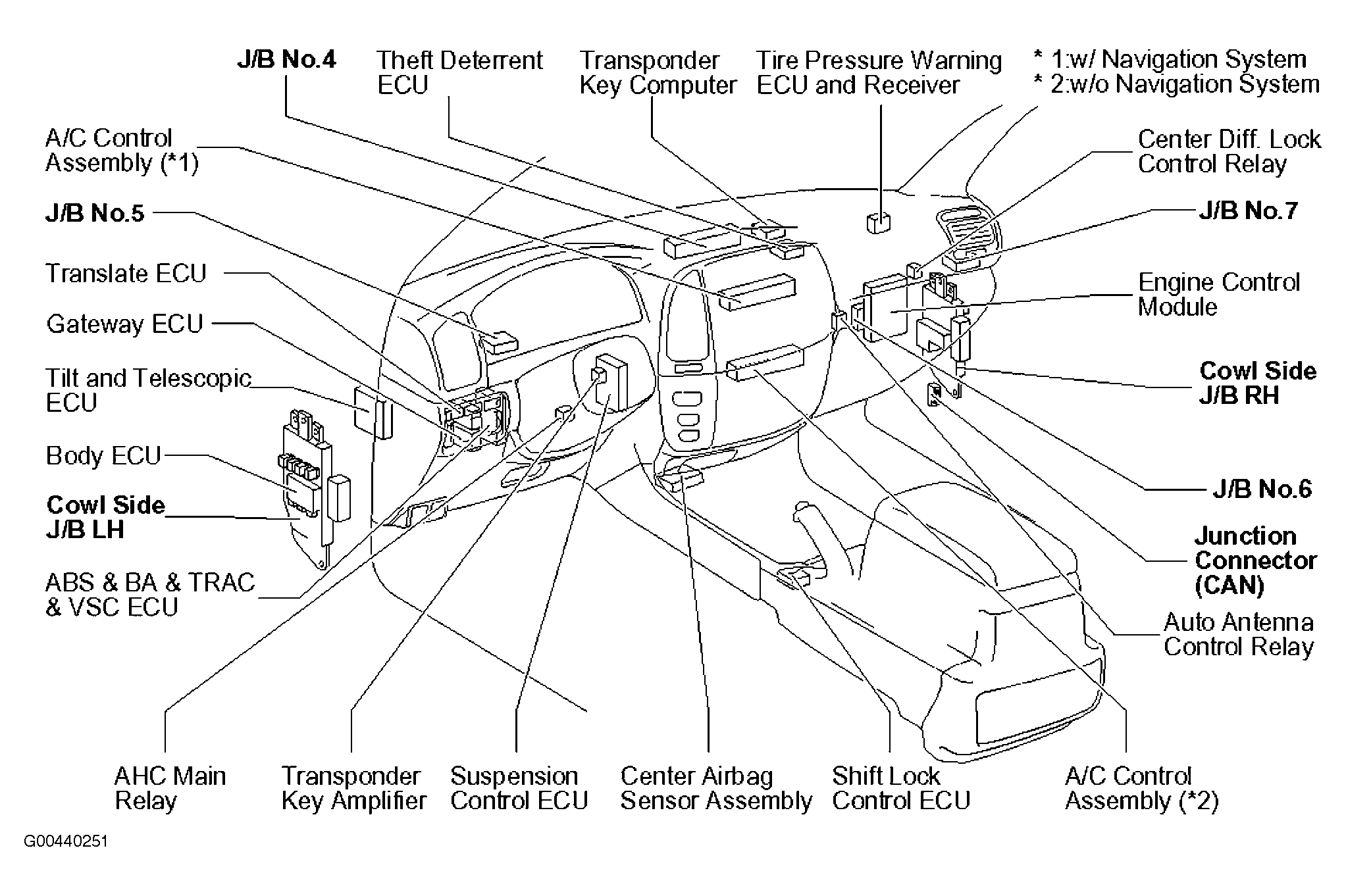

CONTROL UNITS LOCATION
| Component | Location |
|---|---|

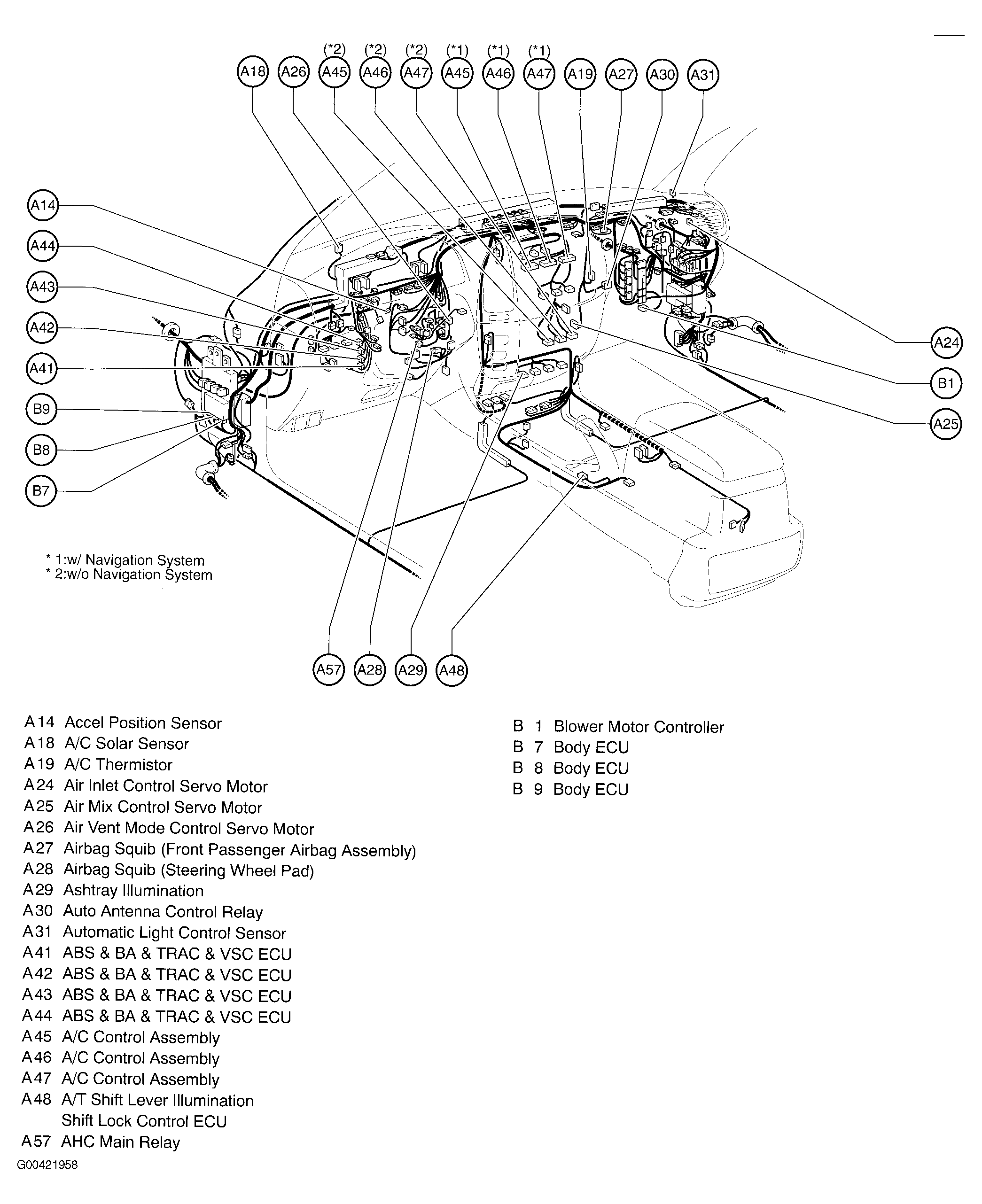

| ABS & BA & TRAC & VSC ECU | Behind left side of dash. See Figure. |
| A/C Amplifier (Rear) | On right side of cargo area. See Figure. |

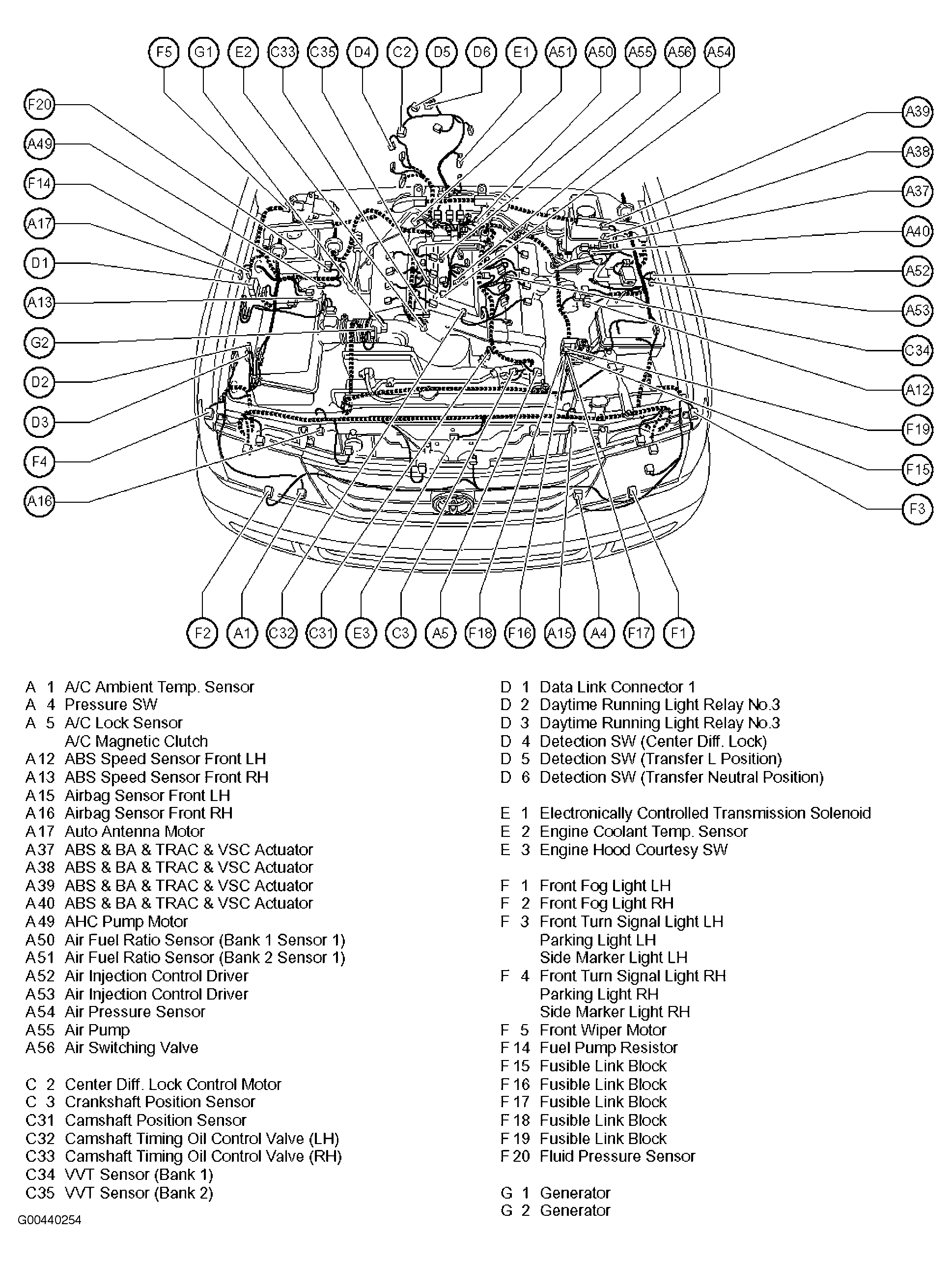

| Air Injection Control Driver | Left side of engine compartment. See Figure. |
| Blower Motor Controller | Behind right side of dash. See Figure. |
| Body ECU | On cowl side J/B LH. See Figure. |

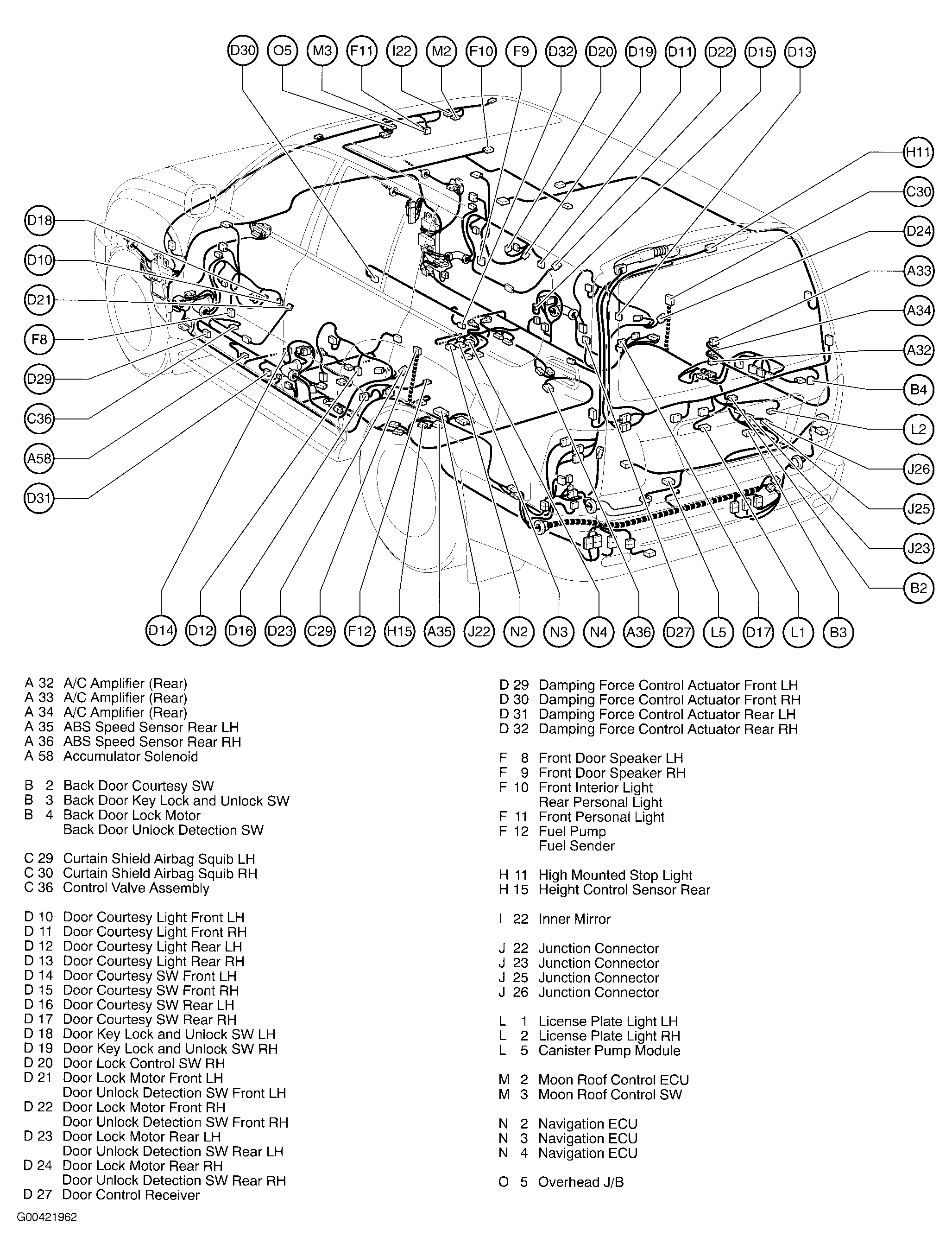

| Door Control Receiver | On left "D" pillar. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Behind left side of dash. See Figure. |
| Moon Roof Control ECU | On roof, in front of moon roof. See Figure. |
| Navigation ECU | Under front passenger's seat. See Figure. |

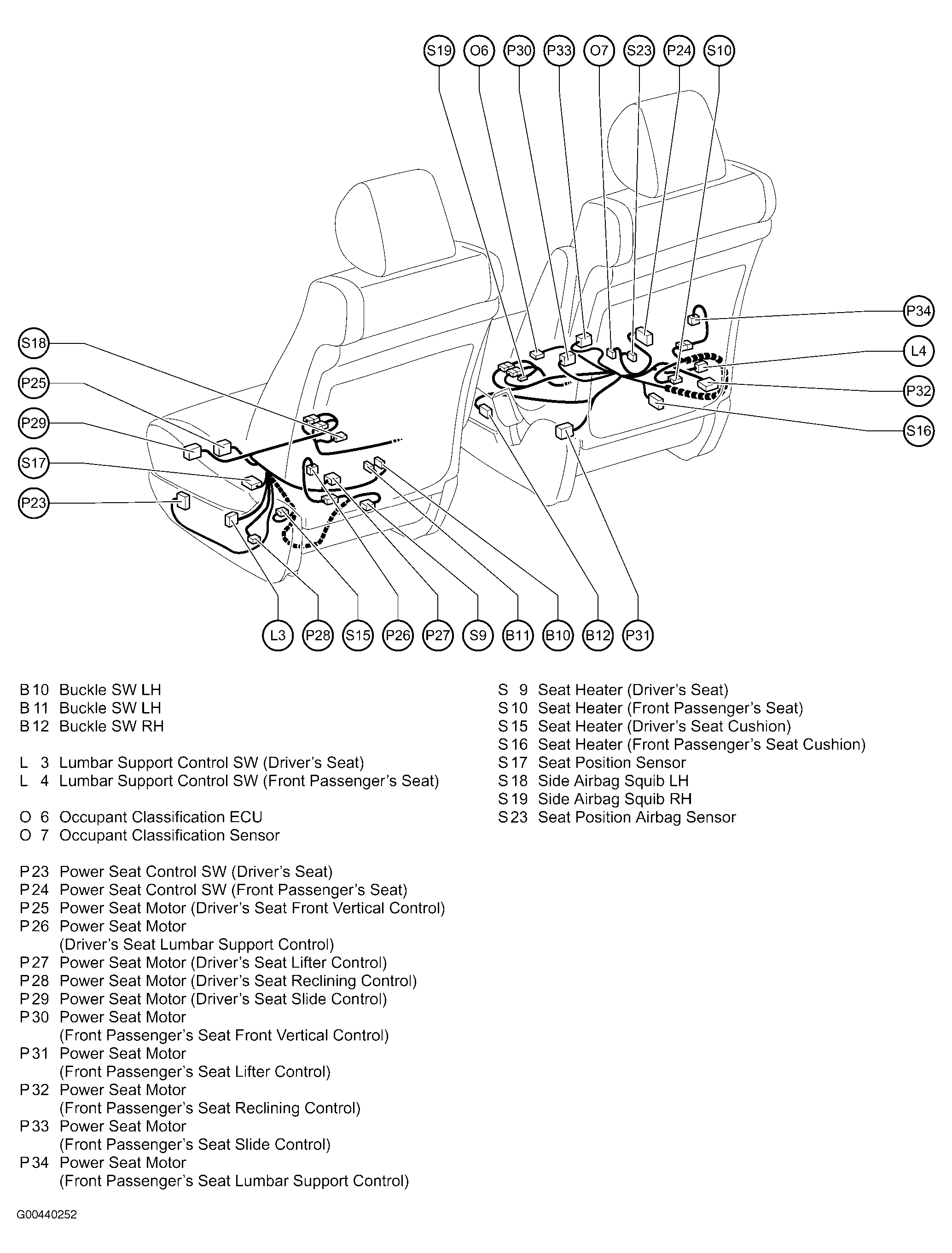

| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Shift Lock Control ECU | Below center console. See Figure. |
| Stereo Component Amplifier | Under passenger's front seat. See Figure. |

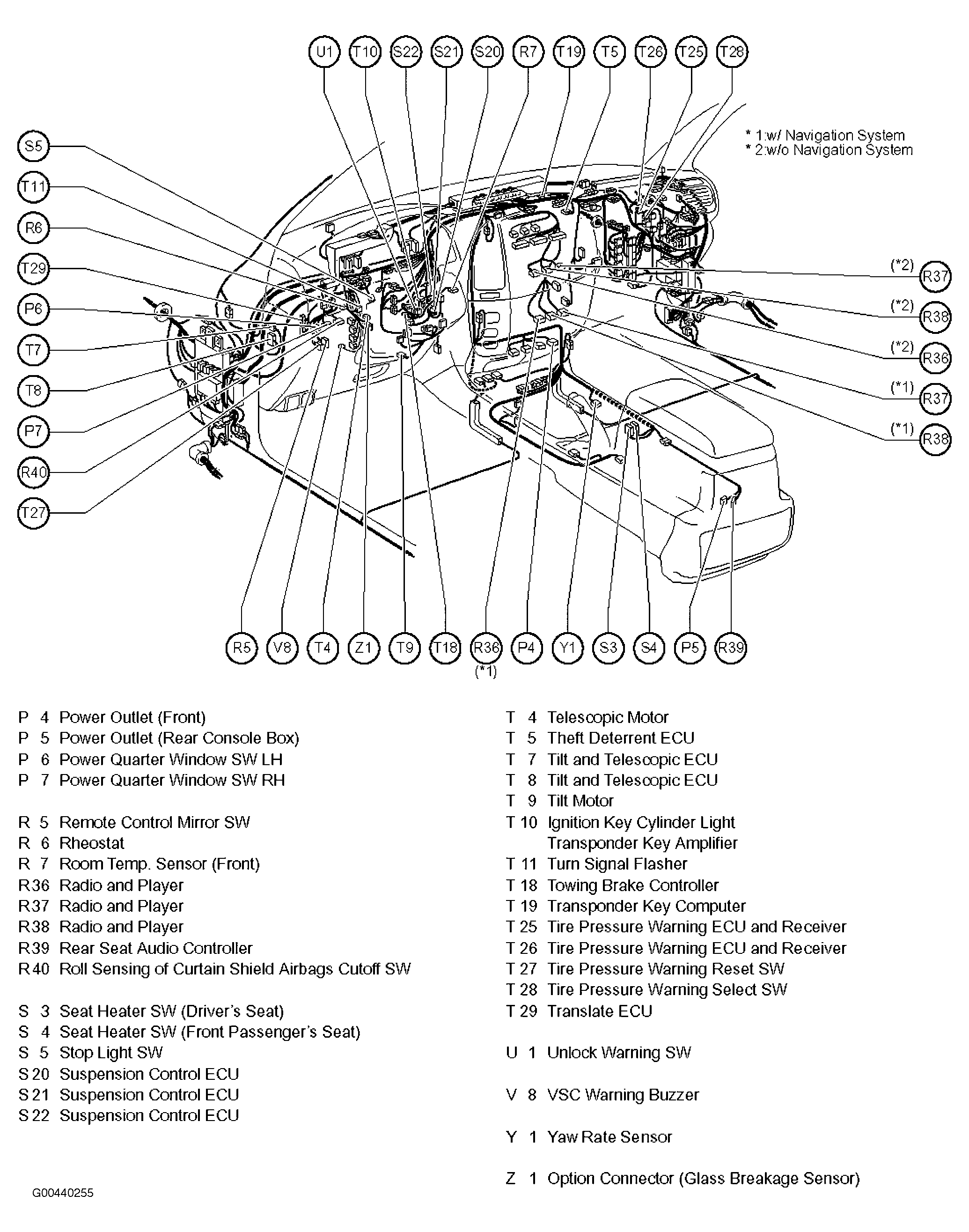

| Suspension Control ECU | Behind center of dash. See Figure. |
| Television Camera ECU | Under front passenger's seat. See Figure. |
| Theft Deterrent ECU | Behind center of dash. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Tire Pressure Warning ECU & Receiver | Behind right side of dash. See Figure. |
| Towing Brake Controller | Left side of dash. See Figure. |
| Translate ECU | Behind left side of dash. See Figure. |
| Transponder Key Amplifier | In steering column. See Figure. |
| Transponder Key Computer | Top center of dash. See Figure. |
