Electrical Component Locator: Grounds

GROUNDS LOCATION

Component Location

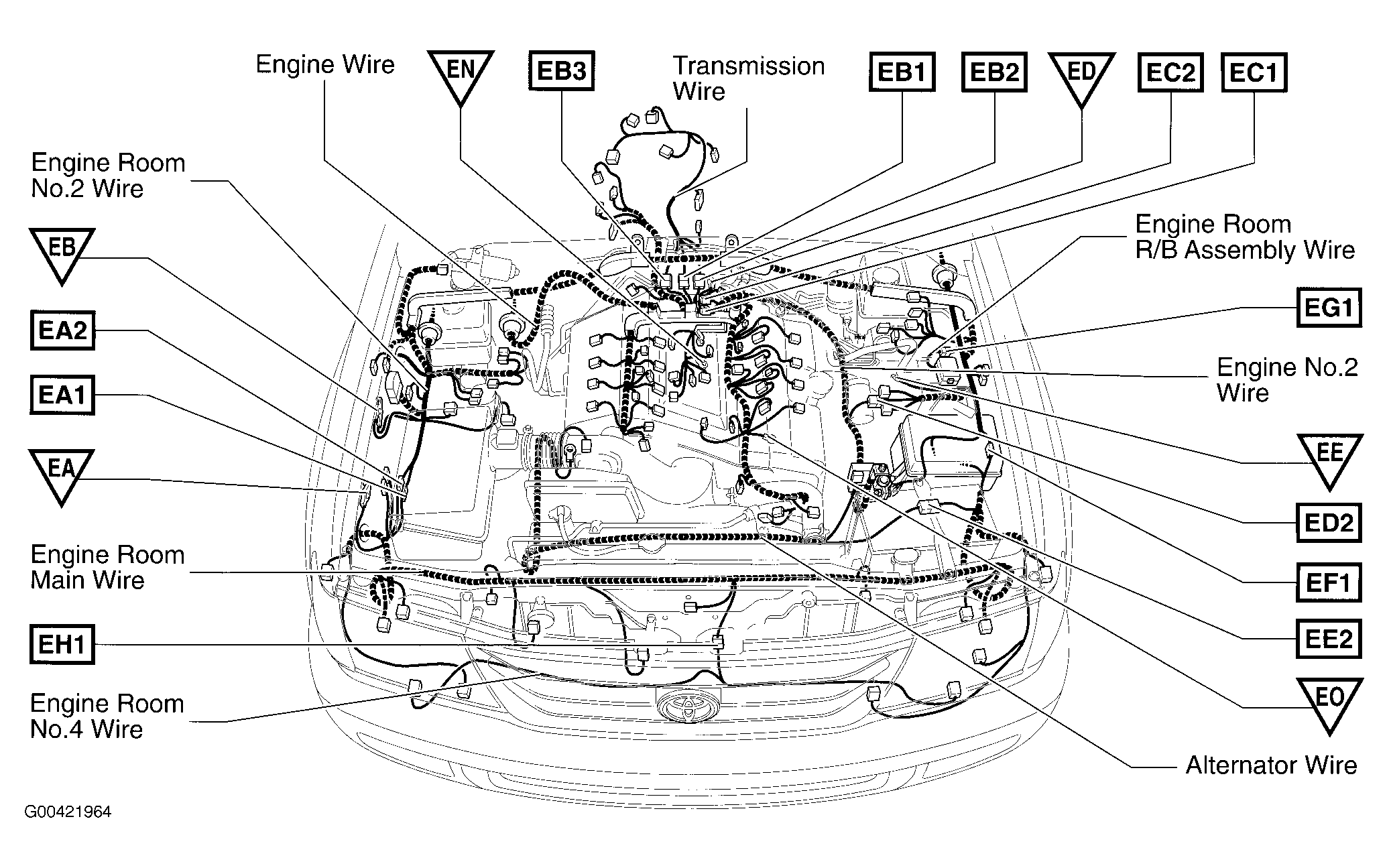

BJ Under driver's seat. See Figure.
BK Under front passenger's seat. See Figure.
BL Under front passenger's seat. See Figure.
BM At rear of left quarterpanel. See Figure.
EA At front of right front fender. See Figure.
EB At right front fender apron. See Figure.
EC At rear of right cylinder head. See Figure.
ED At rear of left cylinder head. See Figure.
EE At left front fender apron. See Figure.
EN Top center of engine. See Figure.
EO Front of left cylinder head. See Figure.
IF At cowl side J/B LH. See Figure.
IG At cowl side J/B LH. See Figure.
IH At cowl side J/B RH. See Figure.
II At cowl side J/B RH. See Figure.
