Section 10 (Starting System): Starter: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Starter Components & Replacements (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Starter Components & Replacements (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

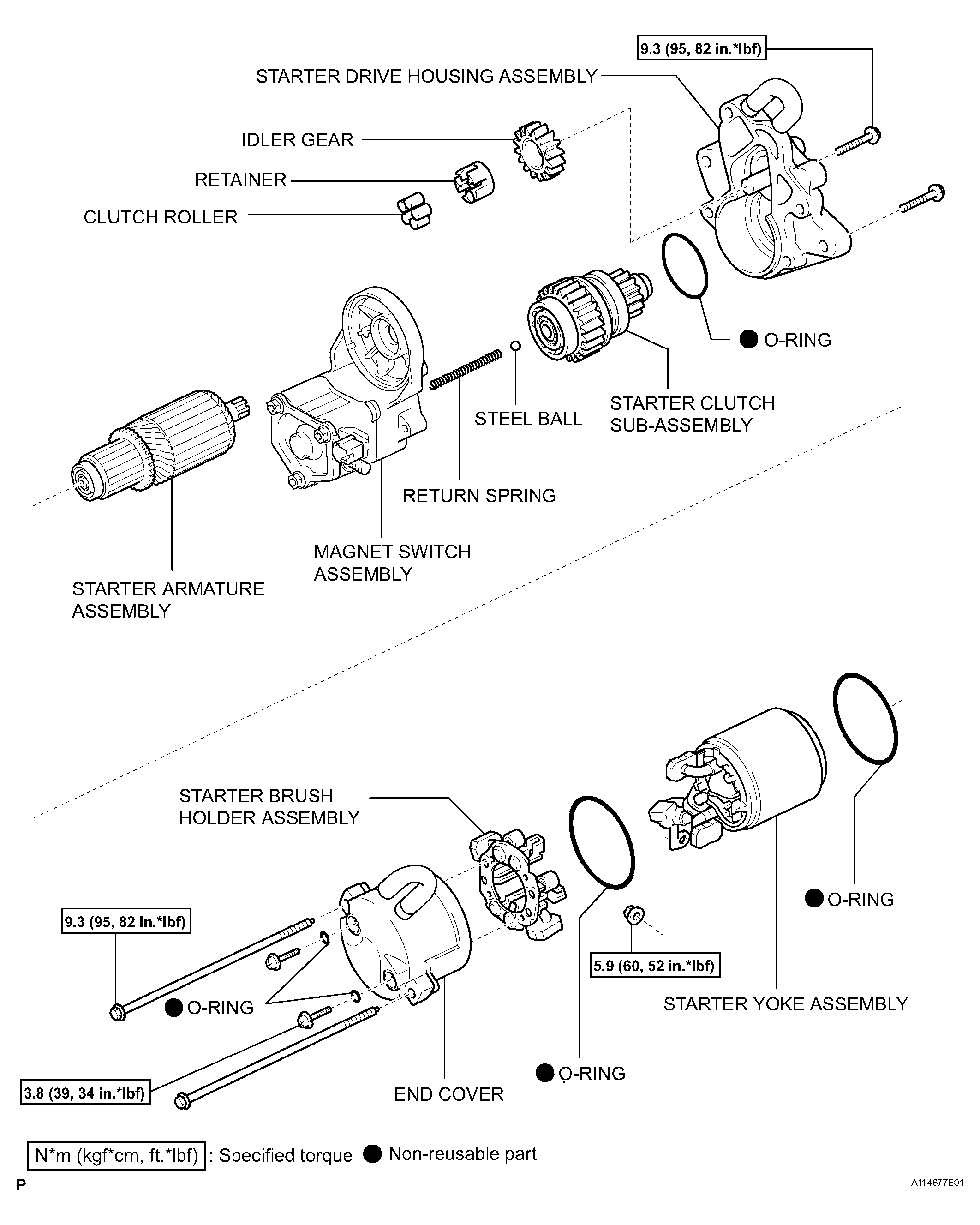

Fig 3: Identifying Starter Components & Replacements (3 Of 4)

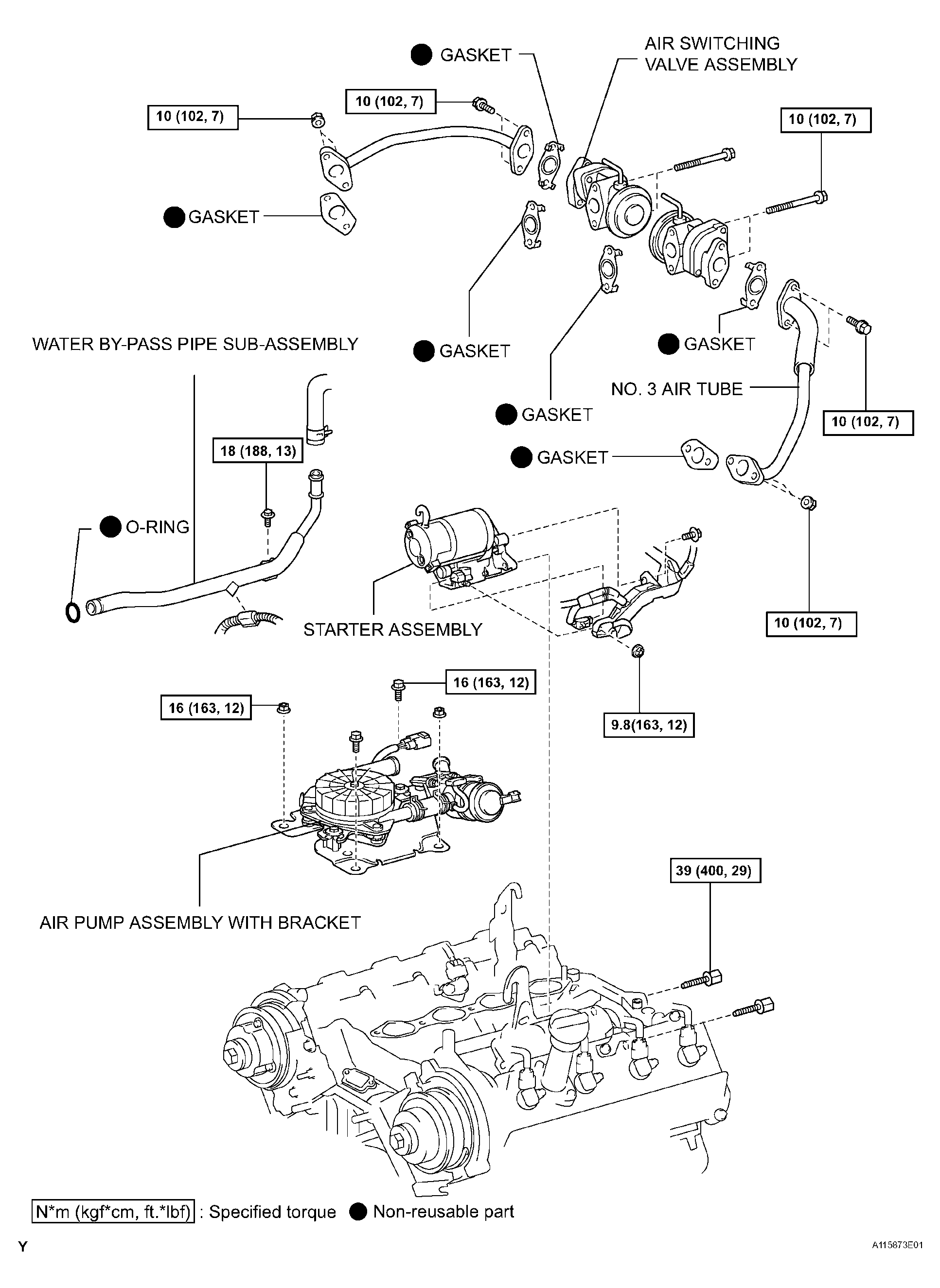

Fig 4: Identifying Starter Components & Replacements (4 Of 4)
