Front Upper Suspension Arm: Components

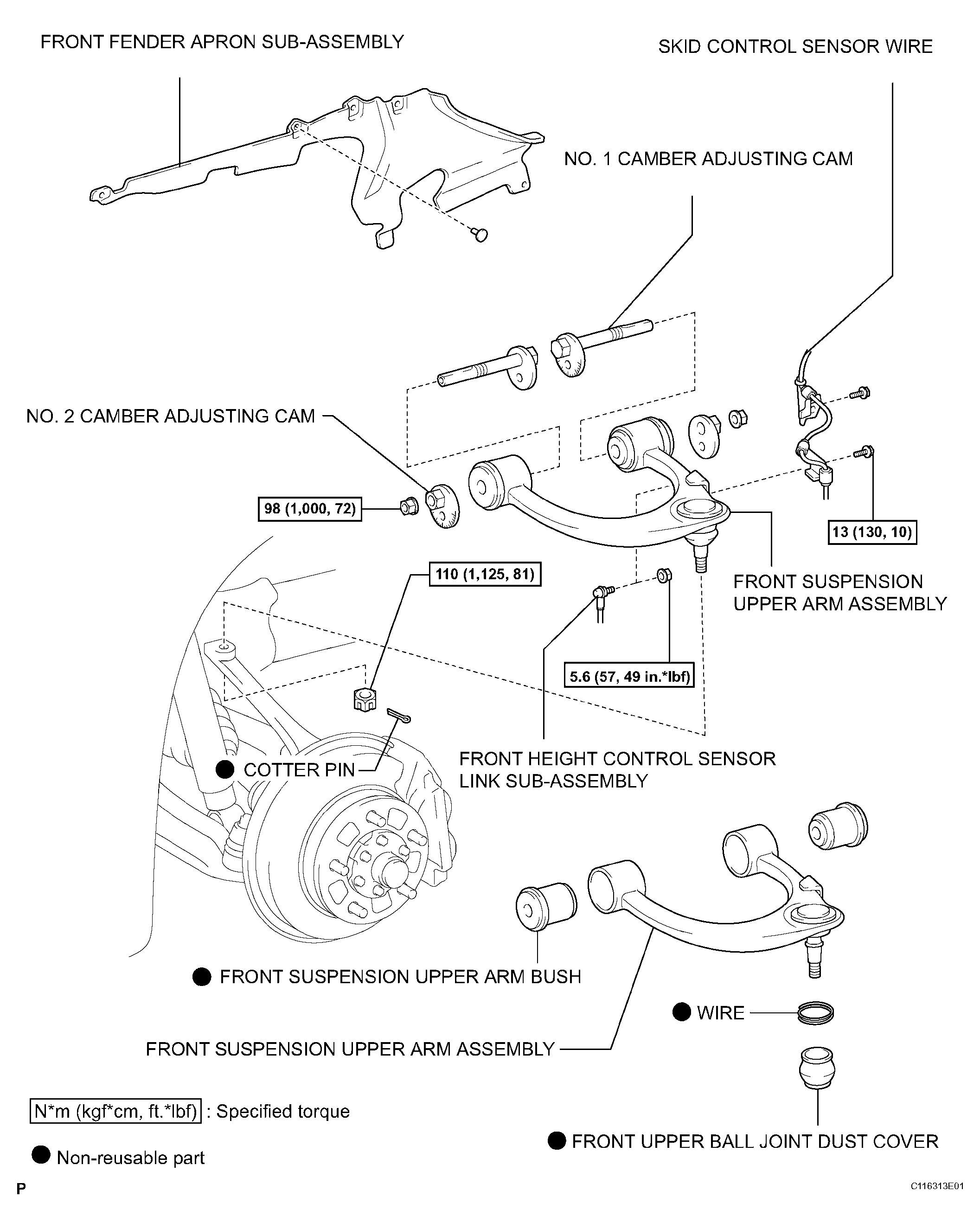

Fig 1: Front Upper Suspension Arm Replacement Components & Torque Specification
G04437564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
