Oil Pump: Components

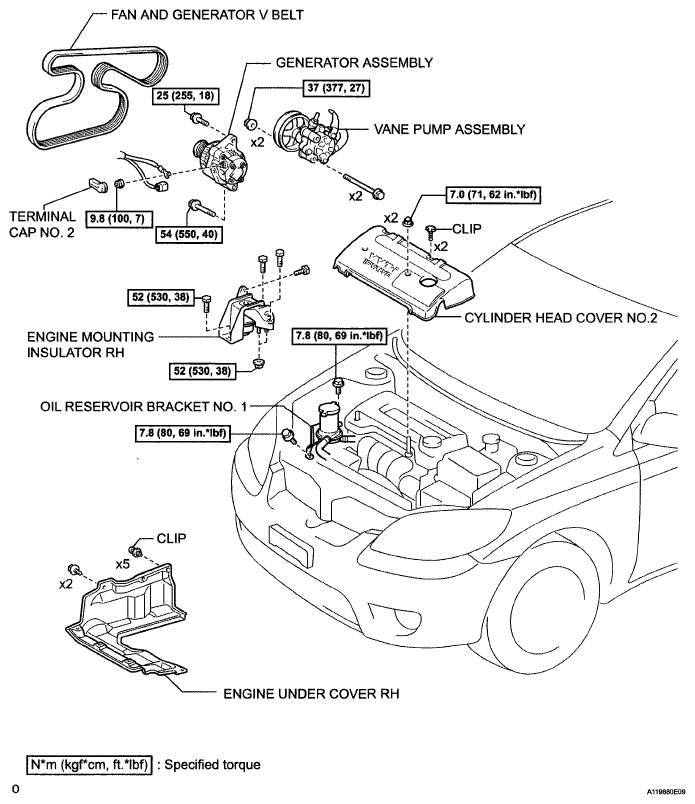

Fig 1: Generator, Engine Mounting And Cylinder Head Cover Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

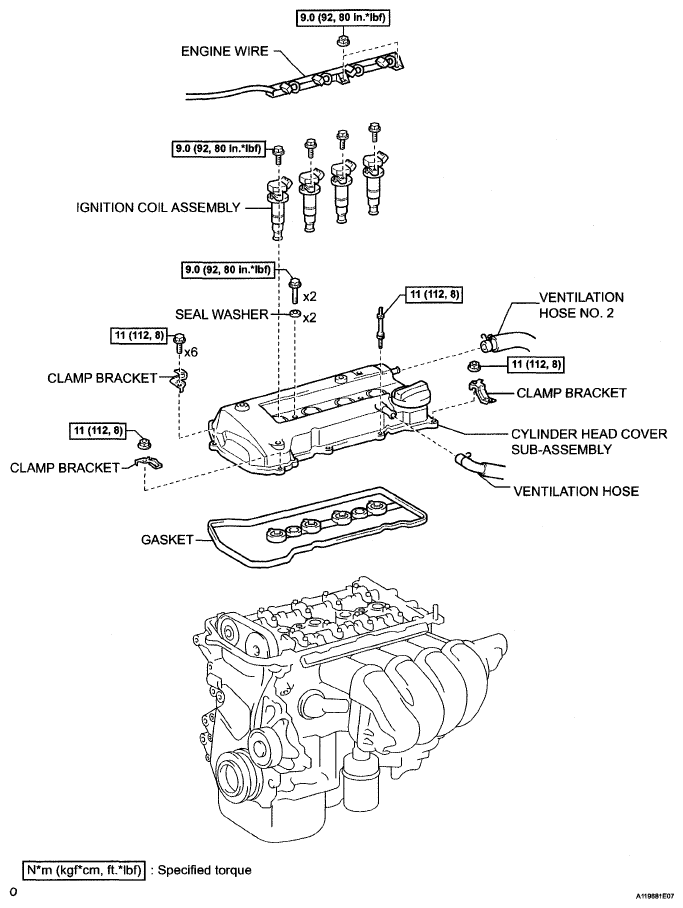

Fig 2: Ignition Coil, Clamp Bracket And Cylinder Head Cover Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

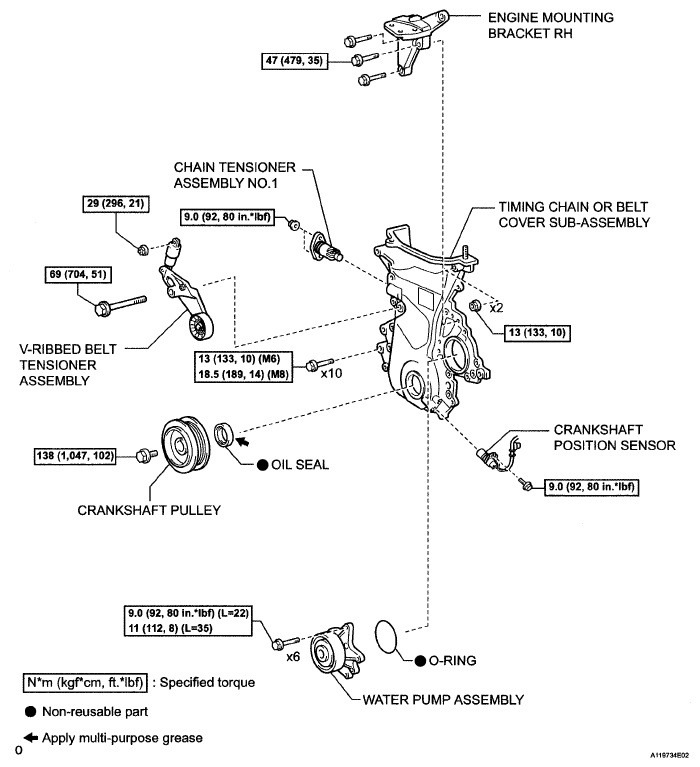

Fig 3: Engine Mounting Bracket, Chain Tensioner And Crankshaft Position Sensor With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

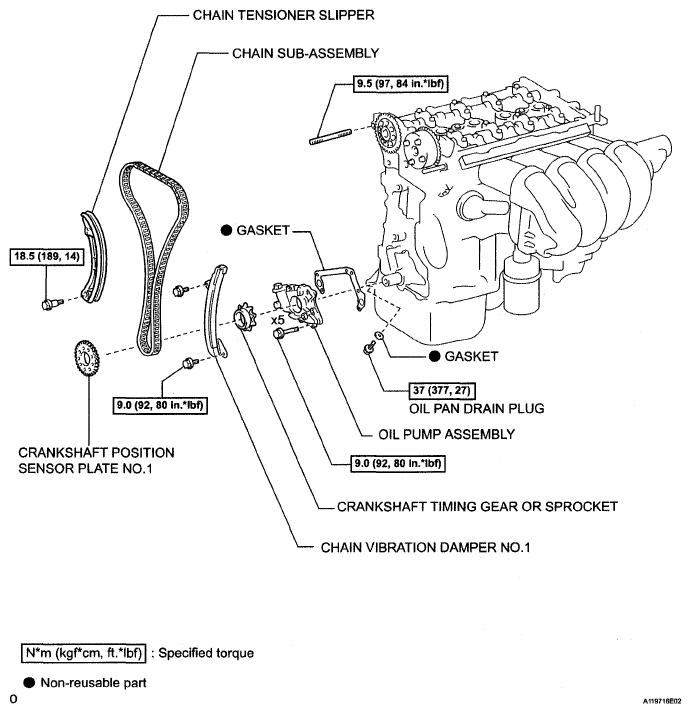

Fig 4: Oil Pump Assembly And Associated Replacement Components With Torque Specifications

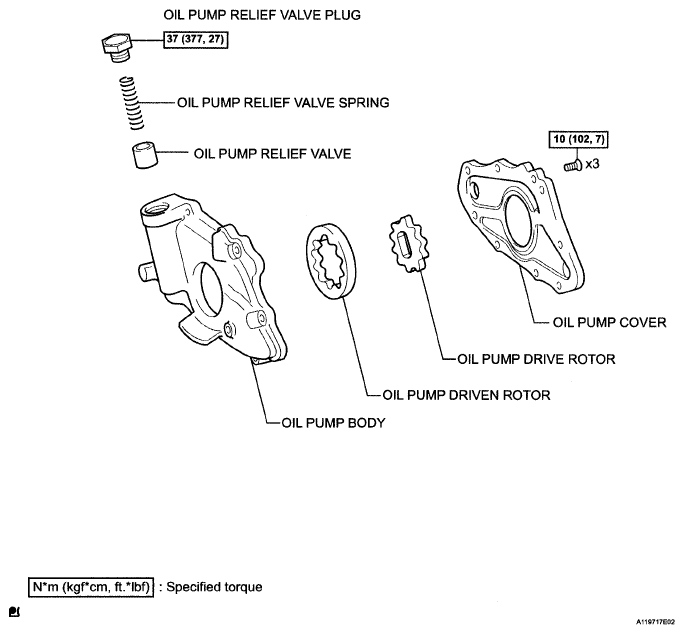

Fig 5: Oil Pump Replacement Components With Torque Specifications
