DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

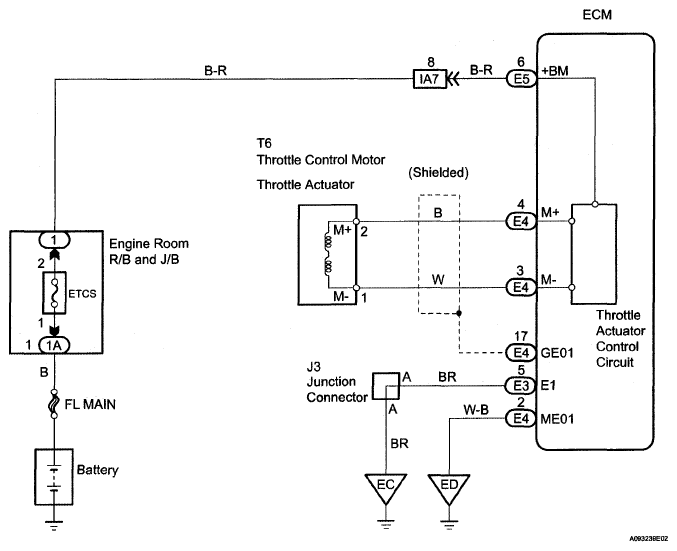

Fig 1: Throttle Actuator Control Motor Current Range/Performance (Fail Safe) - Wiring Diagram
G05232845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
