Seat Position Sensor: Components

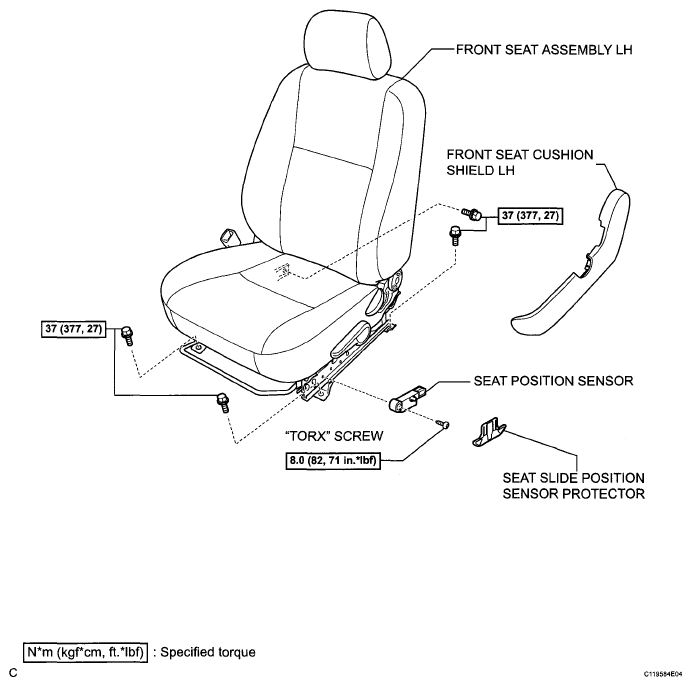

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications
G05236656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
