Automatic Transmission/Transaxle
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transmission/Transaxle

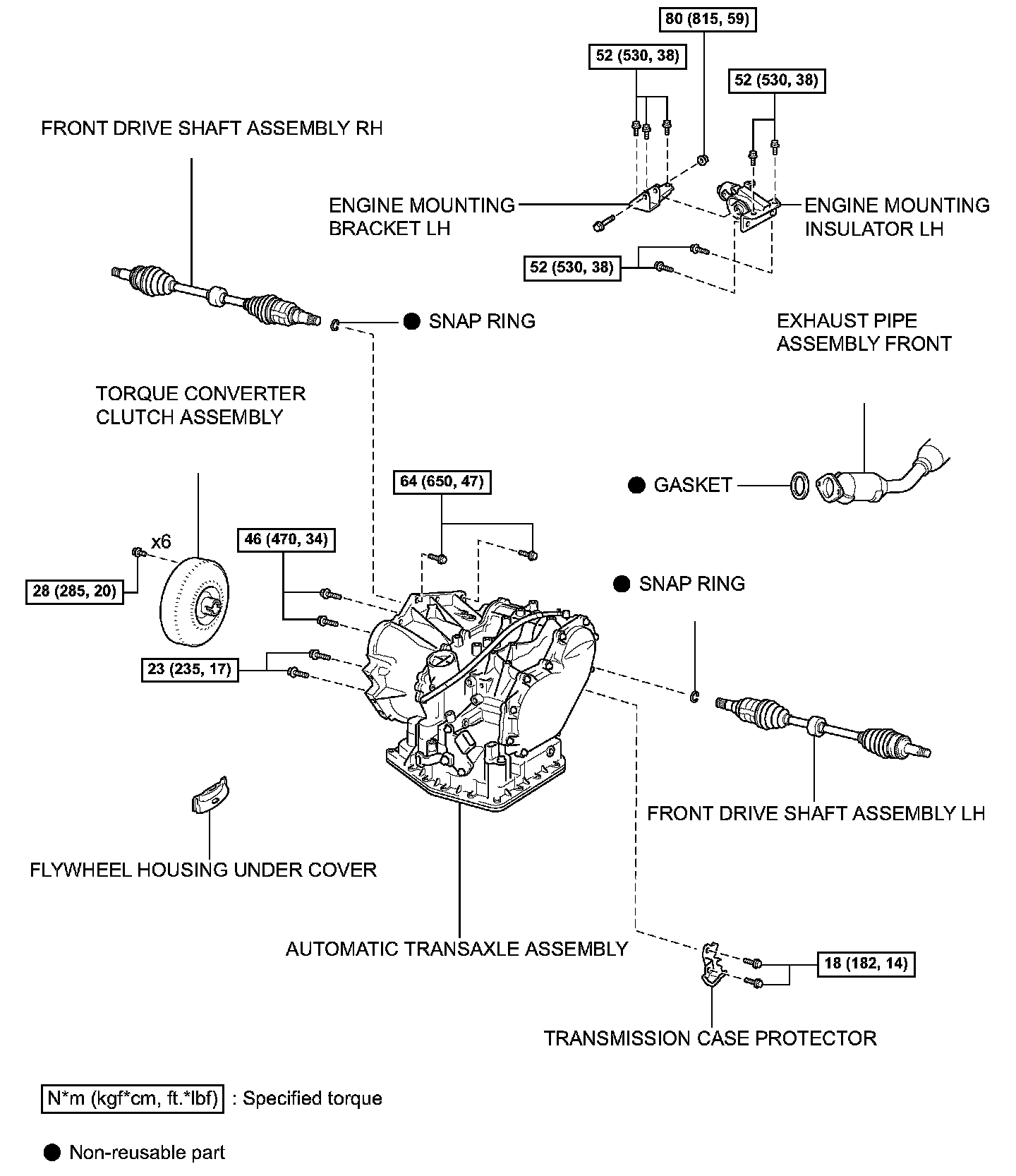

COMPONENTS (Part 1):

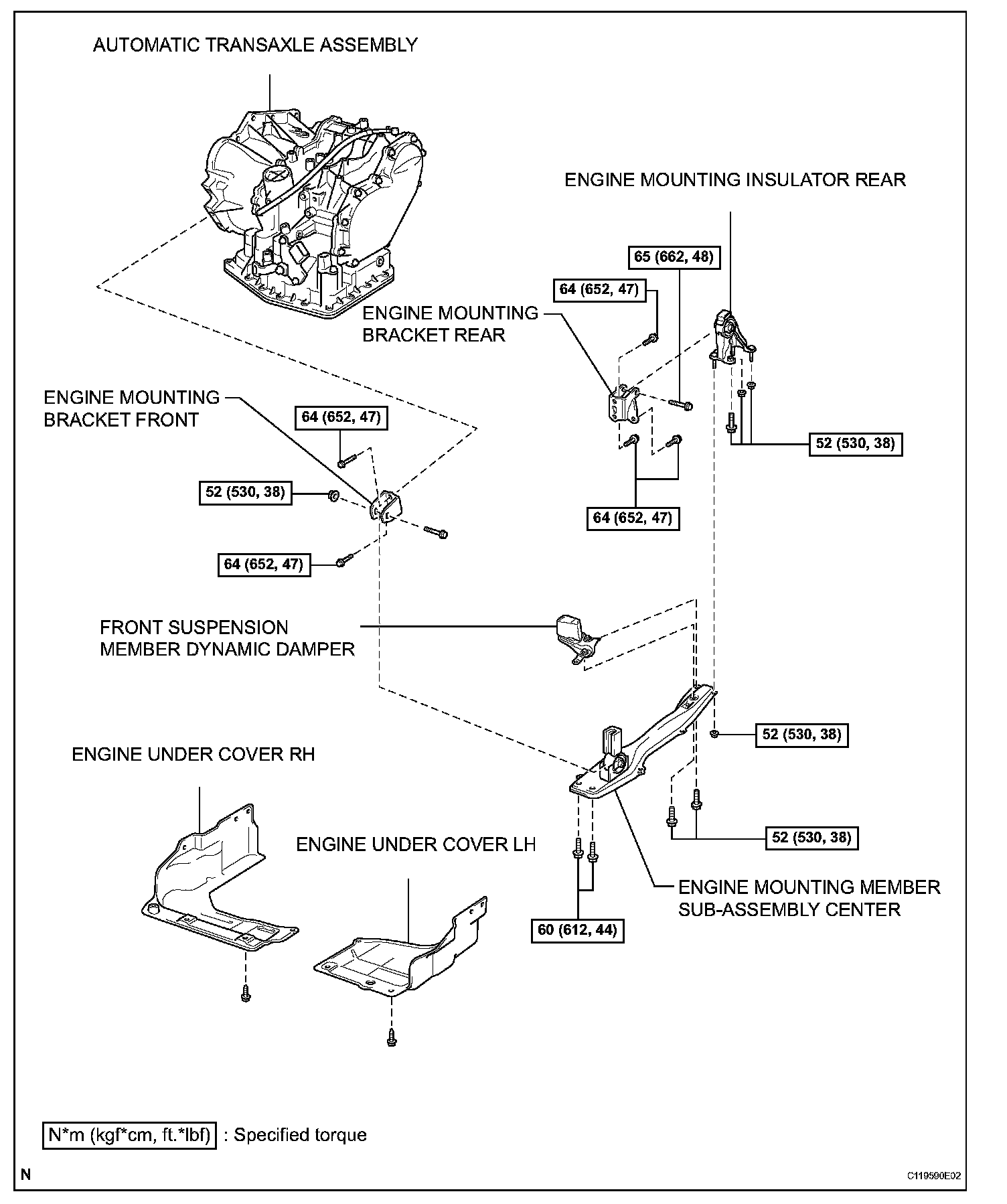

COMPONENTS (Part 2):

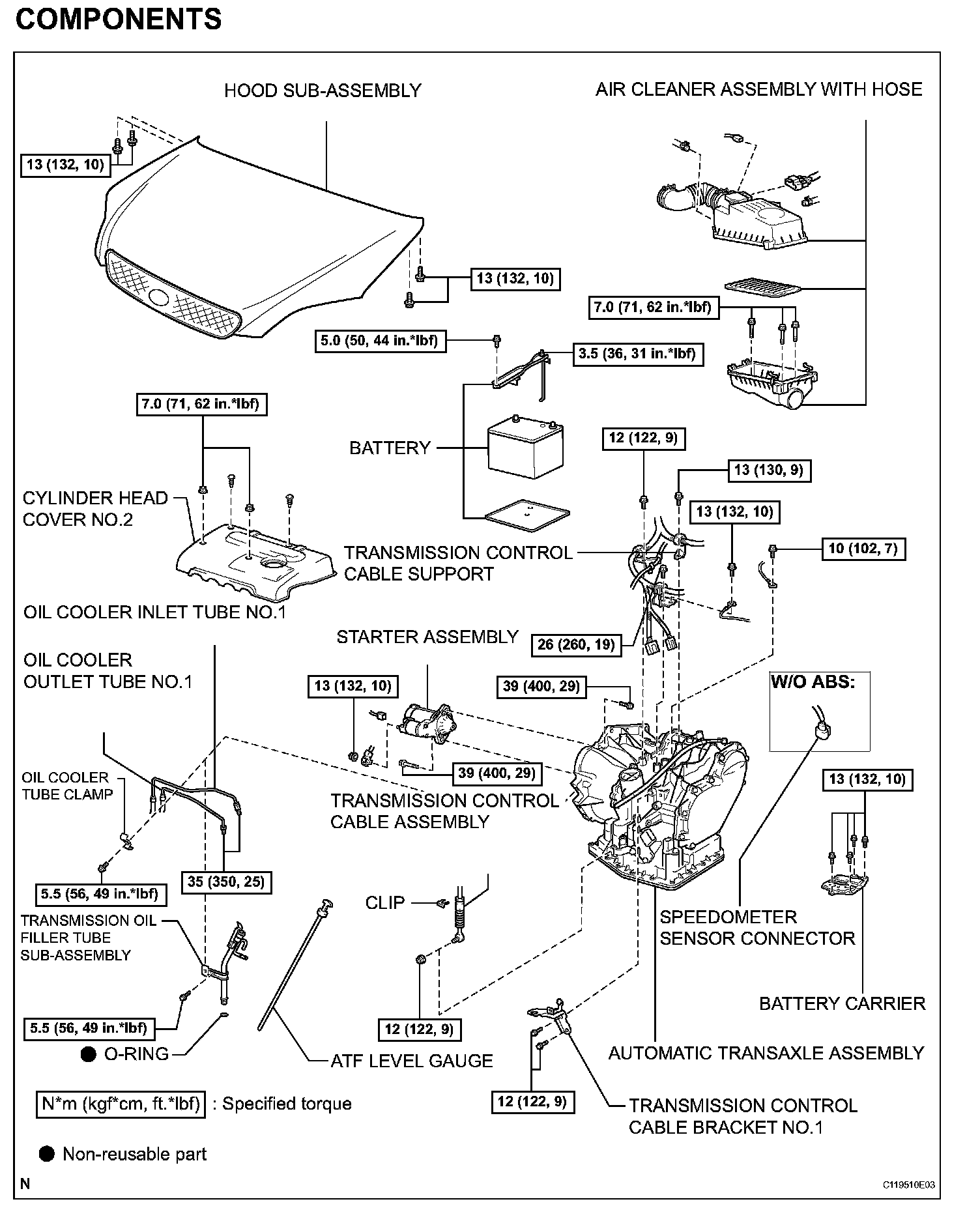

COMPONENTS (Part 3):
