Fail-Safe Chart

FAIL-SAFE CHART

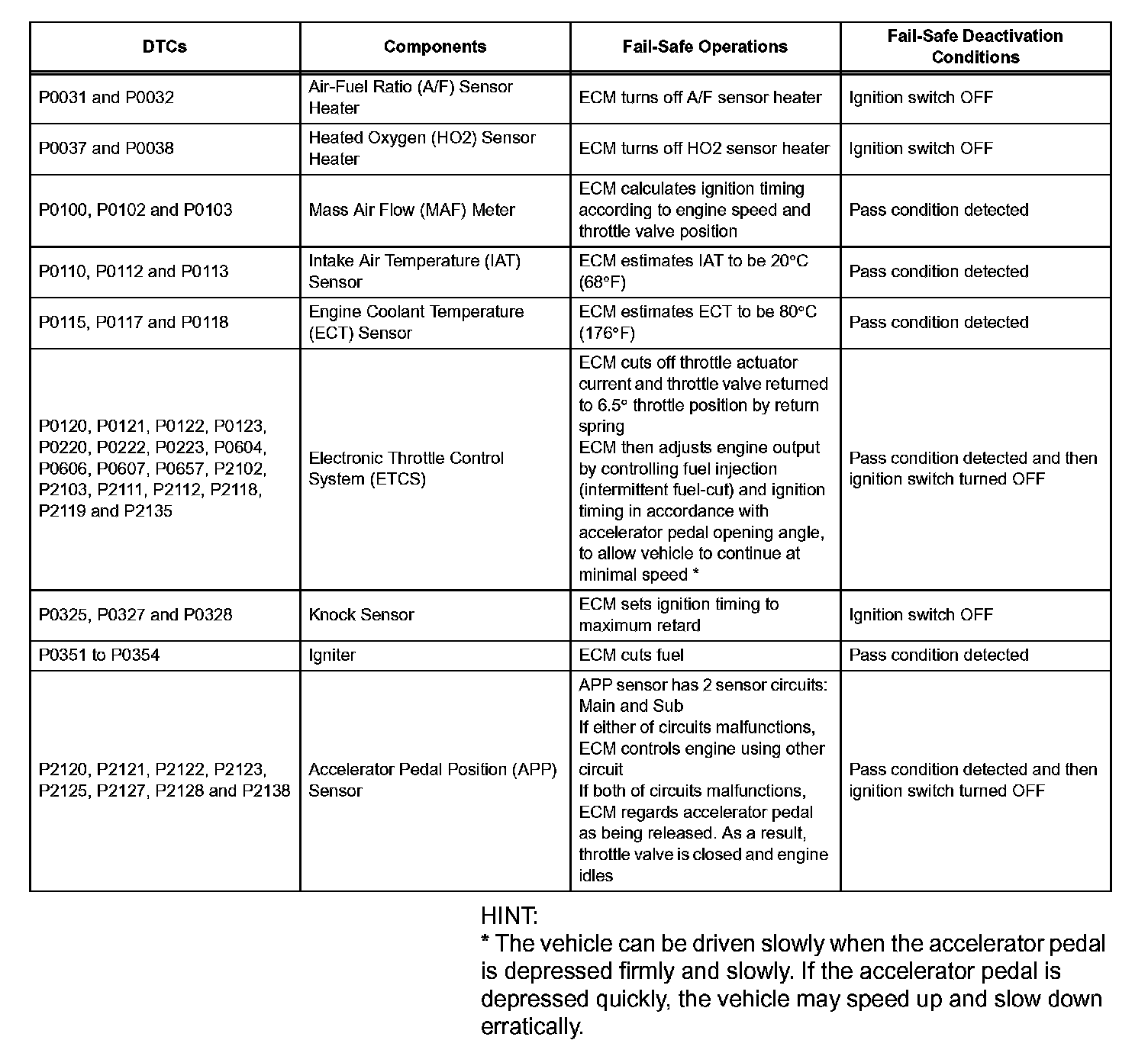

Fail-Safe Chart:




If any of the given DTCs are set, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily.
