LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Toyota
>>
2007
>>
Matrix L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Torque
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Torque

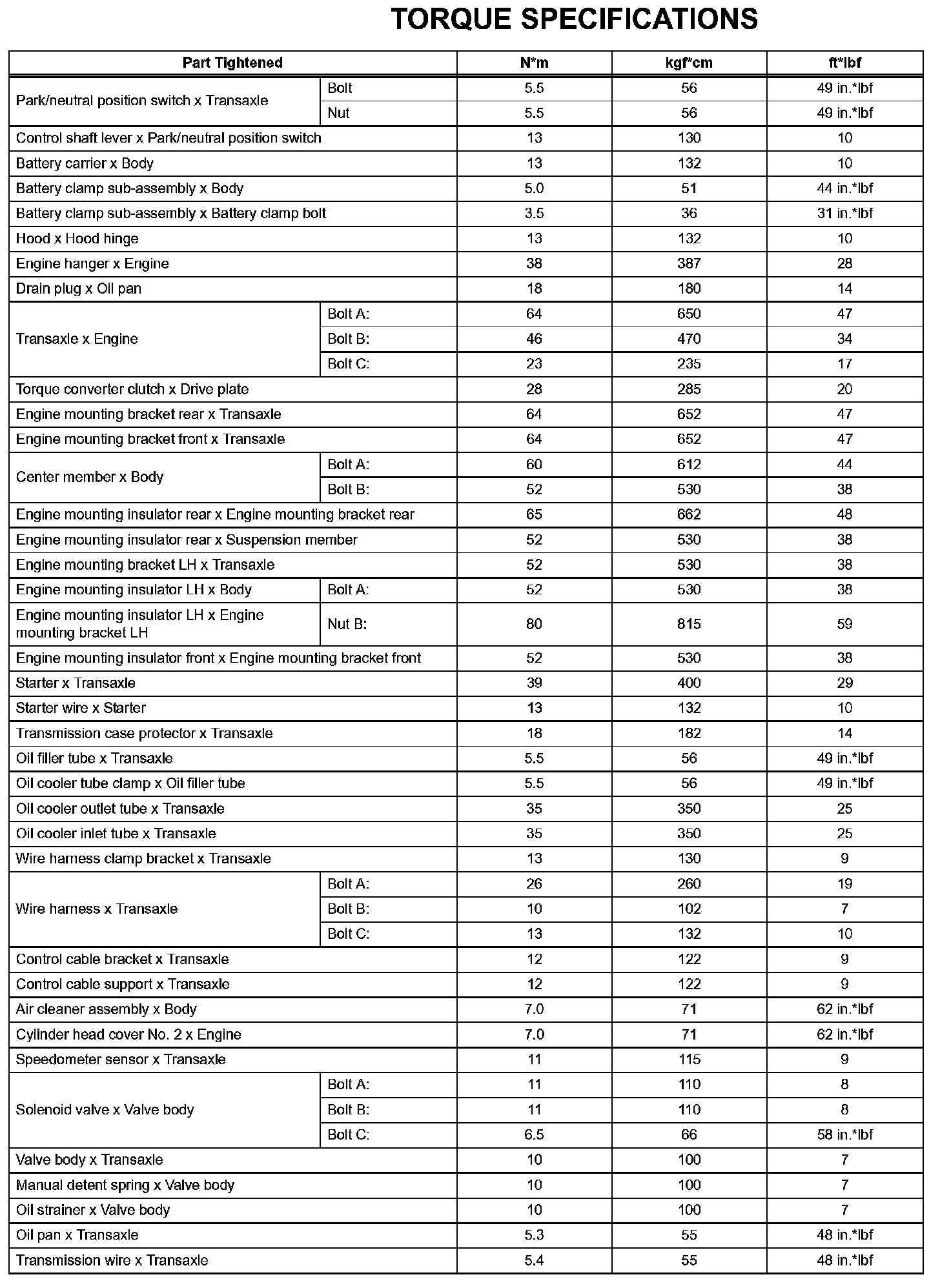

Automatic Transaxle - Torque Specifications (Part 1):
Automatic Transaxle - Torque Specifications (Part 2):
