Service Data

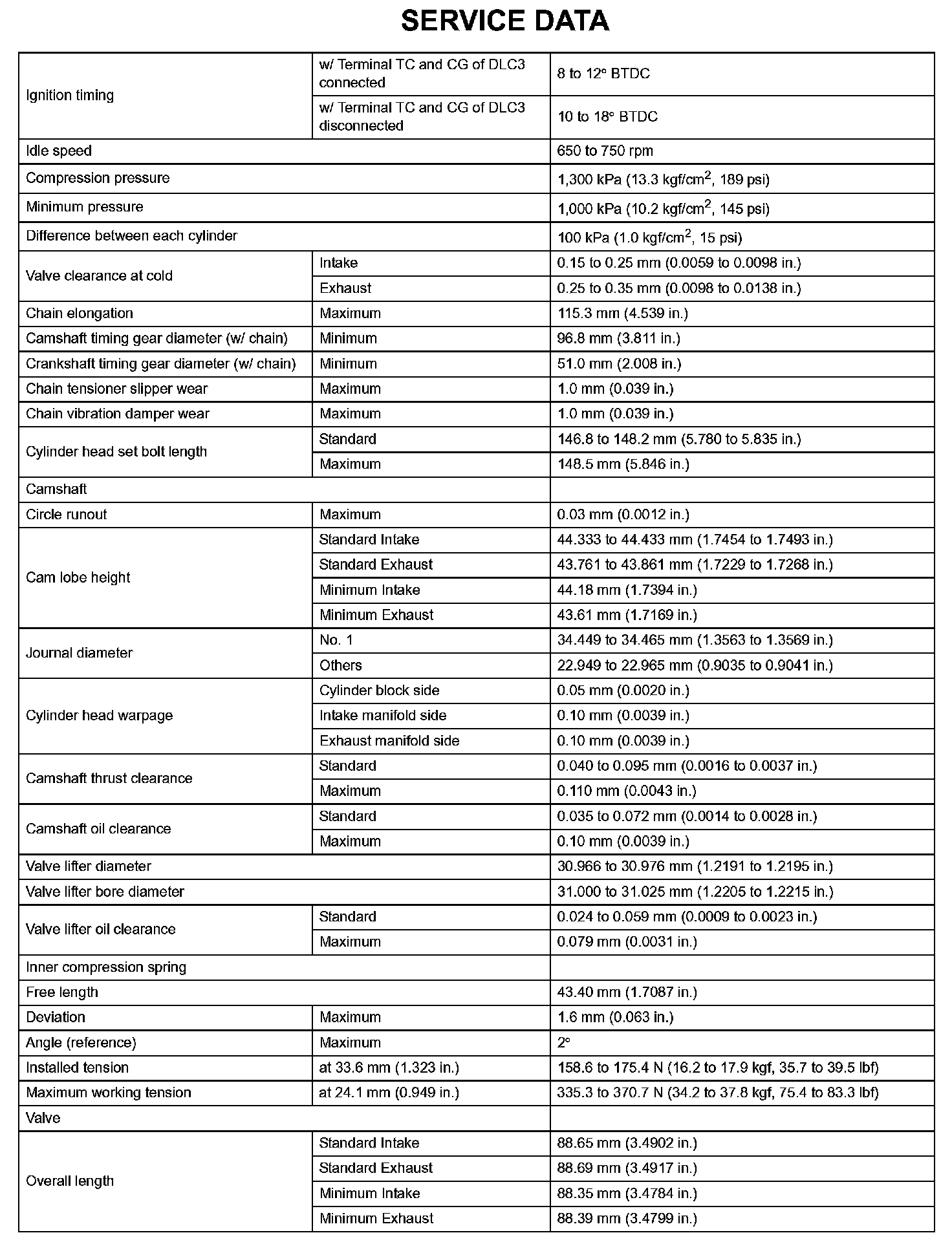

Engine Mechanical - Service Data (Part 1):

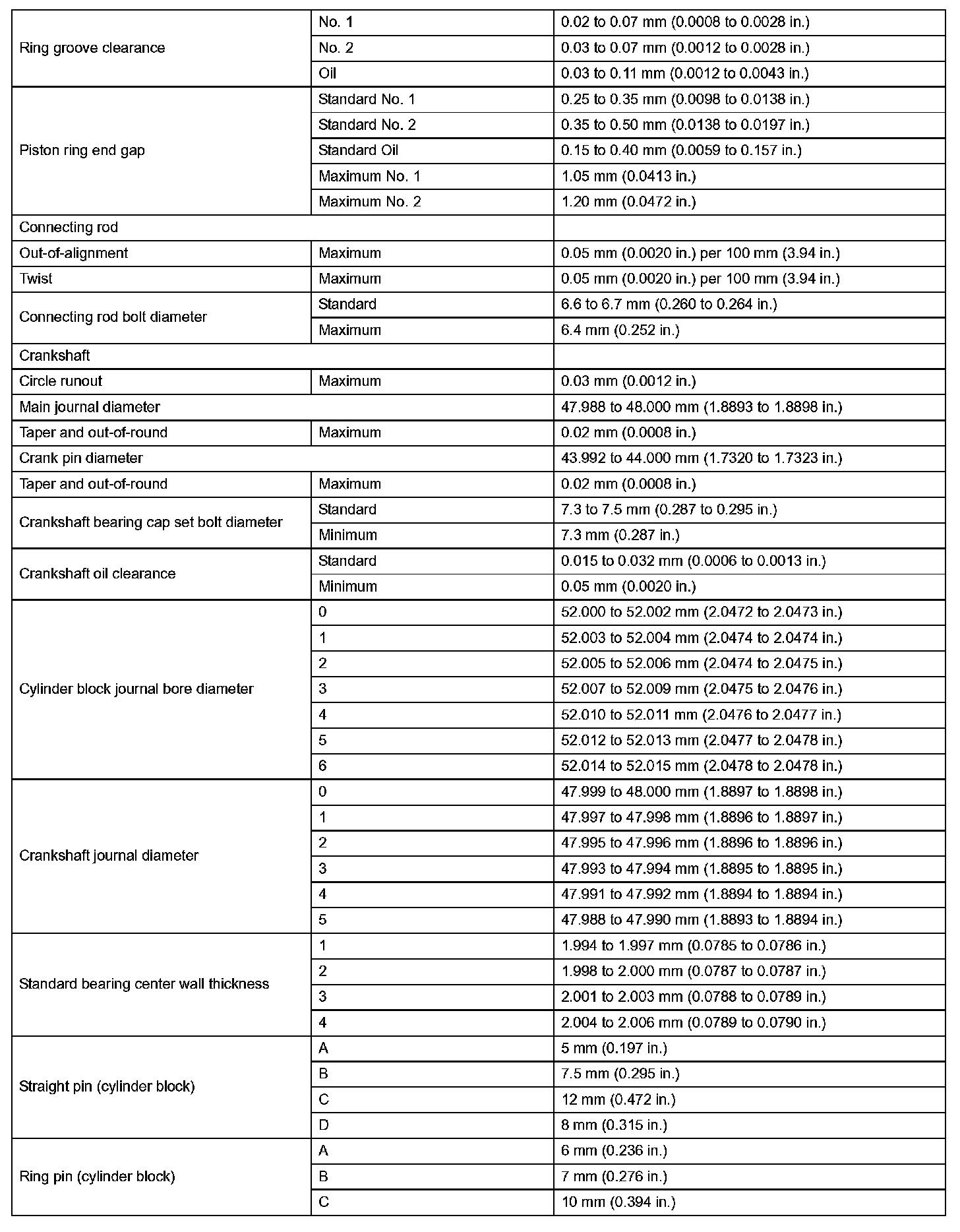

Engine Mechanical - Service Data (Part 2):

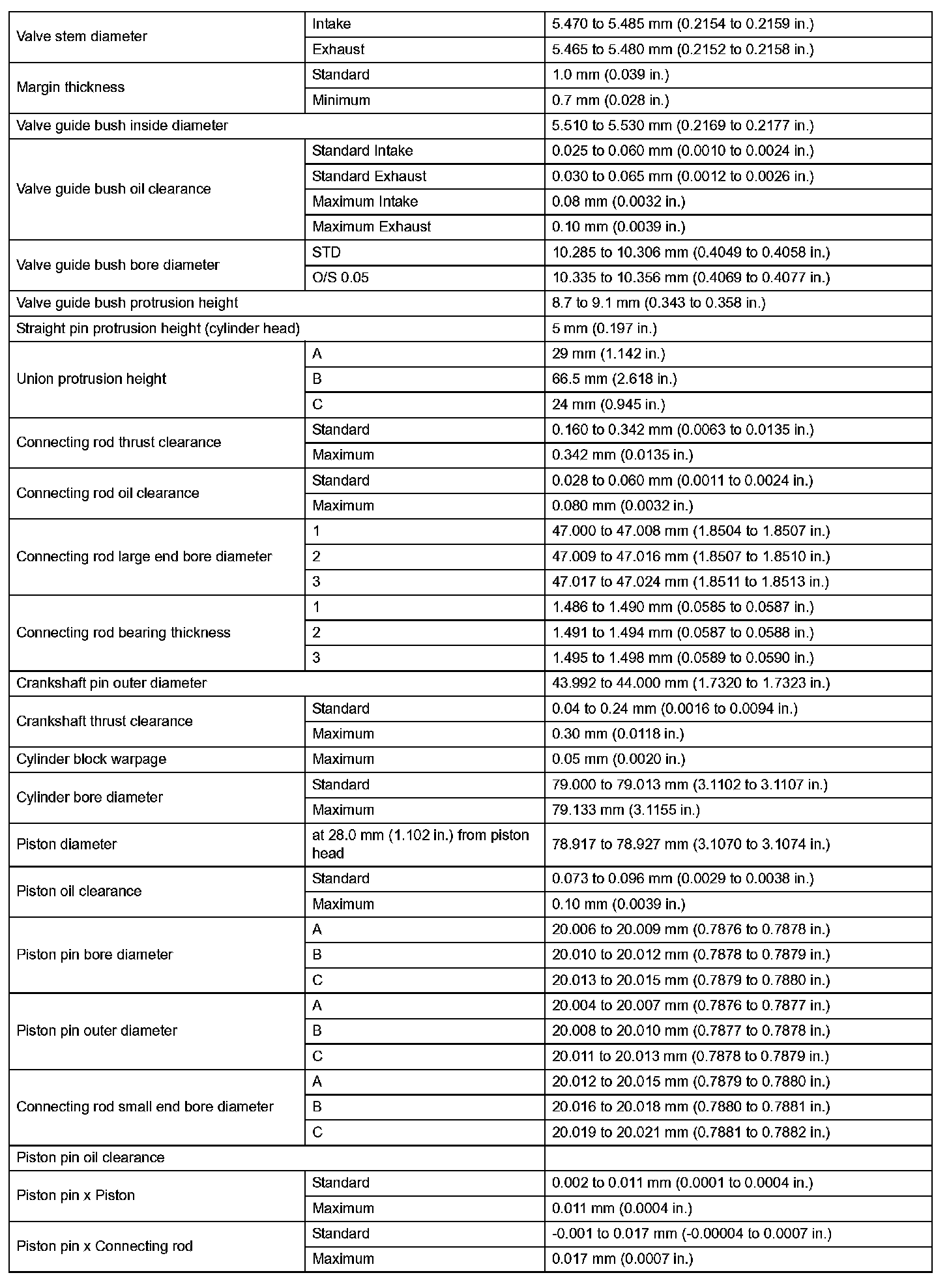

Engine Mechanical - Service Data (Part 3):
