Torque

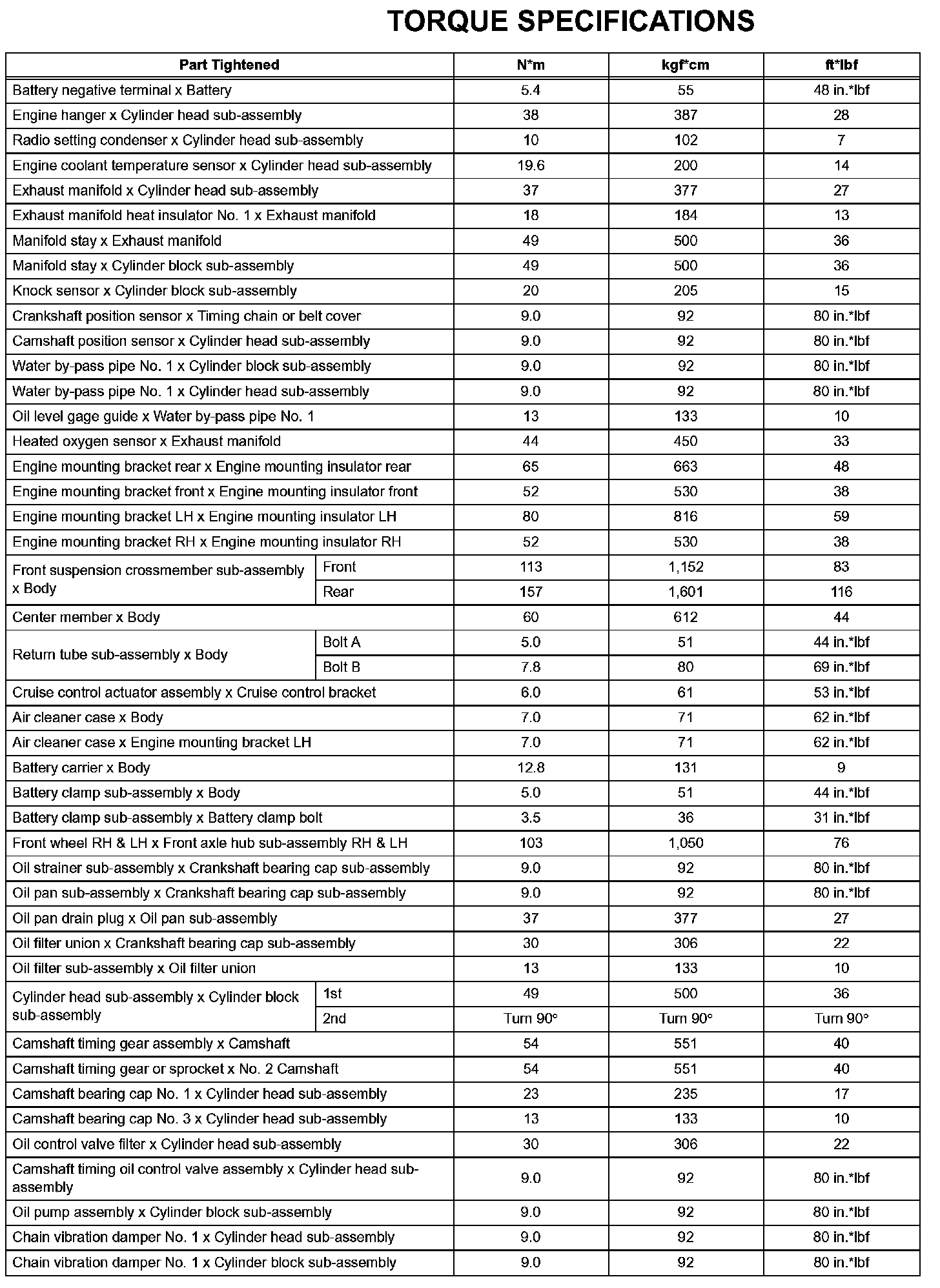

Engine Mechanical - Torque Specifications (Part 1):

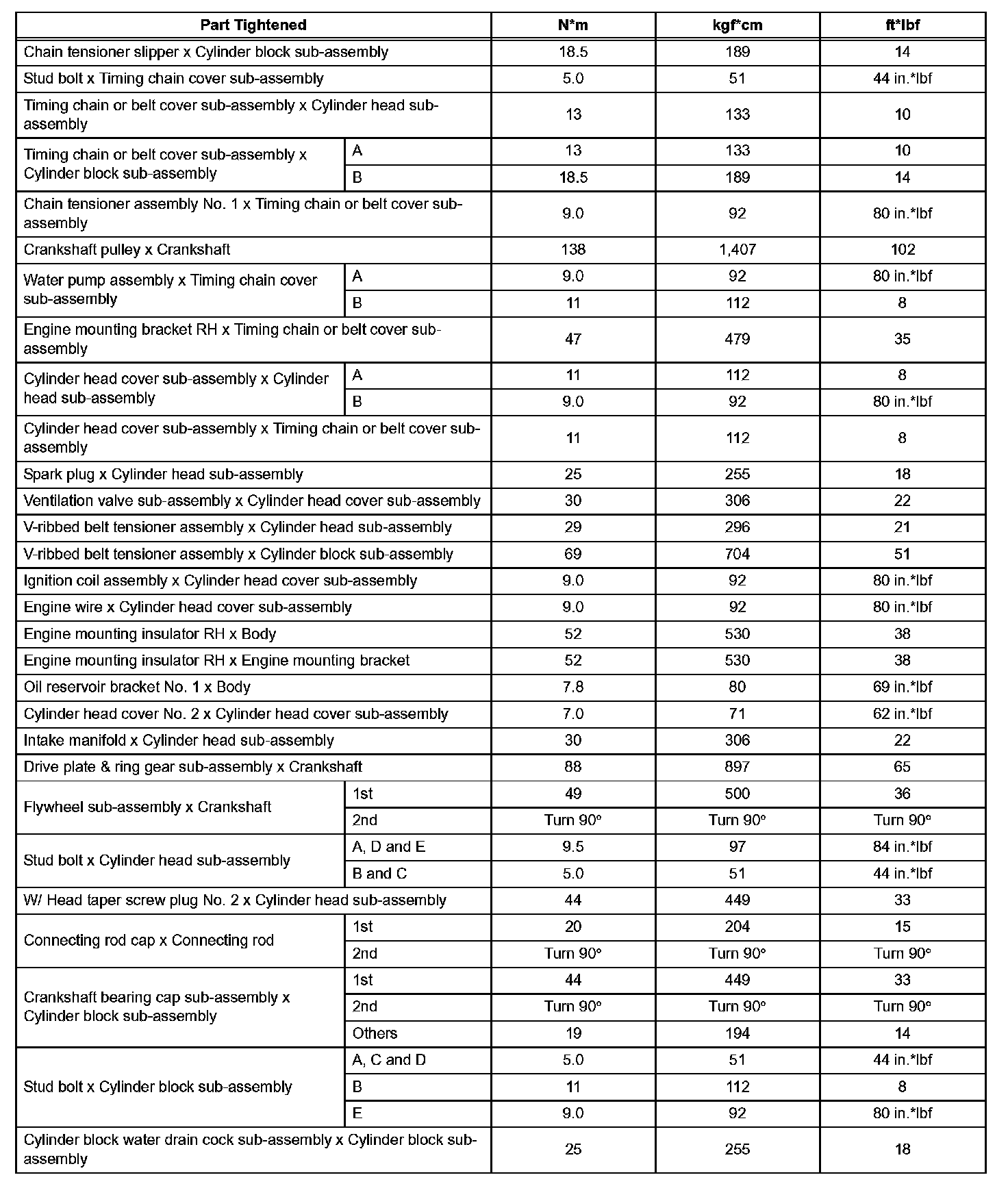

Engine Mechanical - Torque Specifications (Part 2):
