Power Window Master Switch

POWER WINDOW MASTER SWITCH

INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

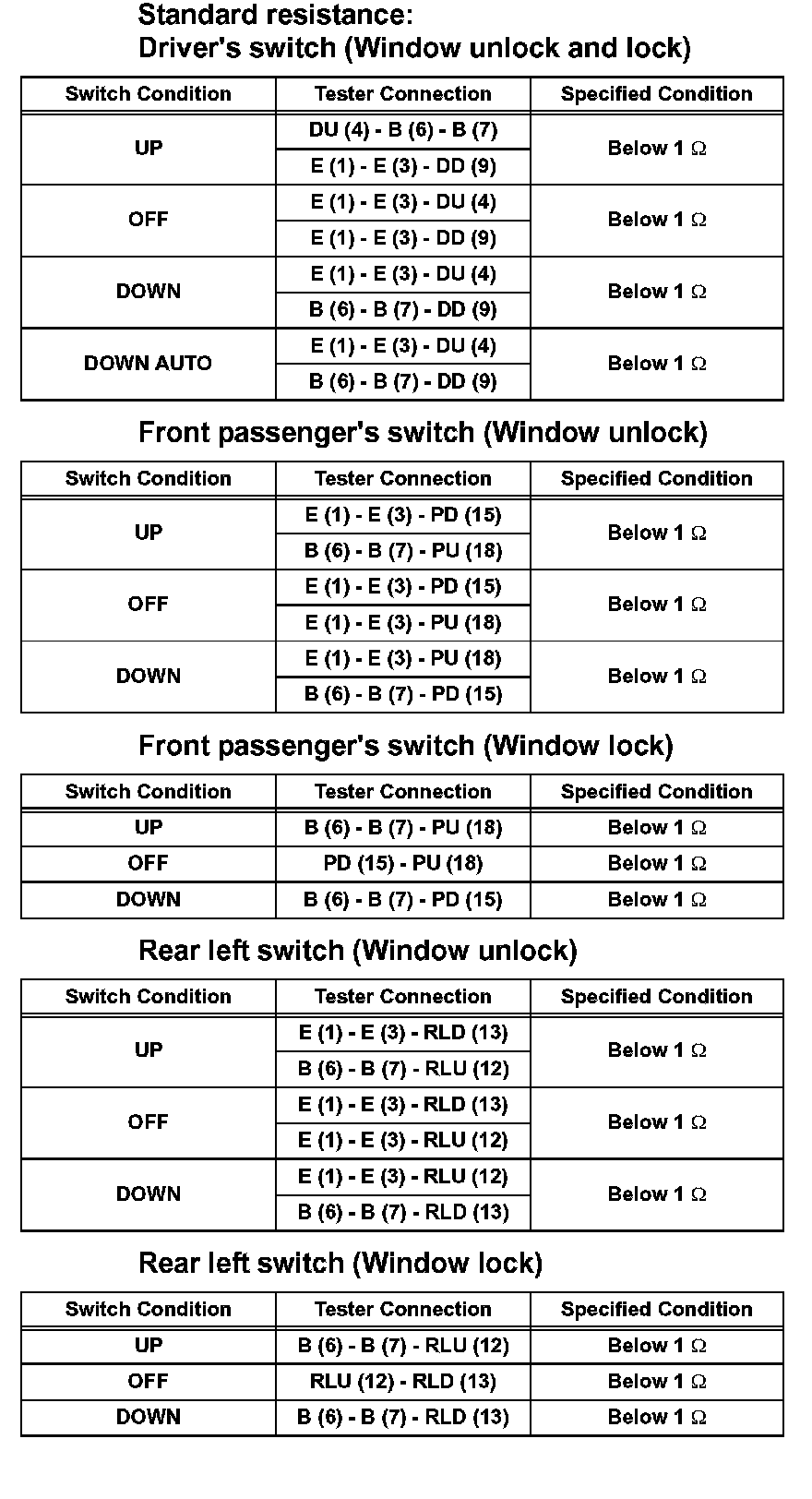

a. Measure the resistance of the master switch.









If the result is not as specified, replace the master switch.

b. Inspect the master switch illumination.









If the result is not as specified, replace the master switch.
