Ground Point: Notes

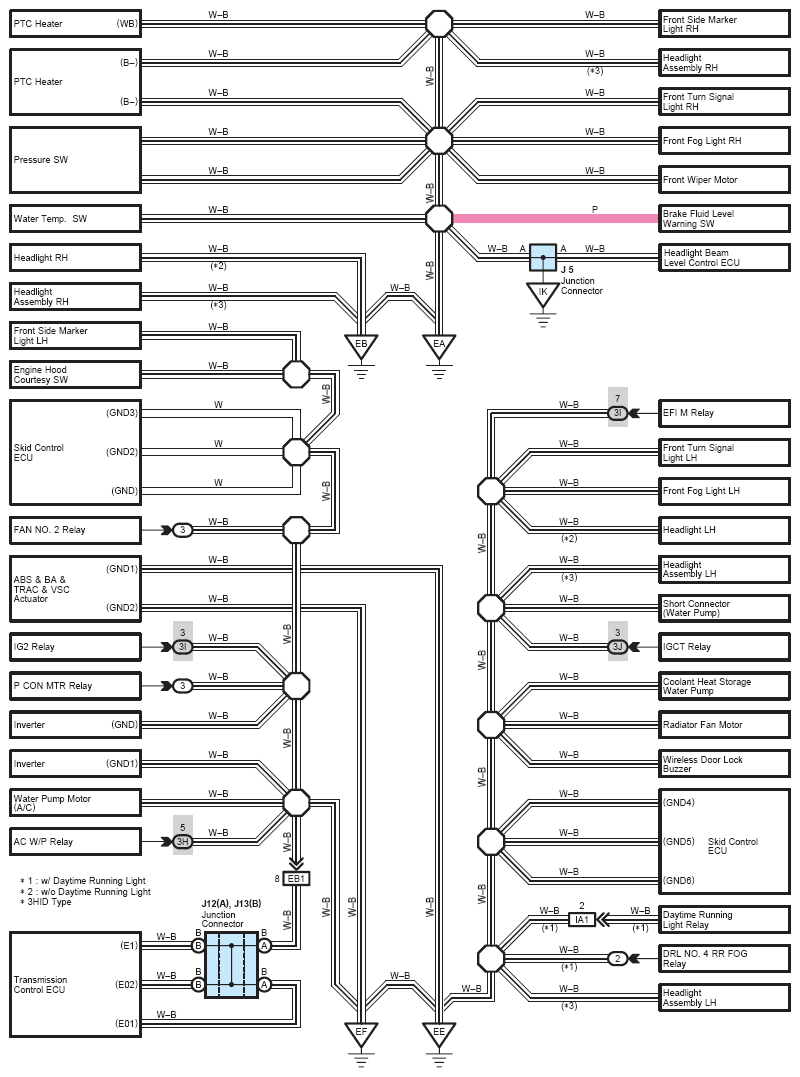

Fig 1: Ground Point System Wiring Diagram (1 Of 4)
G08866184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

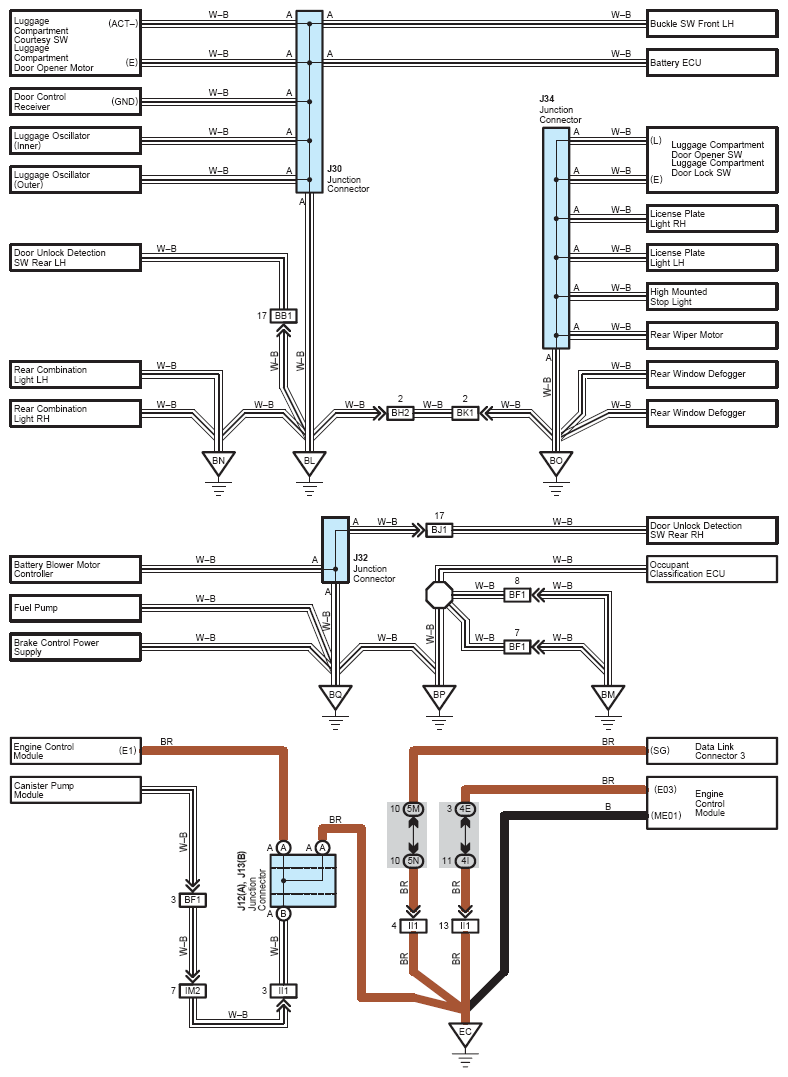

Fig 2: Ground Point System Wiring Diagram (2 Of 4)
G08866185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

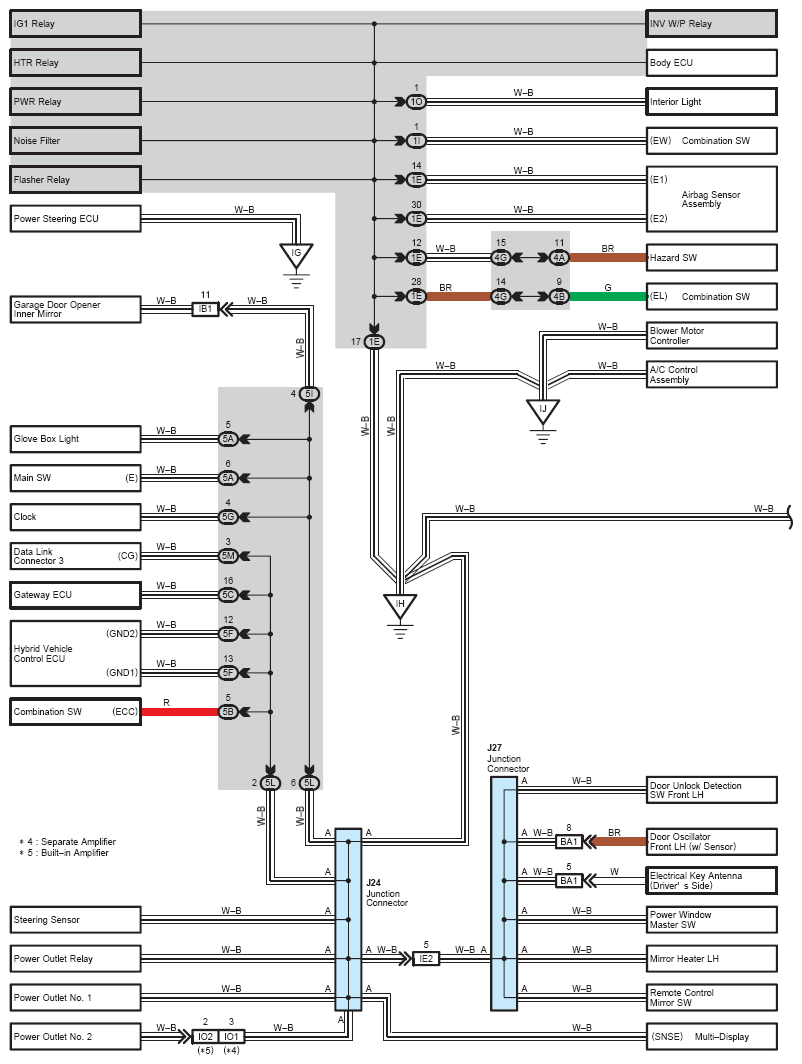

Fig 3: Ground Point System Wiring Diagram (3 Of 4)
G08866186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

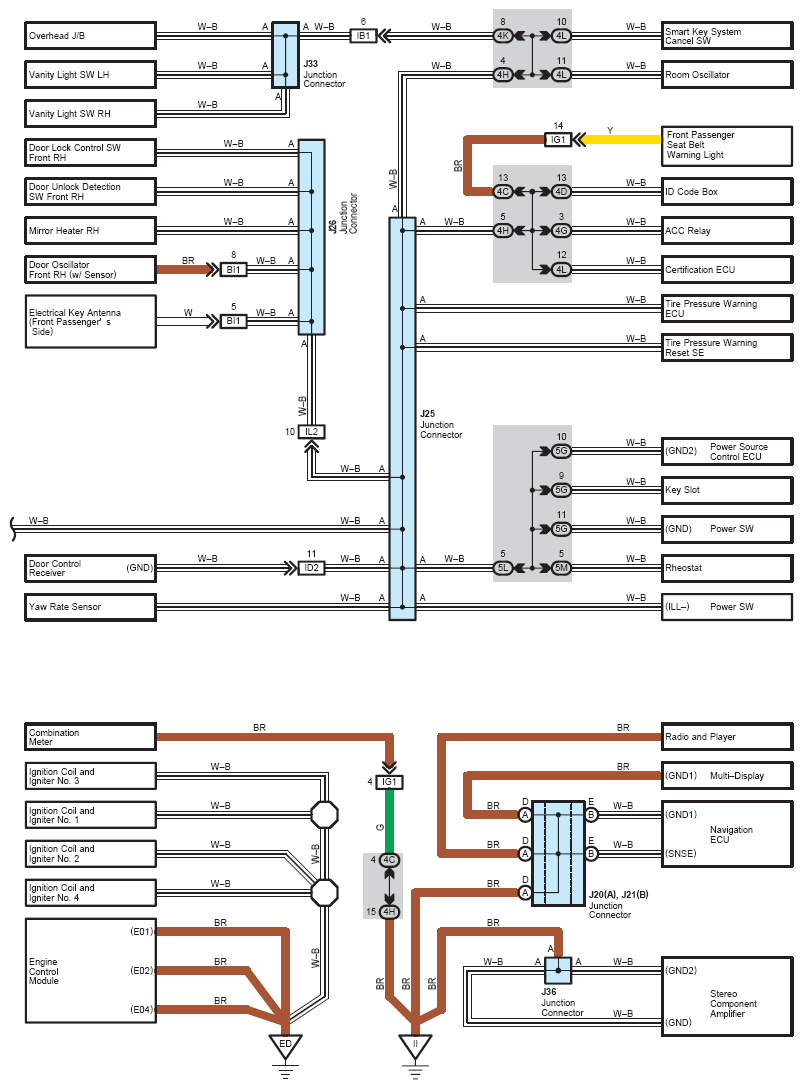

Fig 4: Ground Point System Wiring Diagram (4 Of 4)
G08866187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
