Rear Seat Outer Belt Assembly: Components

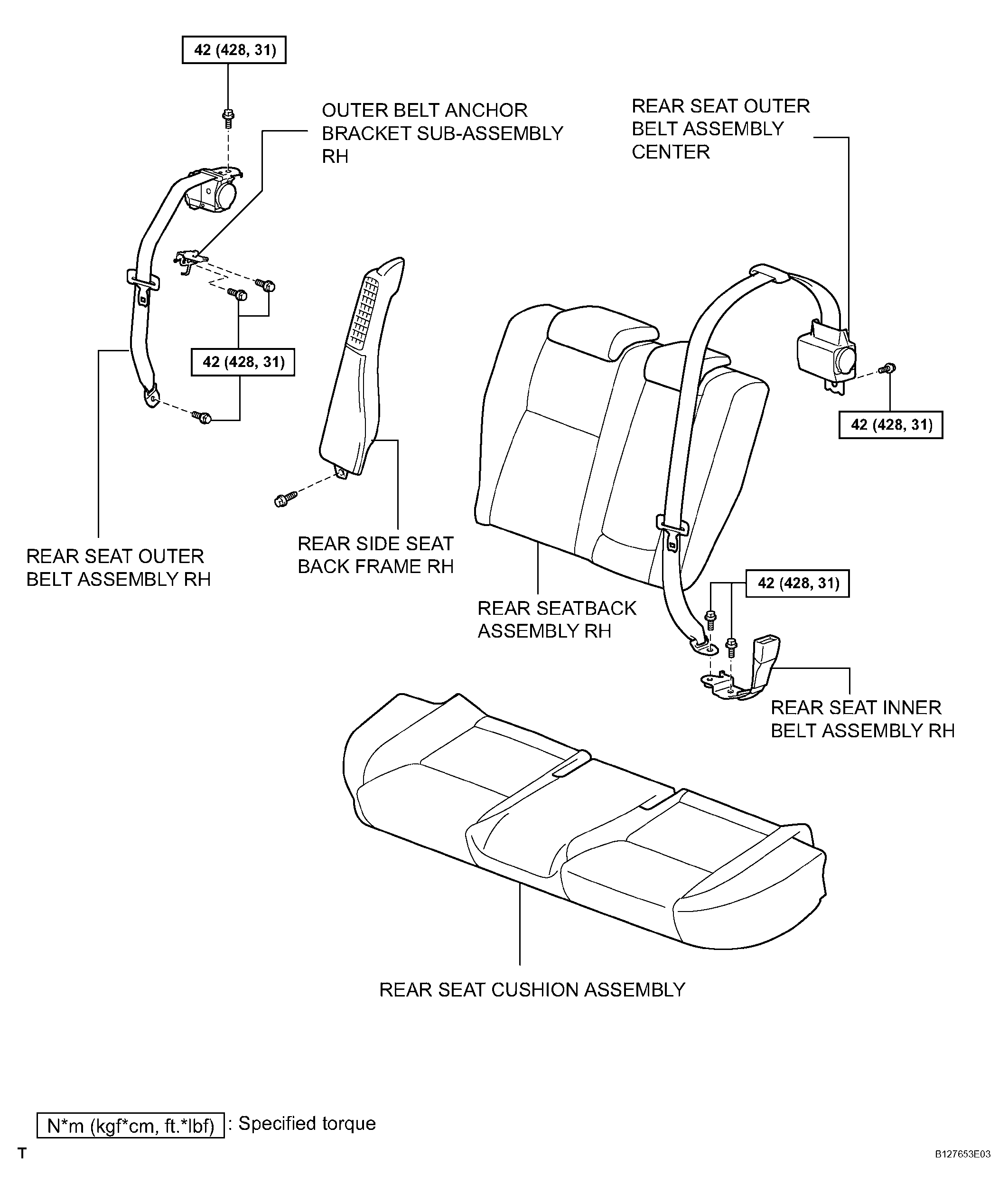

Fig 1: Rear Seat Outer Belt Replacement Components With Torque Specifications
G04475622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Seat Outer Belt Components (1 Of 2)
G04475623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Seat Outer Belt Components (2 Of 2)
G04475624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
