Front Stabilizer Bar: Installation

1. Insert the front stabilizer bar from the right side of the vehicle.

1. Install the bush to the outer side of the bush stopper on the stabilizer bar.
   NOTE:

   • Place the cutout of the stabilizer bush facing the rear side.
   • Ensure the right and left deviation of the stabilizer bar is 5 mm (0.20 in.) or less.

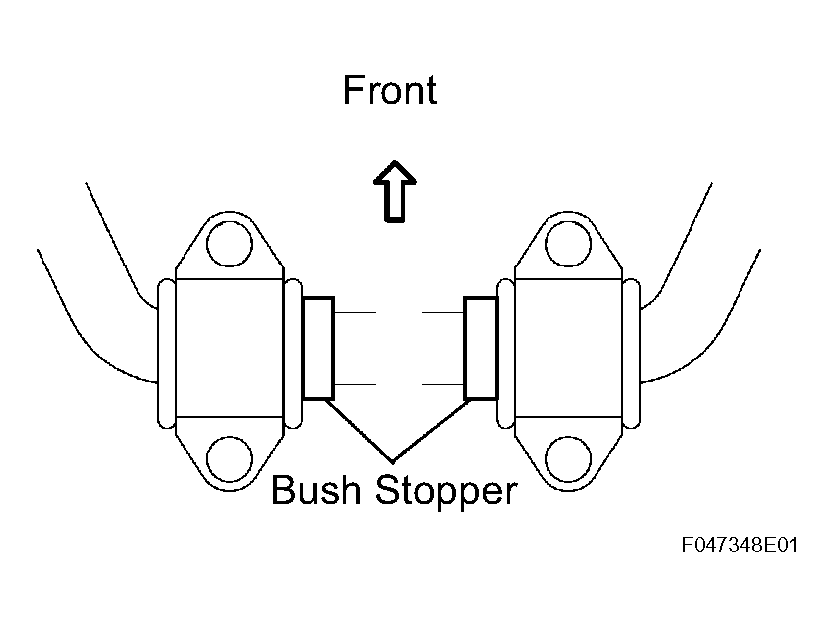

Fig 1: Identifying Bush Stopper

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 stabilizer bracket the front suspension crossmember with the 2 bolts.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

HINT:

Install the RH side following the same procedures as the LH side.

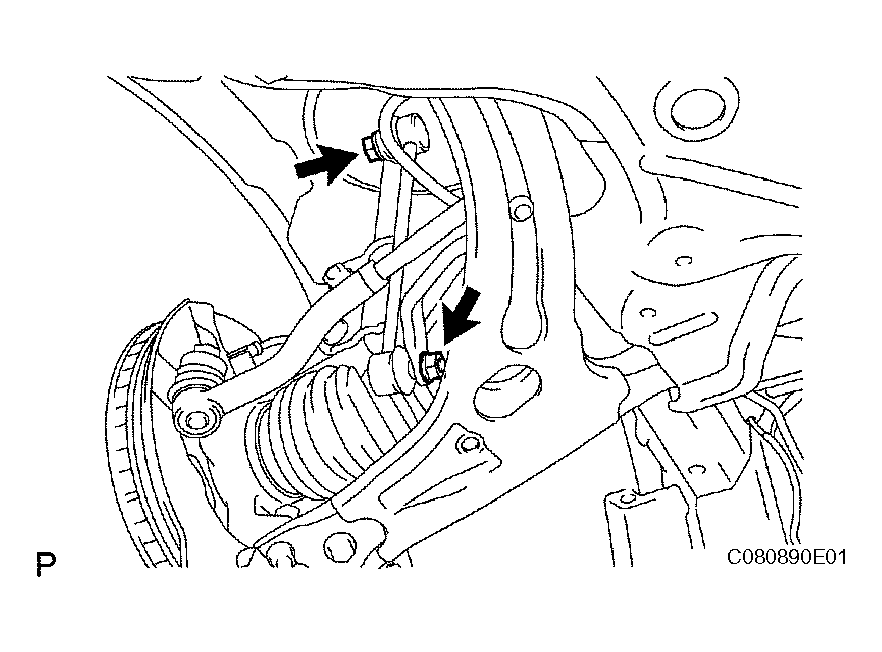

1. Install the front stabilizer link LH with the 2 nuts.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   Use a 6 mm hexagon wrench to hold the stud if the ball joint turns together with the nut.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Inspect and adjust the front wheel alignment (see FRONT WHEEL ALIGNMENT ).
