Rear Stabilizer Bar: Components

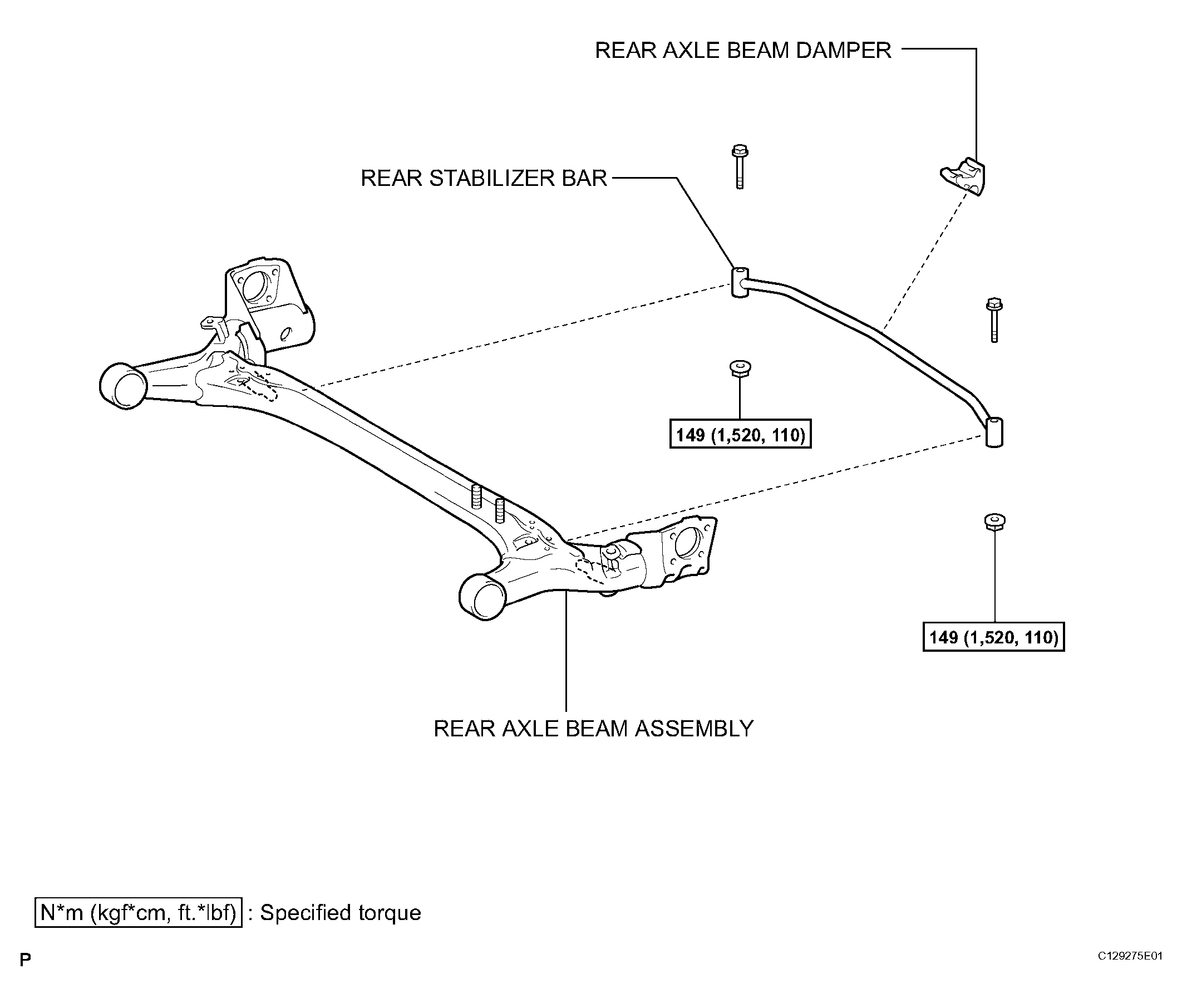

Fig 1: Rear Stabilizer Bar Replacement Components -- With Torque Specifications
G04474475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
