Rear Stabilizer Bar: Installation

INSTALL REAR STABILIZER BAR
1. Install the stabilizer bar so that the mark position faces towards the vehicle's rear right. Hold the bolts and tighten the nuts.
  Torque: 149 N*m (1,520 kgf*cm, 110 ft.*lbf)

  Fig 1: Installing Rear Stabilizer Bar
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE BEAM DAMPER

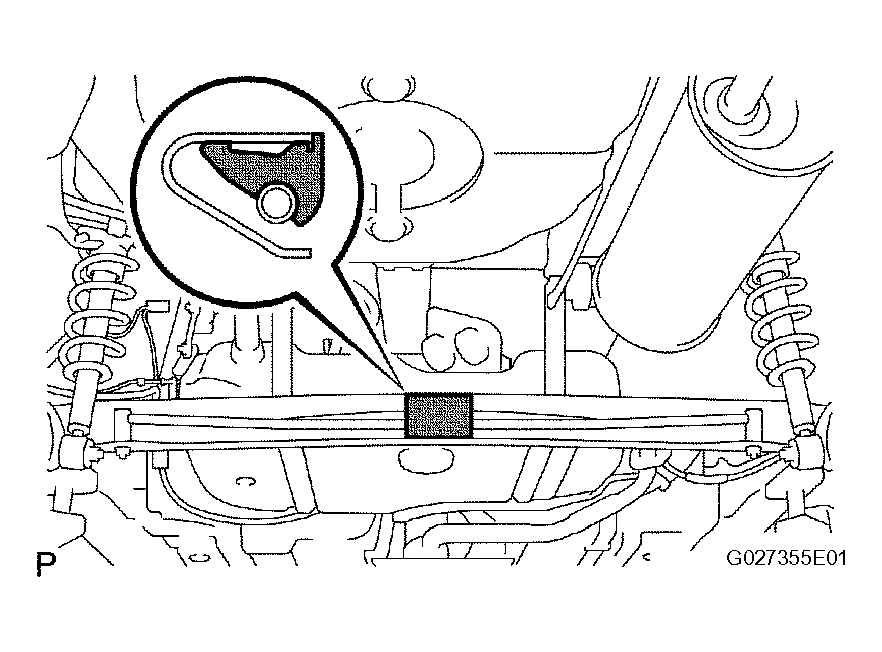

1. Install the rear axle beam damper to the center of the rear axle beam.

  Fig 2: Installing Rear Axle Beam Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
