Front Shock Absorber With Coil Spring: Components

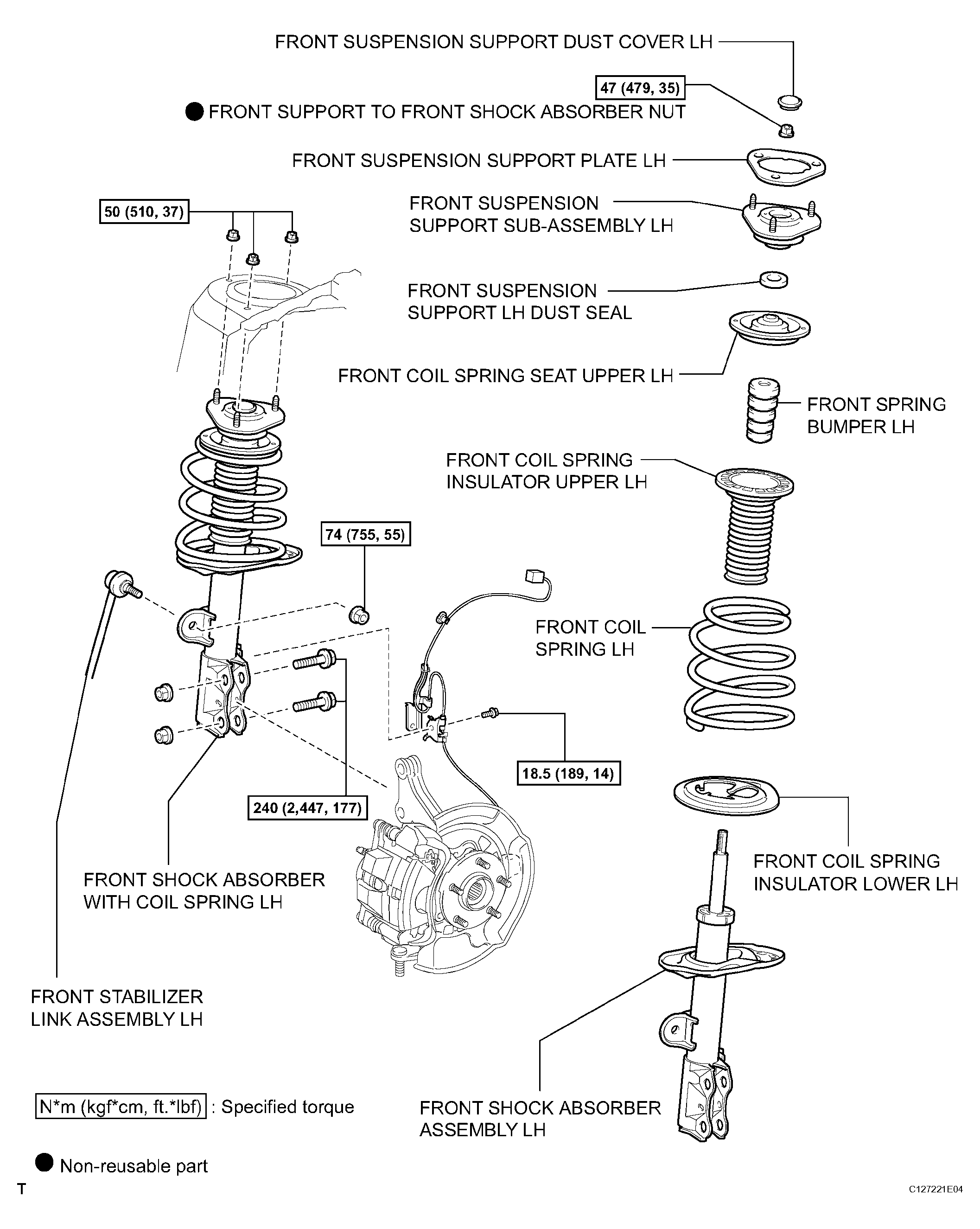

Fig 1: Front Shock Absorber With Coil Spring Replacement Components With Torque Specifications
G04489177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
