Rear Coil Spring: Components

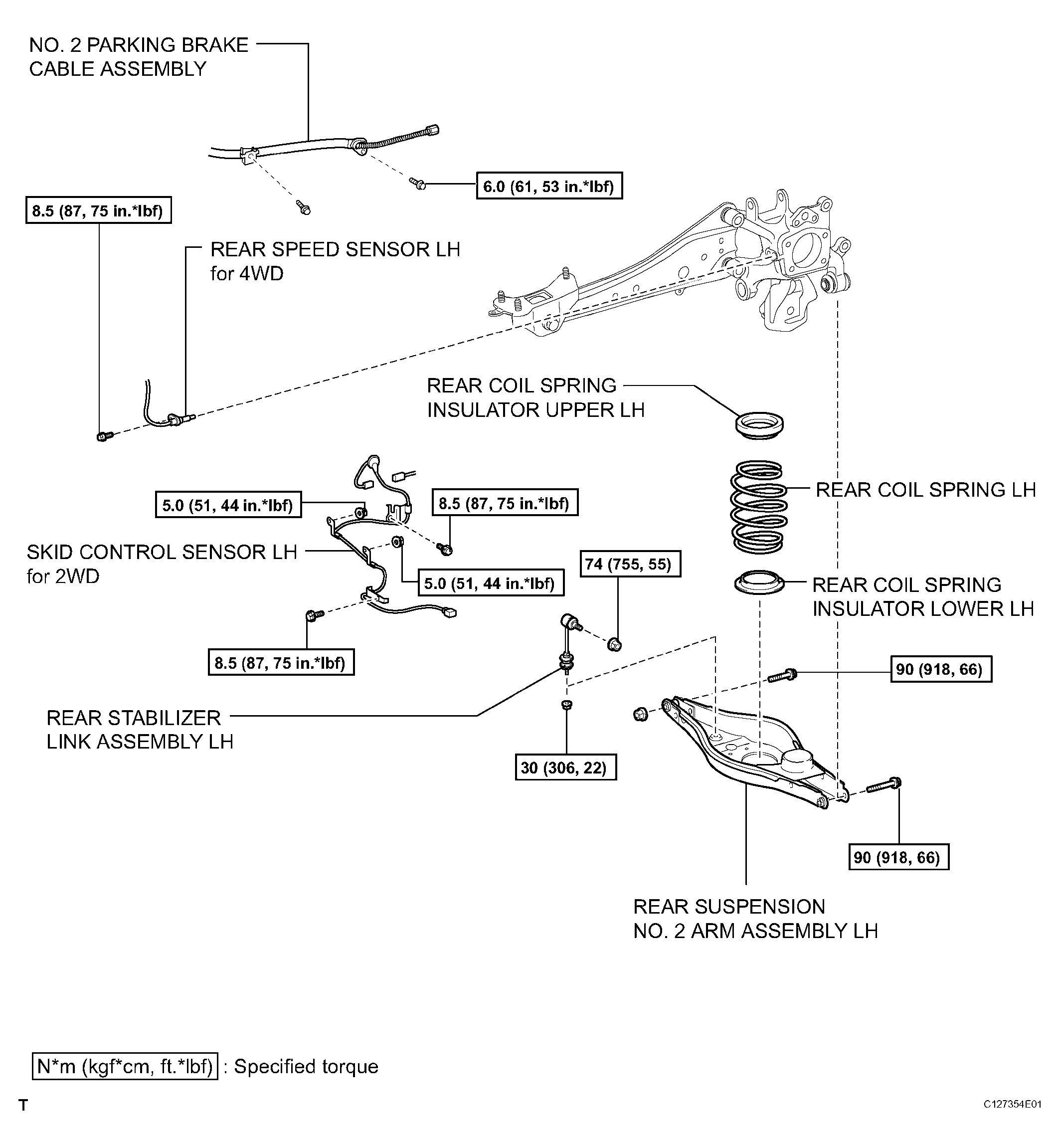

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications
G04489226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
