Rear Trailing Arm: Components

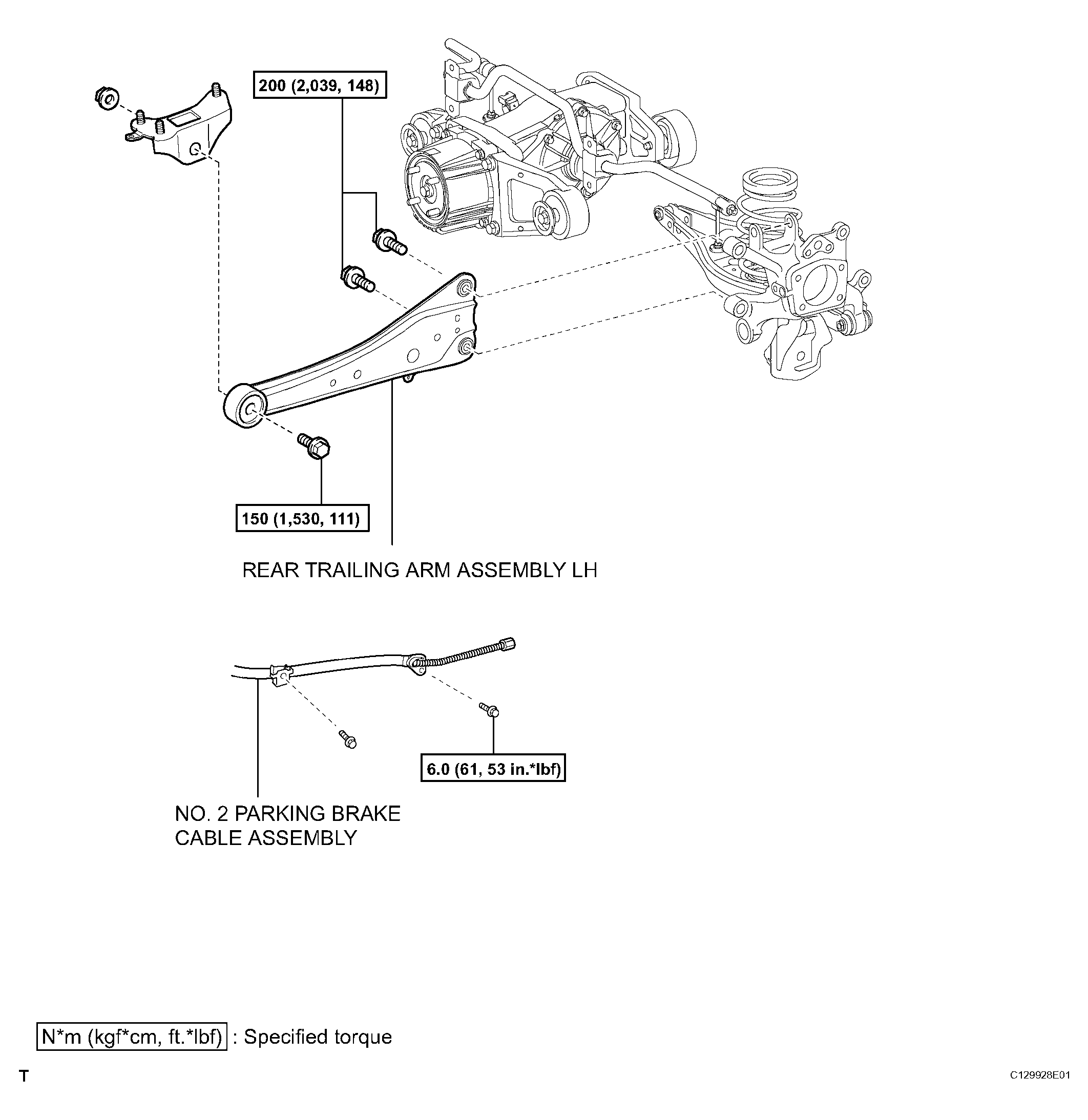

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications
G04489255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
