Ignition Coil: Removal

  1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
  2. REMOVE IGNITION COILS (WITH IGNITER)
    1. Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

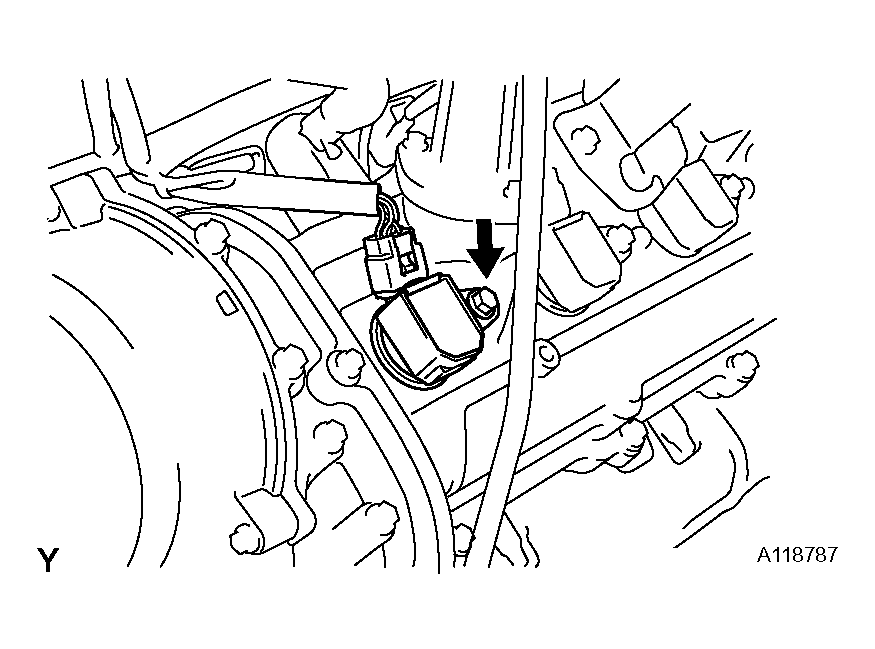

      Fig 1: Removing Bolt Pulling Out Ignition Coil (With Igniter)
      G04507674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
