Parts Location

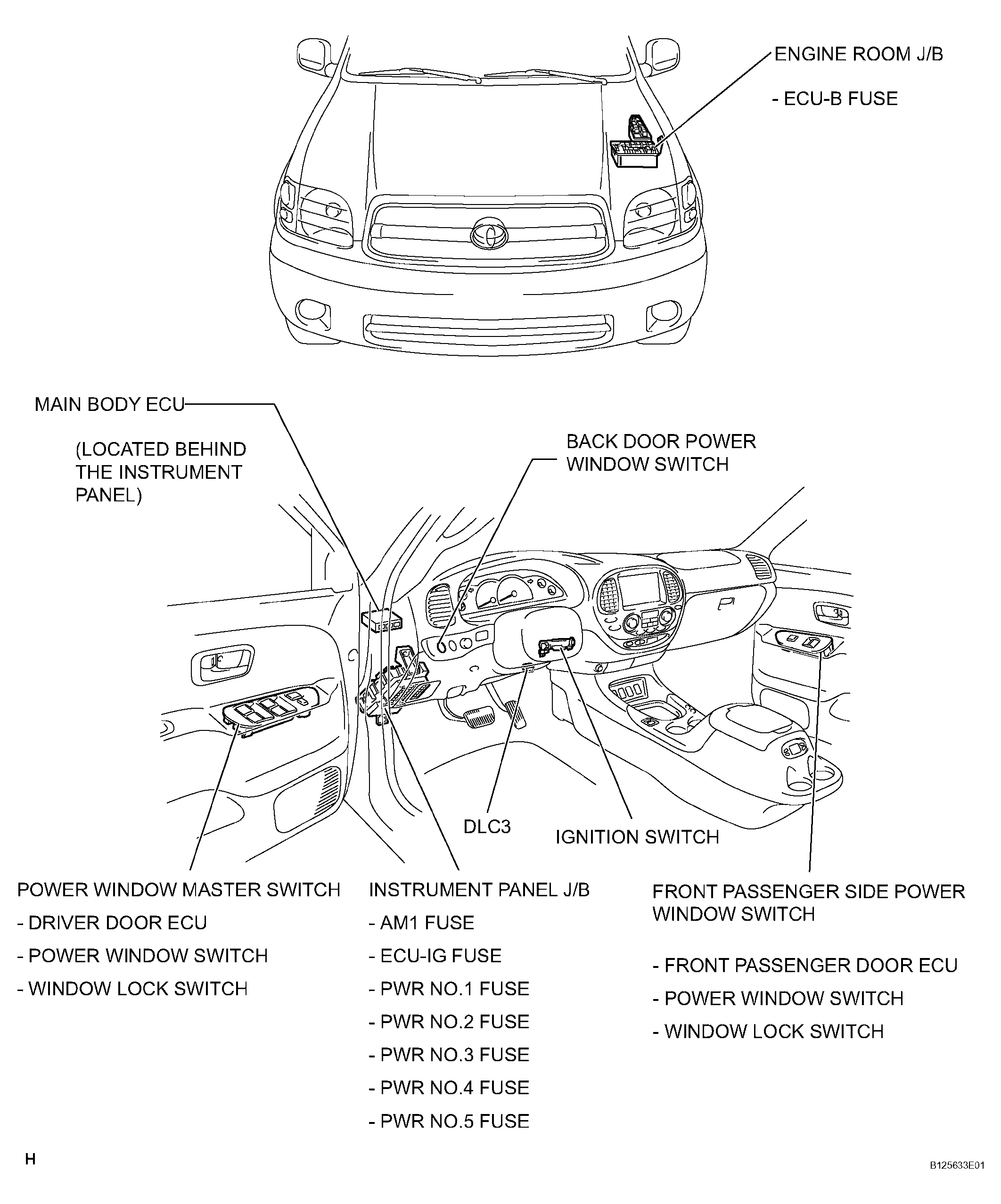

Fig 1: Locating Power Window Control System Parts (1 Of 3)
G04511011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

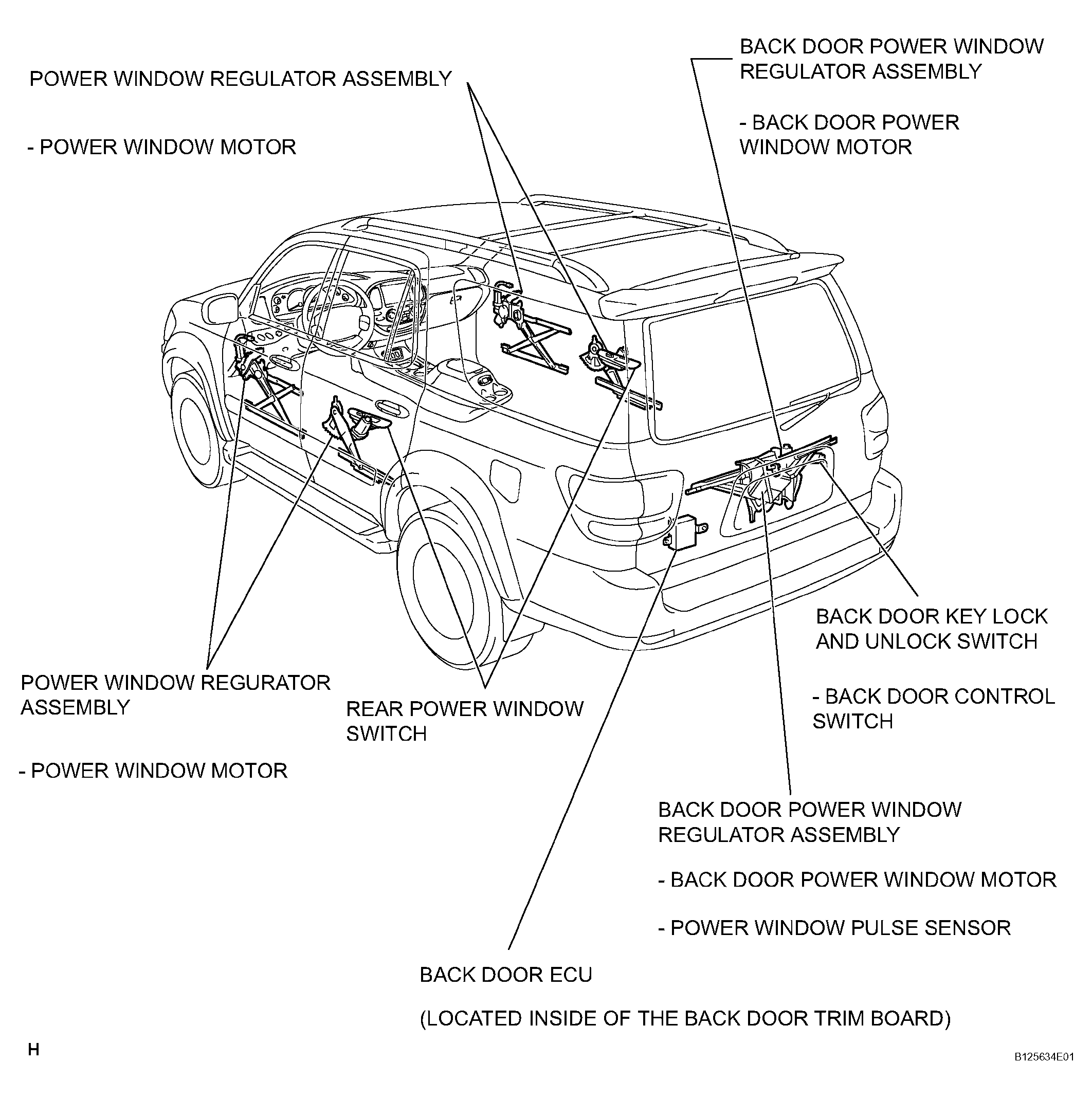

Fig 2: Locating Power Window Control System Parts (2 Of 3)
G04511012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

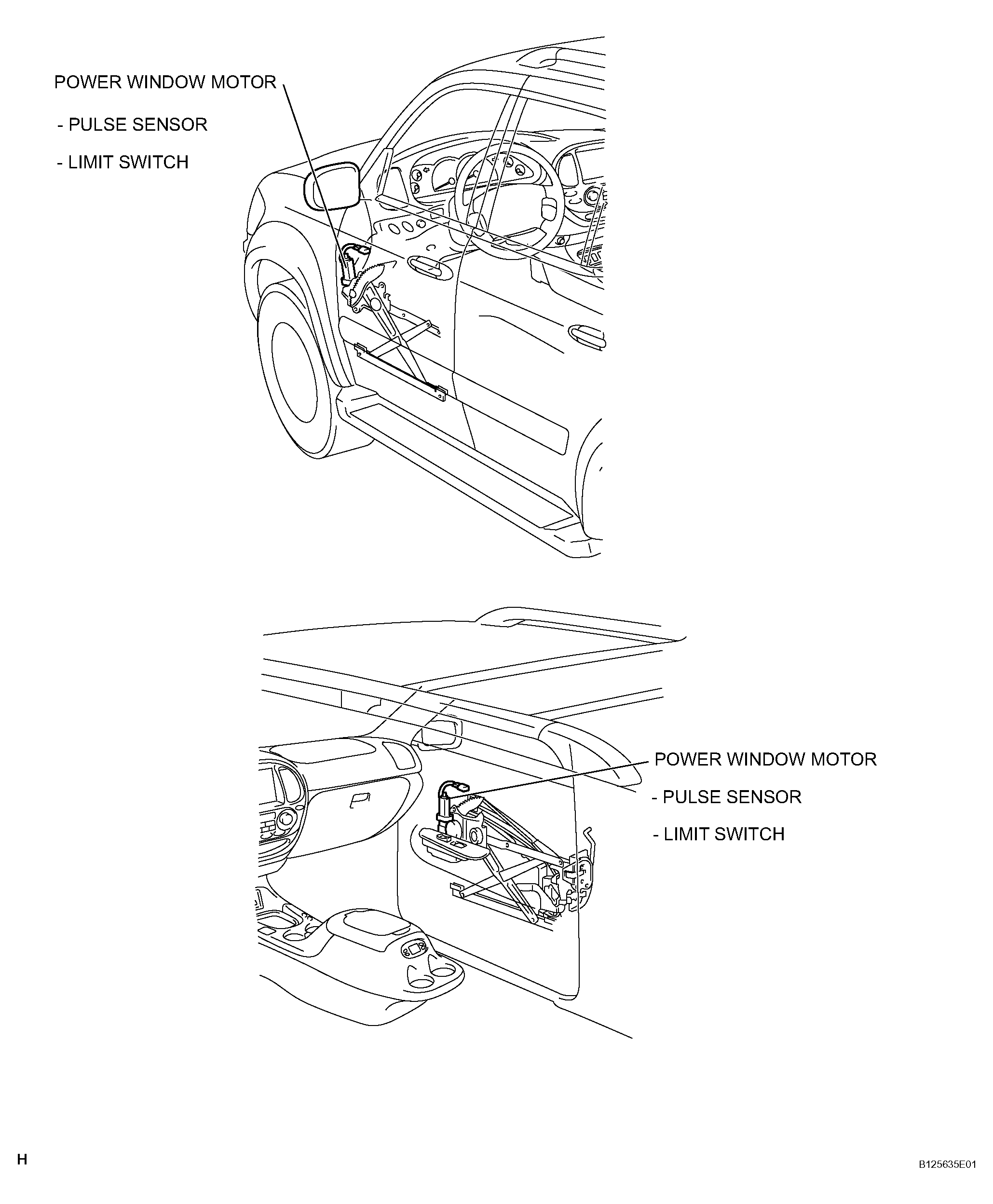

Fig 3: Locating Power Window Control System Parts (3 Of 3)
G04511013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
