Remote Control Mirror without Driving Position Memory: Notes

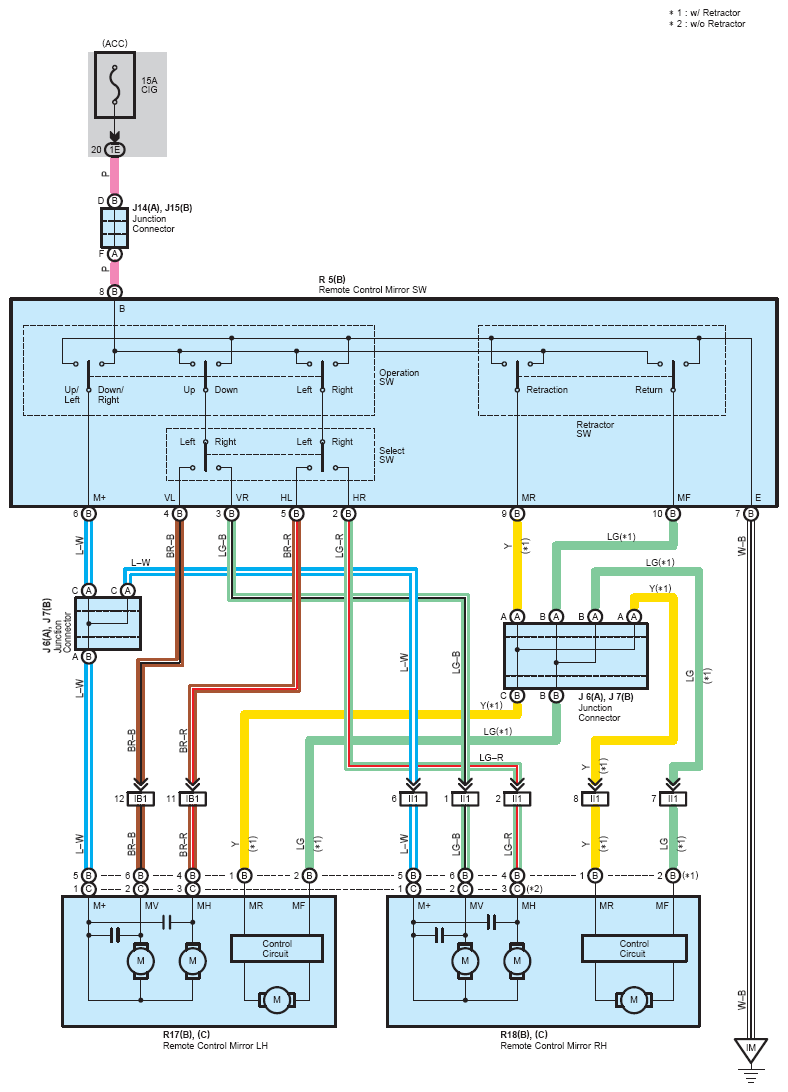

Fig 1: Remote Control Mirror System (Without Driving Position Memory) Wiring Diagram
G08861649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
