Fuel Tank: Components

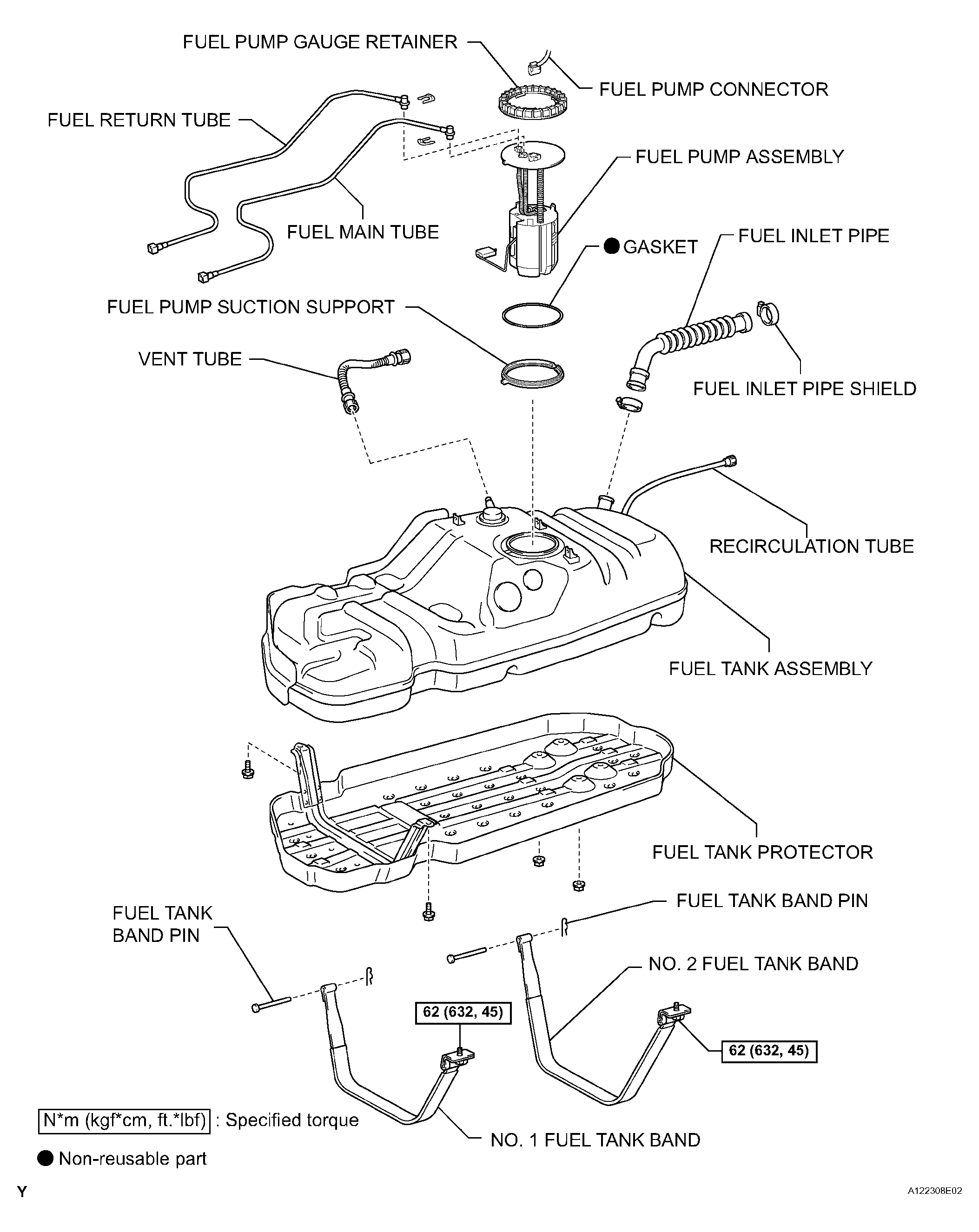

Fig 1: Fuel Tank Replacement Components With Torque Specifications
G04507492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
