Audio System with 10 Speaker: Notes

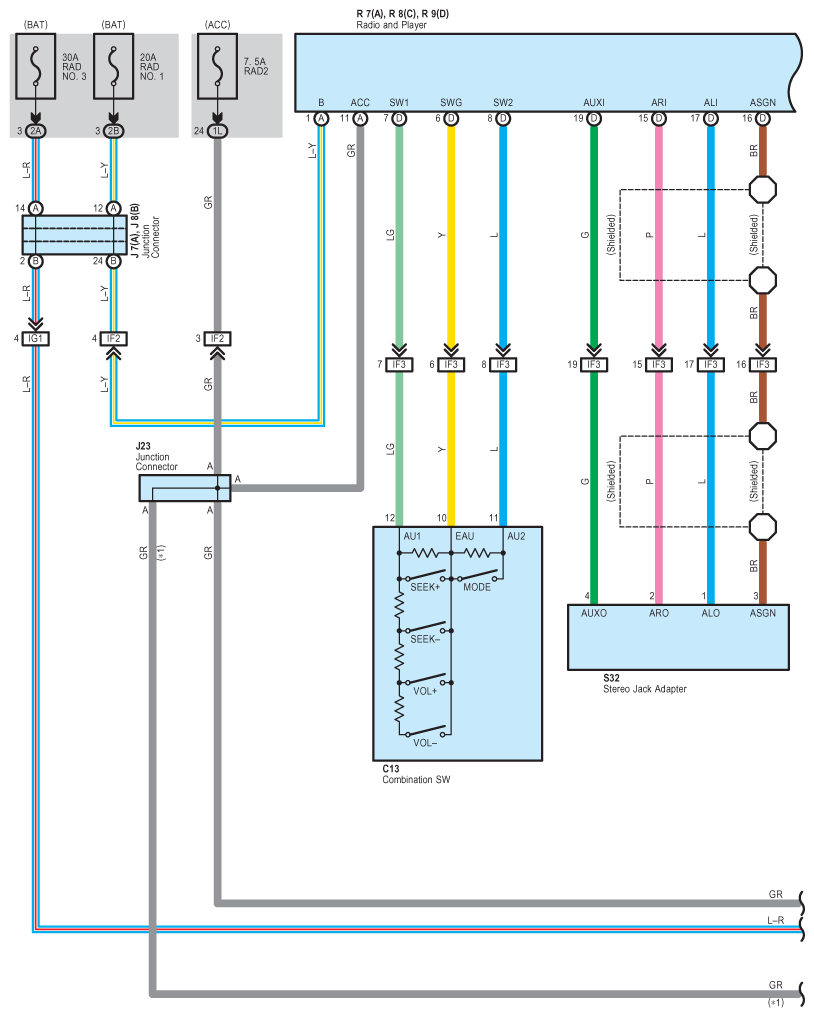

Fig 1: Audio System (With 10 Speaker) Wiring Diagram (1 Of 5)
G08842071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

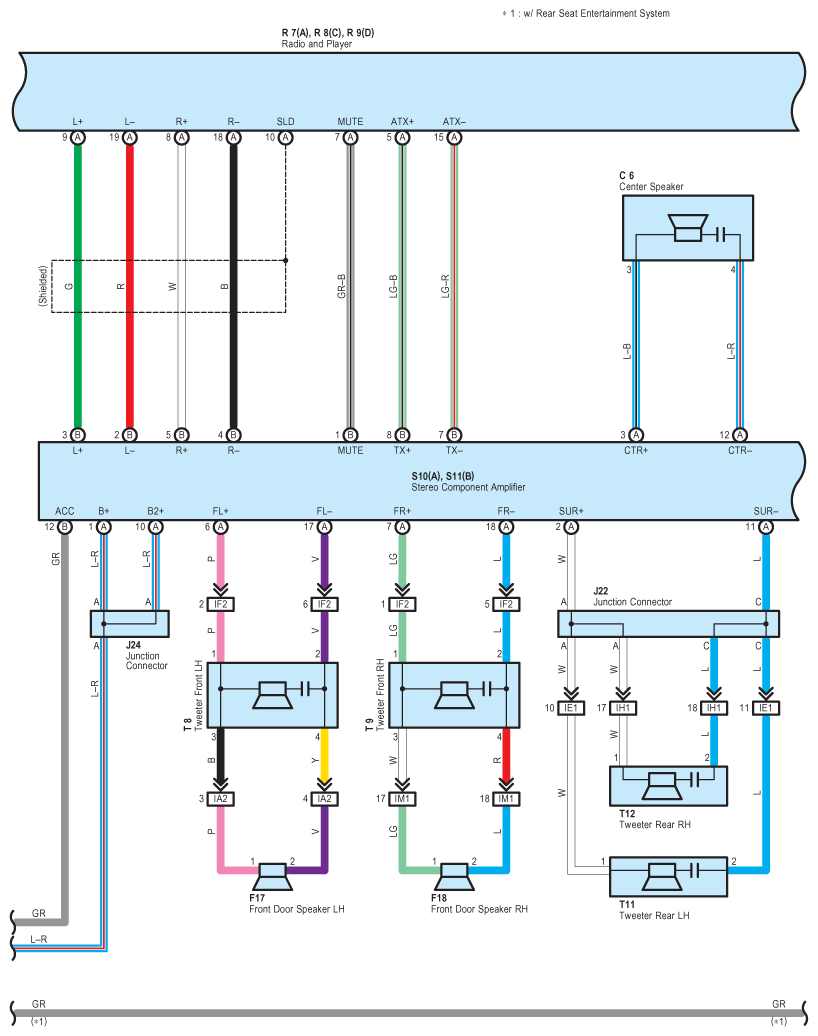

Fig 2: Audio System (With 10 Speaker) Wiring Diagram (2 Of 5)
G08842072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

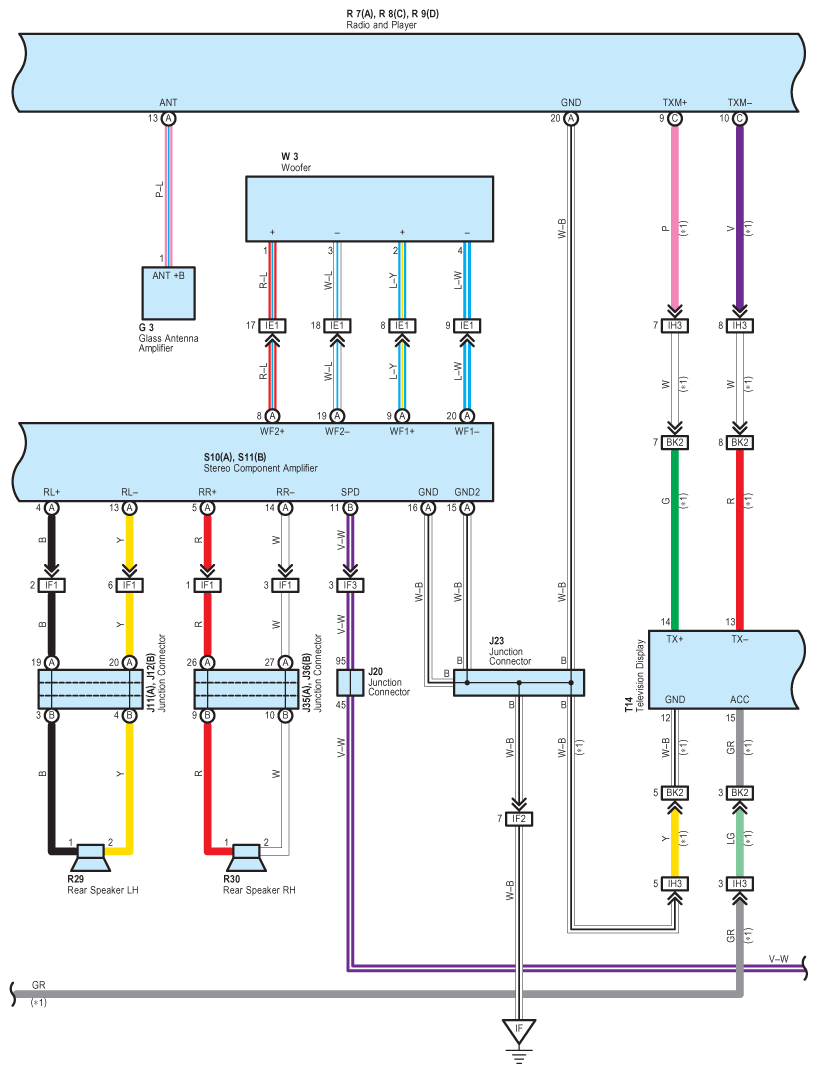

Fig 3: Audio System (With 10 Speaker) Wiring Diagram (3 Of 5)
G08842073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

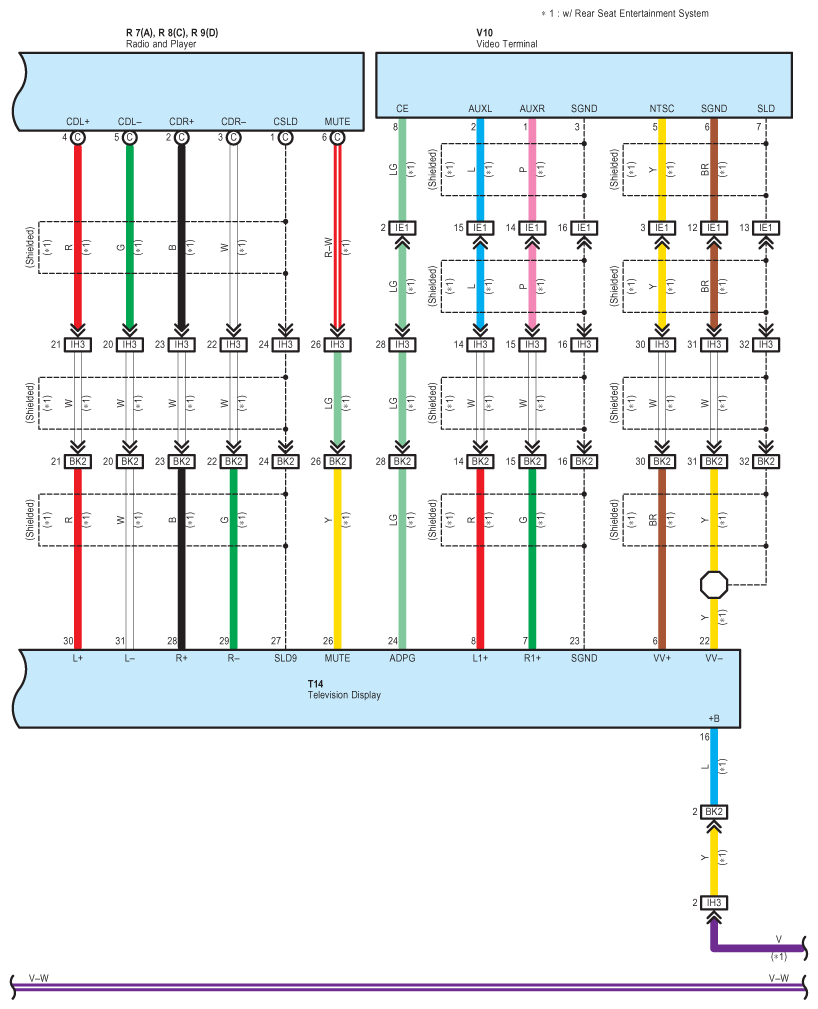

Fig 4: Audio System (With 10 Speaker) Wiring Diagram (4 Of 5)
G08842074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

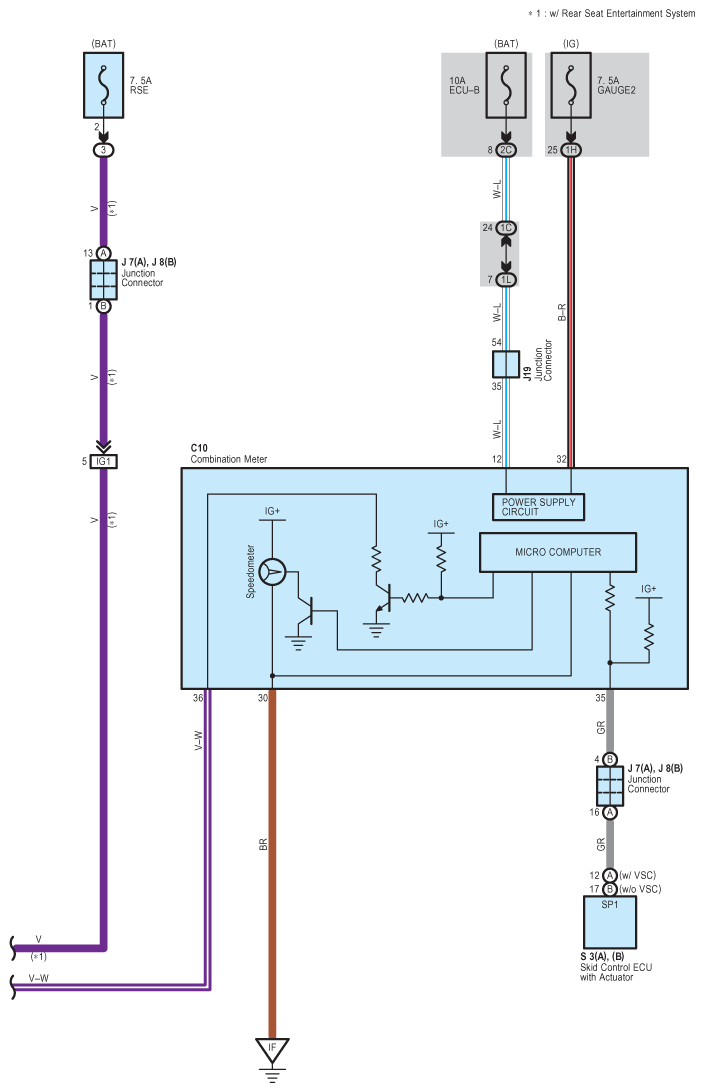

Fig 5: Audio System (With 10 Speaker) Wiring Diagram (5 Of 5)
G08842075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
