Automatic Air Conditioning (Front): Notes

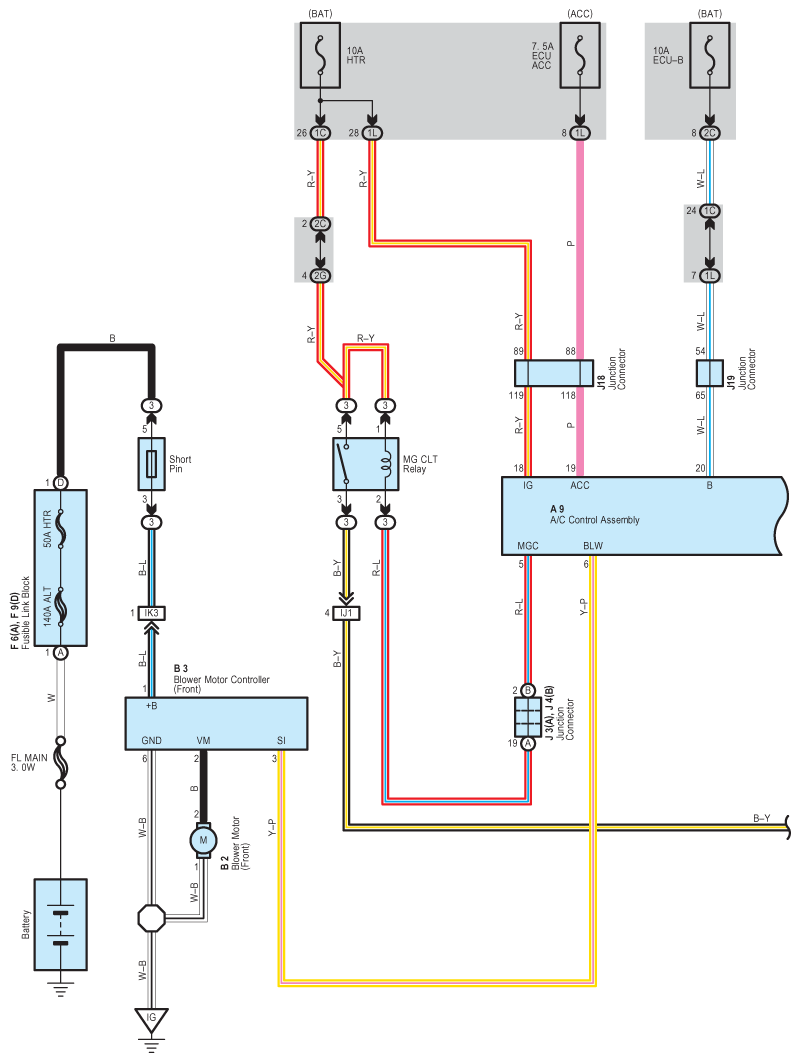

Fig 1: Front Automatic Air Conditioning System Wiring Diagram (1 Of 4)
G08842090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

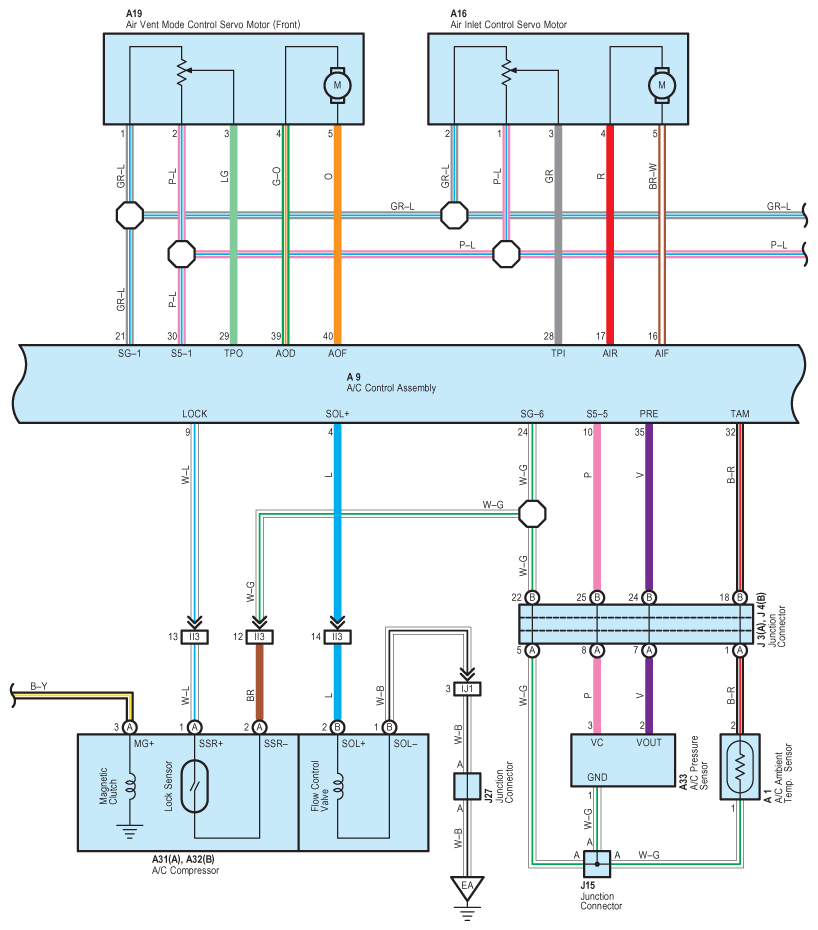

Fig 2: Front Automatic Air Conditioning System Wiring Diagram (2 Of 4)
G08842091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

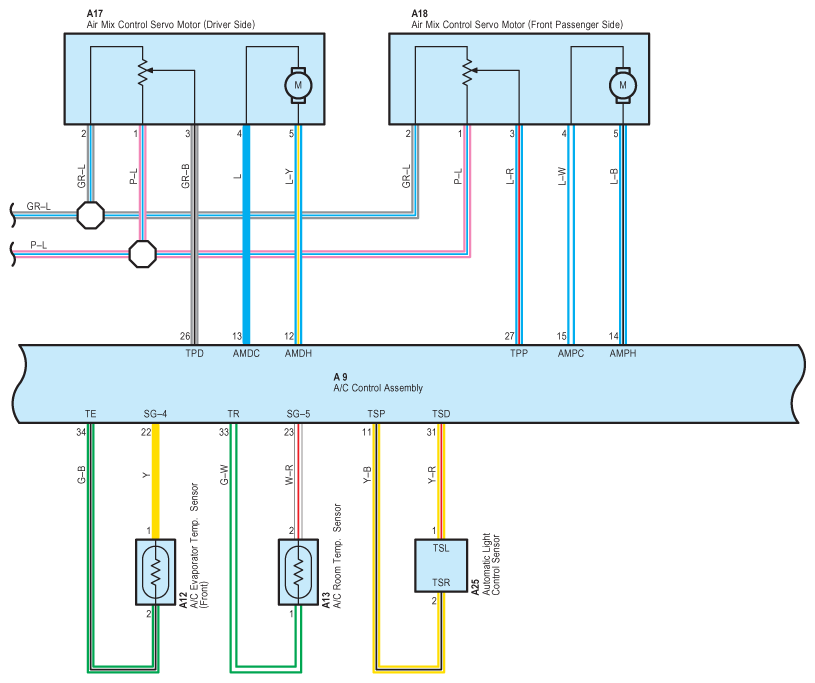

Fig 3: Front Automatic Air Conditioning System Wiring Diagram (3 Of 4)
G08842092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

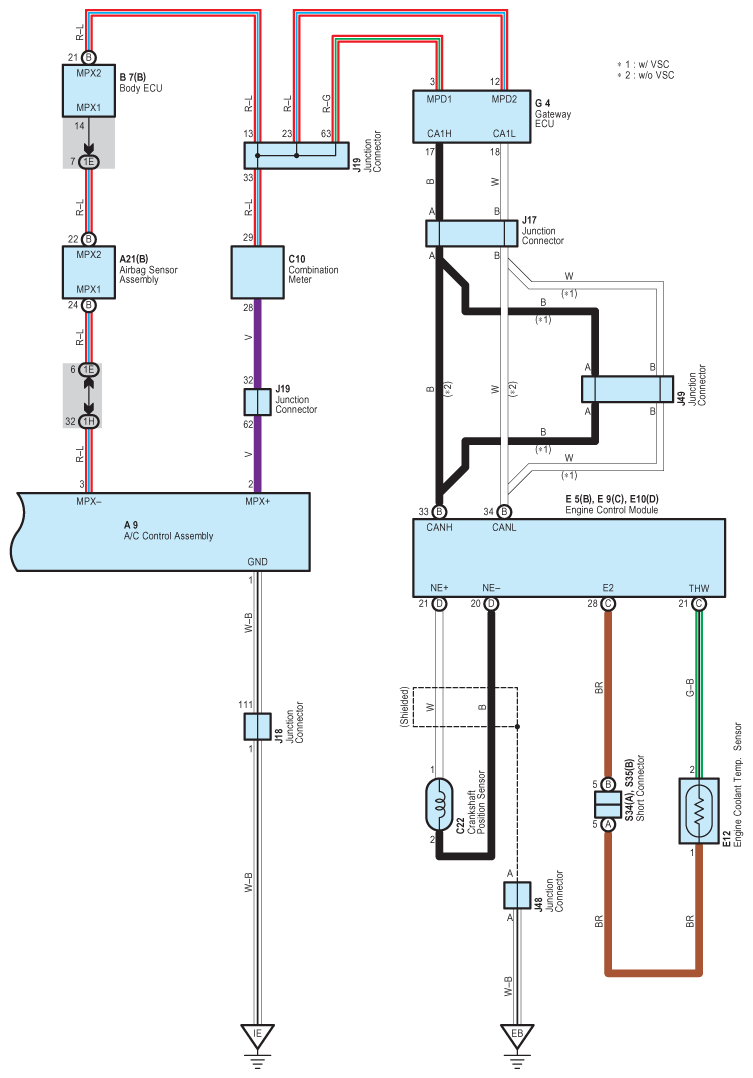

Fig 4: Front Automatic Air Conditioning System Wiring Diagram (4 Of 4)
G08842093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
