Automatic Glare-Resistant EC Mirror with Compass: Notes

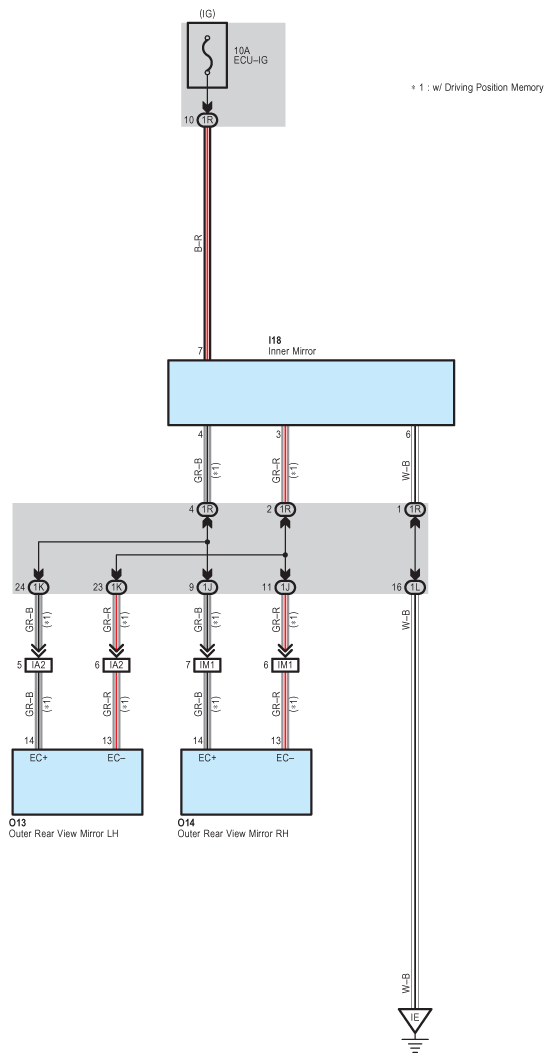

Fig 1: Automatic Glare-Resistant EC Mirror System (With Compass) Wiring Diagram
G08842047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
