Power Outlet (12V Front): Notes

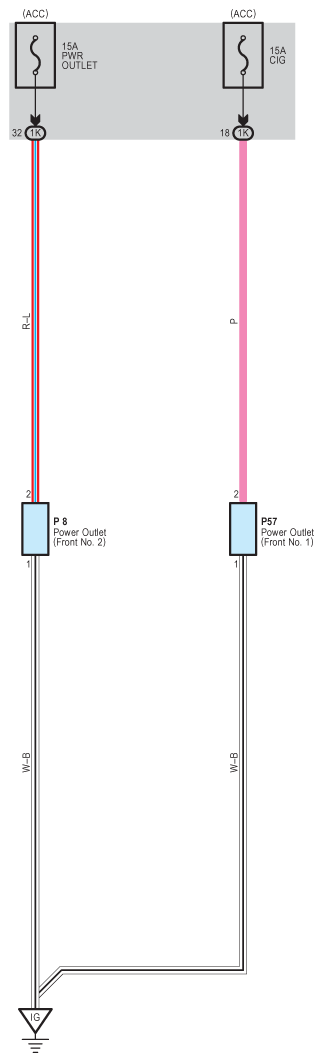

Fig 1: Power Outlet System (12V Front) Wiring Diagram
G08842045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
