Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

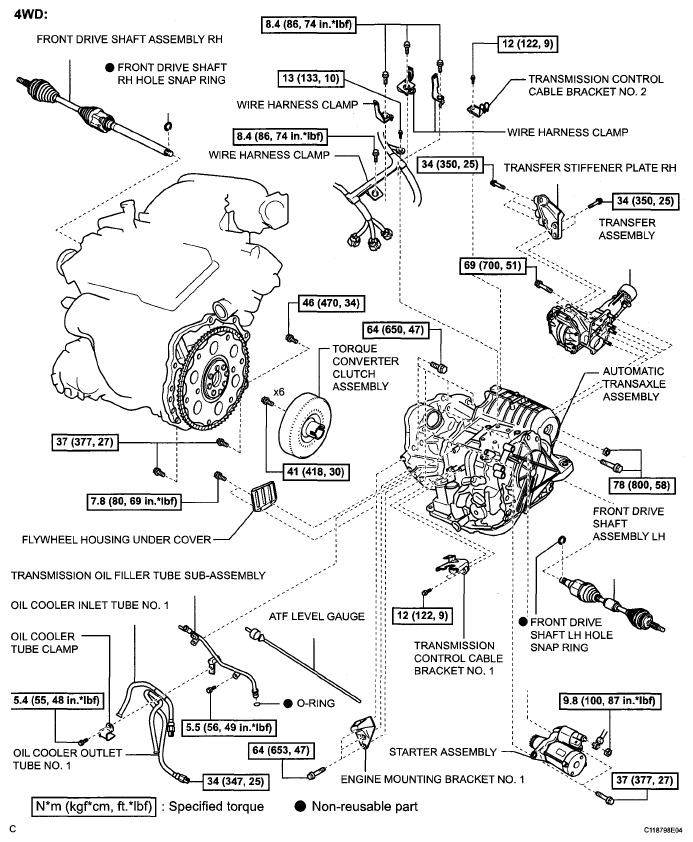

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
G05139094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
