OEM System Circuits: Illumination: Notes

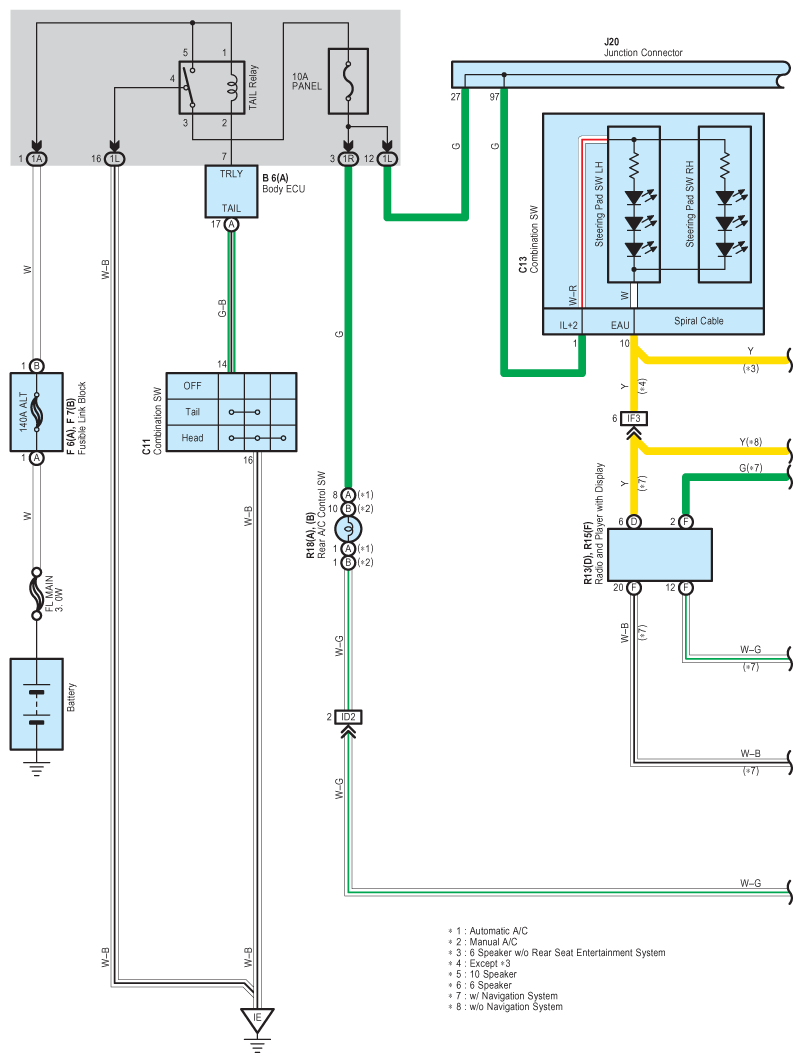

Fig 1: Illumination System Wiring Diagram (1 Of 4)
G08841941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

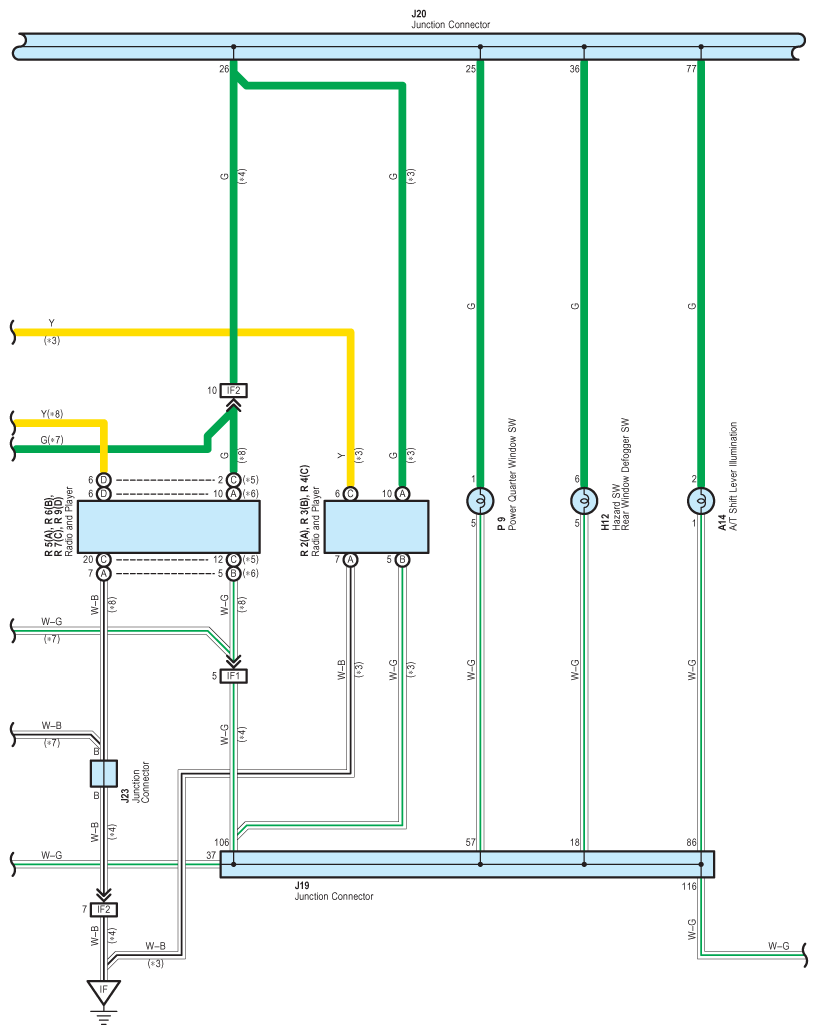

Fig 2: Illumination System Wiring Diagram (2 Of 4)
G08841942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

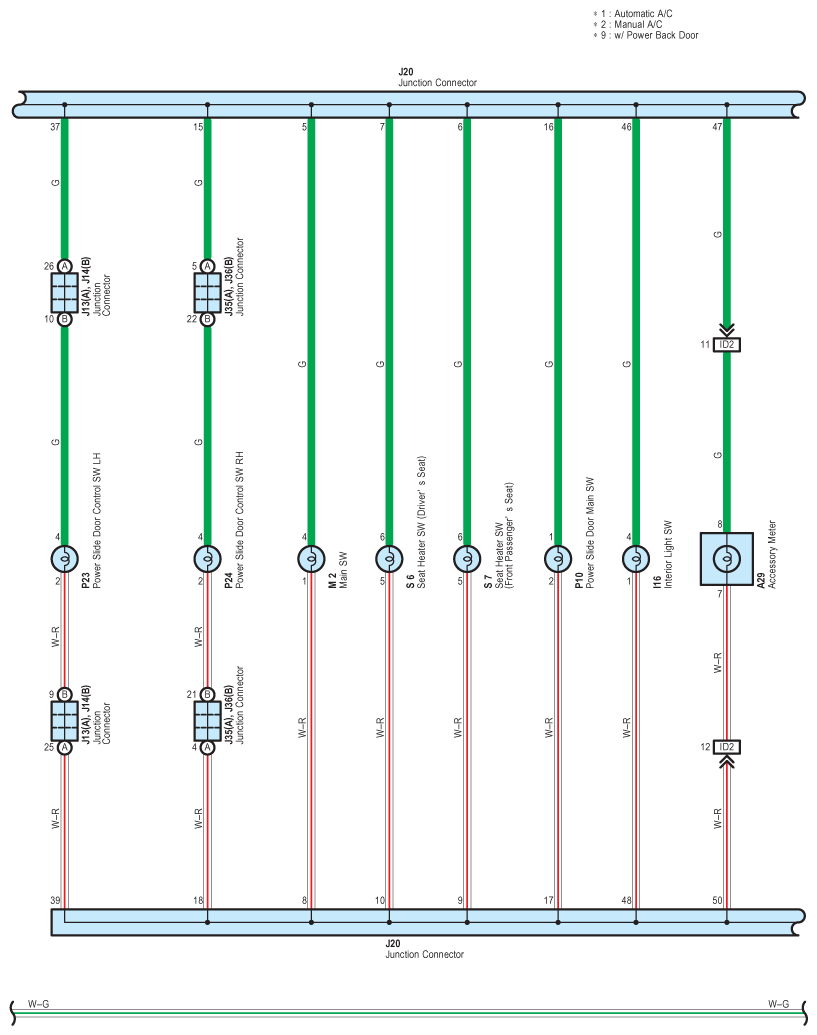

Fig 3: Illumination System Wiring Diagram (3 Of 4)
G08841943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

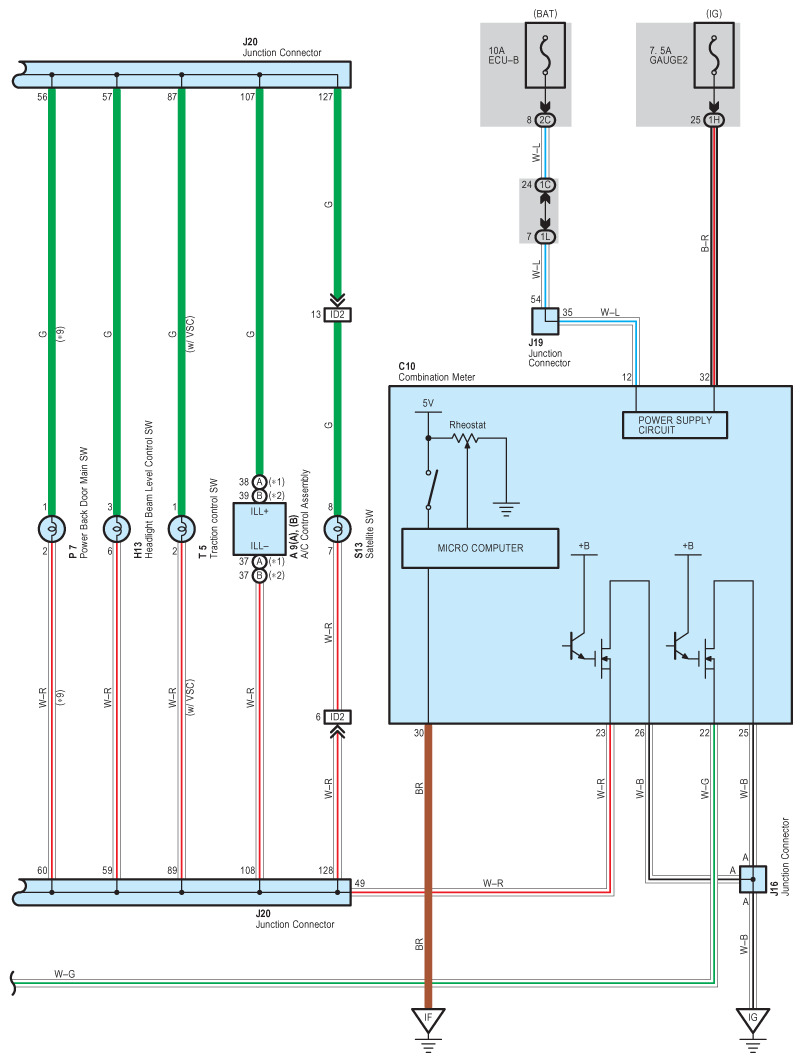

Fig 4: Illumination System Wiring Diagram (4 Of 4)
G08841944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
