Starting System: Starter: Components

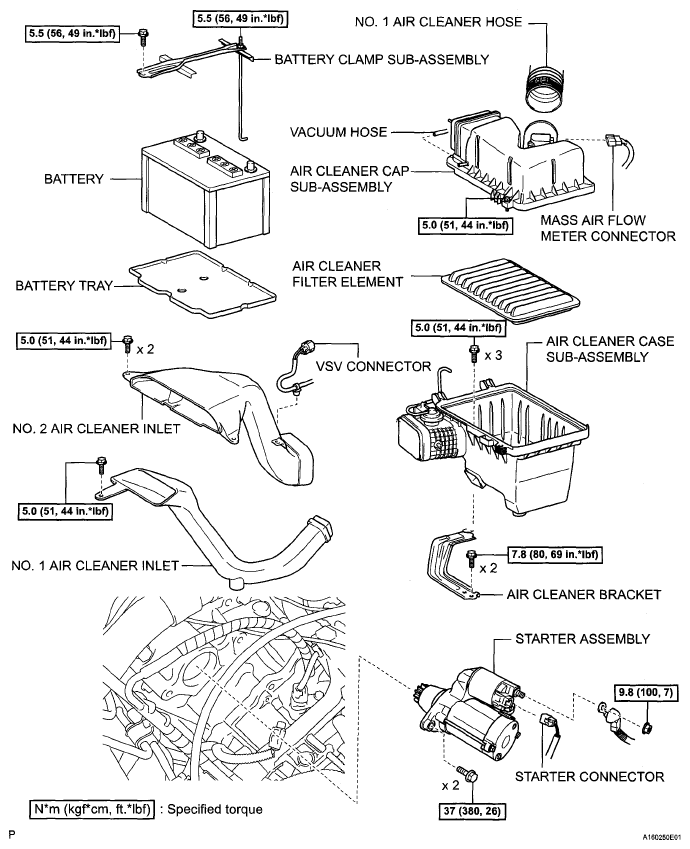

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)
G05140023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

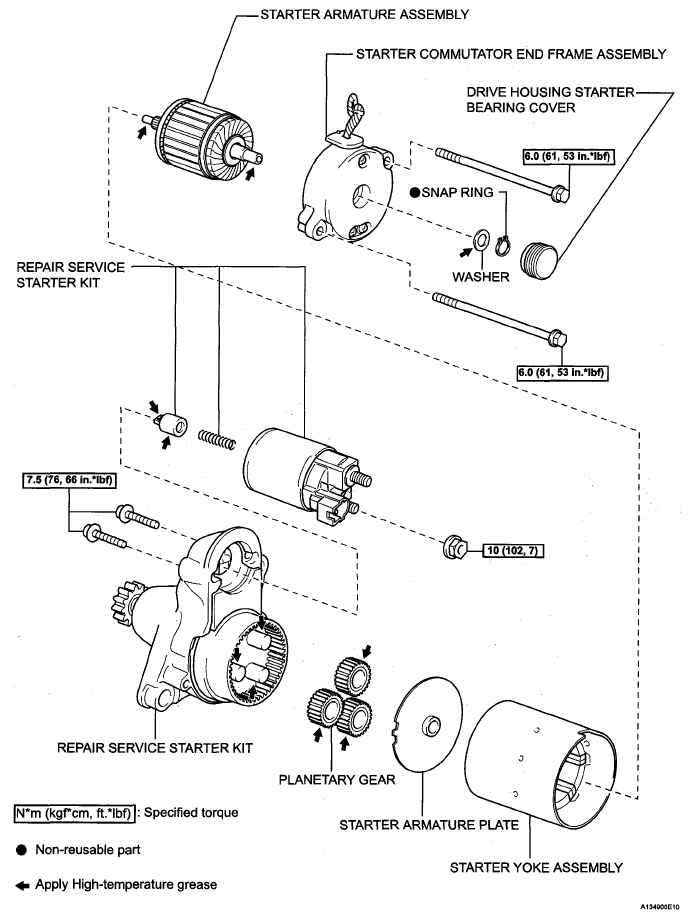

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)
G05140024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
