Inspection Procedure

  1. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (B VOLTAGE)
    1. Disconnect the P14 power window regulator switch connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      P14-4 (B) - Body ground Ignition switch ON 10 to 14 V
    4. Reconnect the power window regulator switch connector.
      Fig 1: Identifying Power Window Regulator Switch Assembly (Passenger Side) Connector Terminals
      G04412848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVER SIDE J/B - REGULATOR SWITCH)

    OK: Go to Next Step

  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (SWITCH OPERATION)
    1. Remove the power window regulator switch.
    2. Disconnect the P14 power window regulator switch connector.
    3. Measure the resistance between the terminals of the connector when the switch is operated.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Regulator Switch Specified Condition
      P14-1 (D) - P14-2 (SD)
      P14-3 (U) - P14-4 (B)      		 UP Below 1
      P14-1 (D) - P14-2 (SD)
      P14-3 (U) - P14-5 (SU)      		 OFF Below 1
      P14-1 (D) - P14-4 (B)
      P14-3 (U) - P14-5 (SU)      		 DOWN Below 1
      Fig 2: Identifying Power Window Regulator Switch Assembly Connector Terminals
      G04412849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the power window regulator switch connector.
    5. Reinstall the power window regulator switch.

    NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (REGULATOR SWITCH - REGULATOR MOTOR AND BODY GROUND)
    1. Disconnect the P14 power window regulator switch connector.
    2. Disconnect the P11 power window regulator motor connector.
    3. Measure the resistance.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P14-1 (D) - P11-1 Below 1
      P14-3 (U) - P11-2 Below 1
      P14-1 (D) - Body ground 10 k or higher
      P14-3 (U) - Body ground 10 k or higher
    4. Reconnect the power window regulator switch connector.
    5. Reconnect the power window regulator motor connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

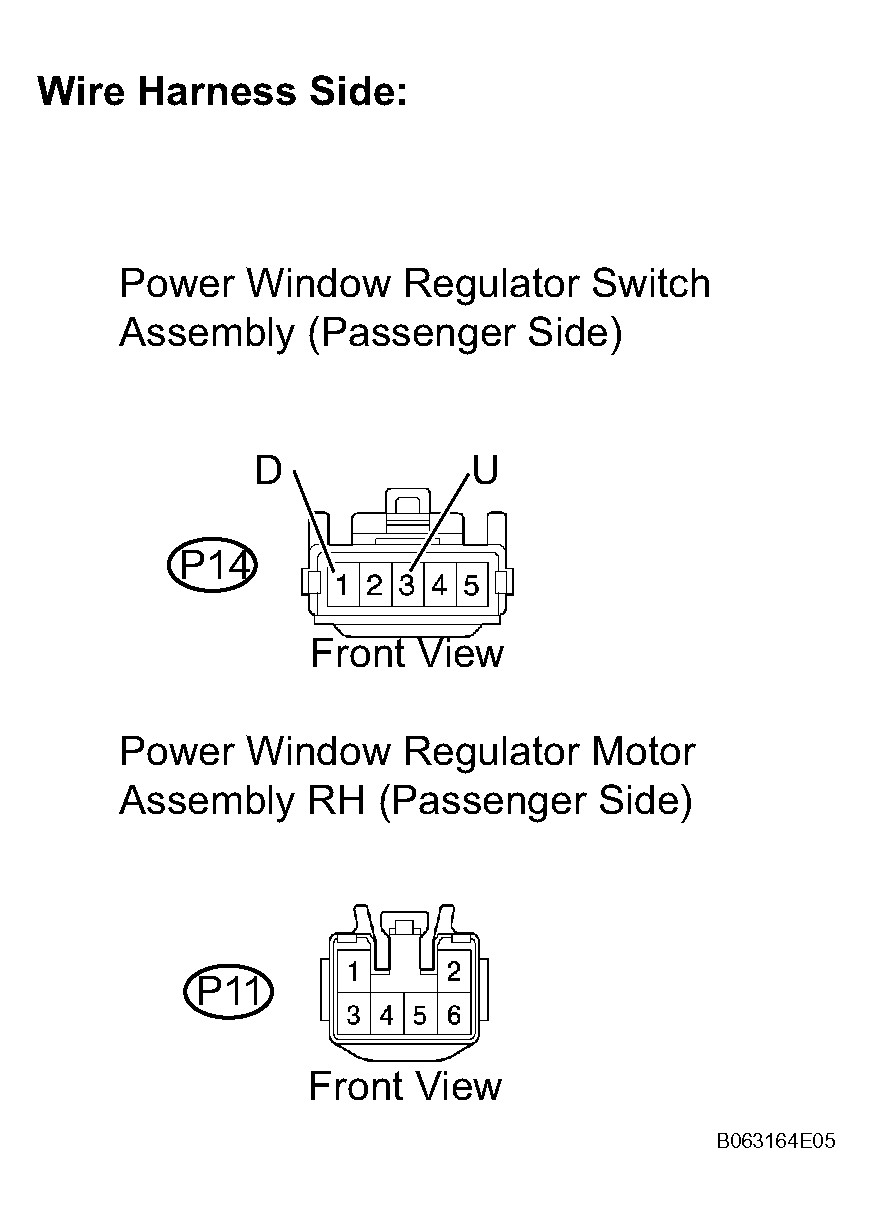

    Fig 3: Identifying P14 & P11 Connector Terminals
    G04412850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
    1. Remove the power window regulator motor.
    2. Apply battery voltage to connector terminals 1 and 2.
    3. Check that the motor smoothly rotates.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

      OK: Go to Next Step

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      Battery positive (+) --> 1
      Battery negative (-) --> 2      		 Motor gear rotates clockwise
      Battery positive (+) --> 2
      Battery negative (-) --> 1      		 Motor gear rotates counterclockwise

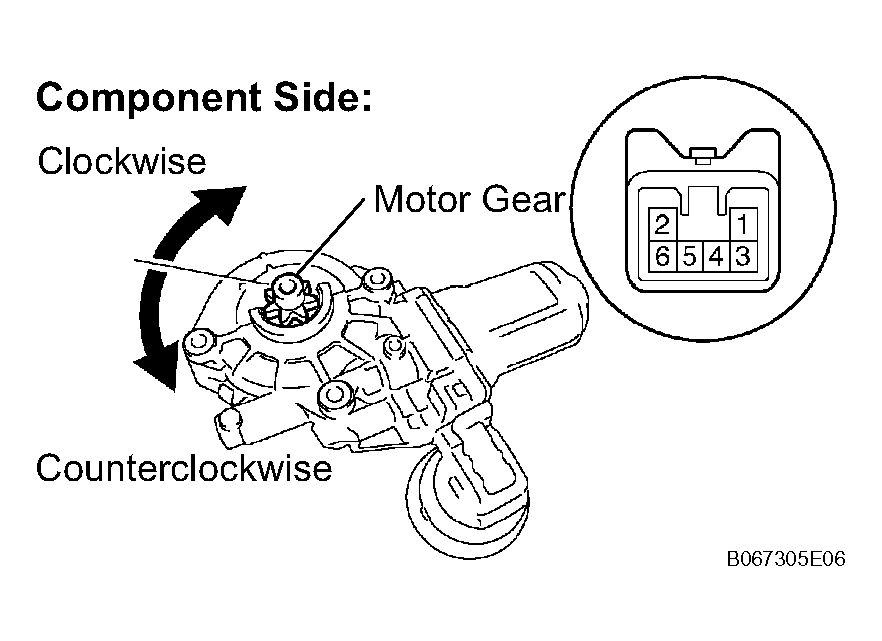

      Fig 4: Checking If Motor Rotates Smoothly
      G04412851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reinstall the power window regulator motor.

    NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (MASTER SWITCH - REGULATOR SWITCH)
