Power Windows Do Not Operate At All: Wiring Diagram

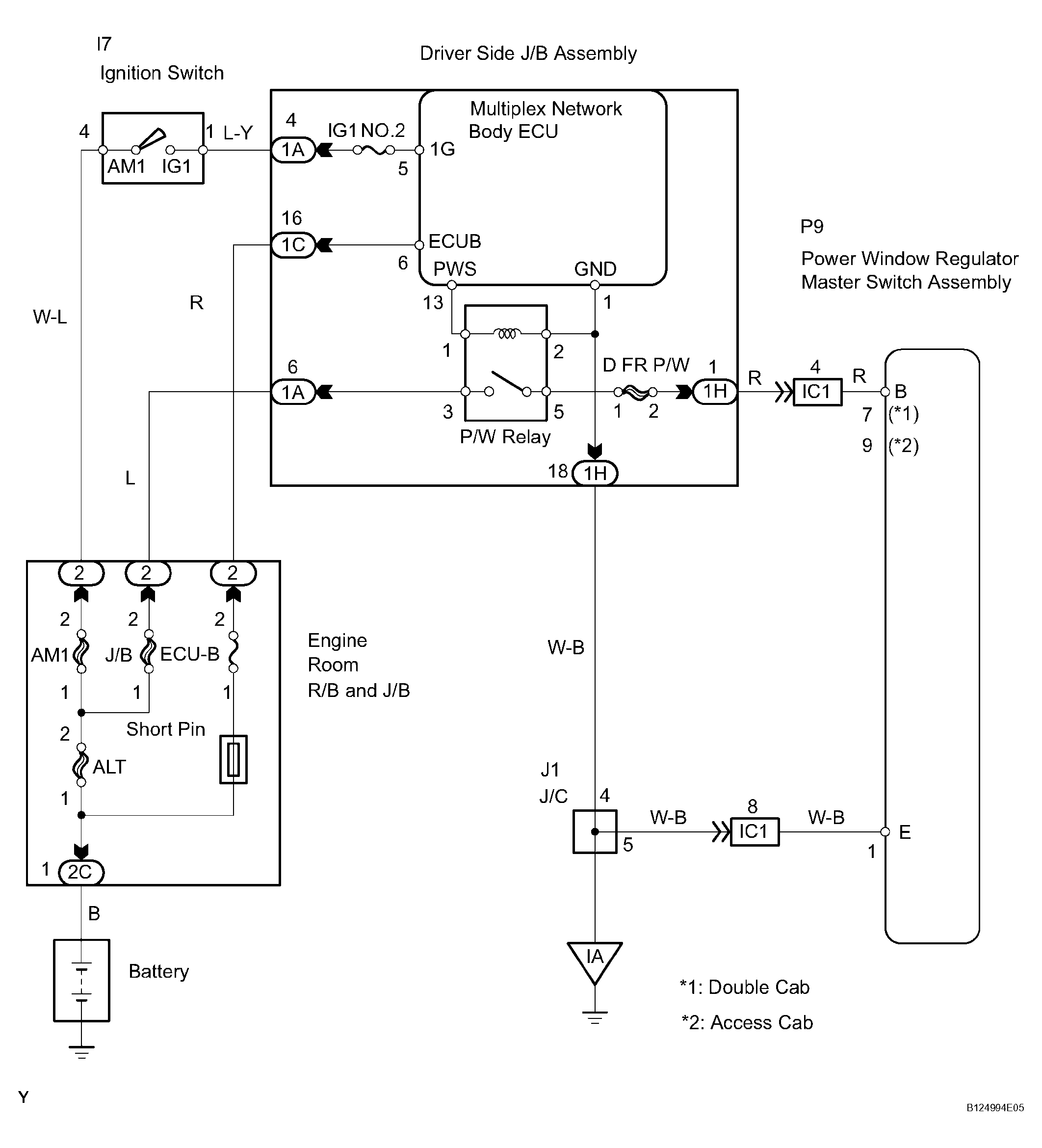

Fig 1: Power Windows Do Not Operate At All - Wiring Diagram
G04412862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
