VVT Sensor: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE V-BANK COVER (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY (See REMOVAL )
REMOVE VVT SENSOR
1. RH bank side VVT sensor:
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and VVT sensor.

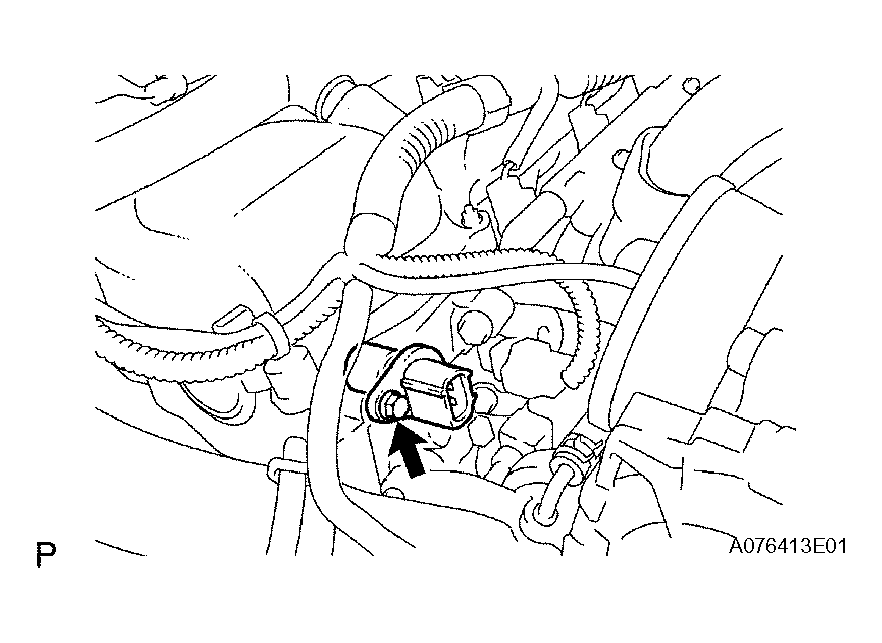

    Fig 1: Removing Bolt & VVT Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. LH bank side VVT sensor:

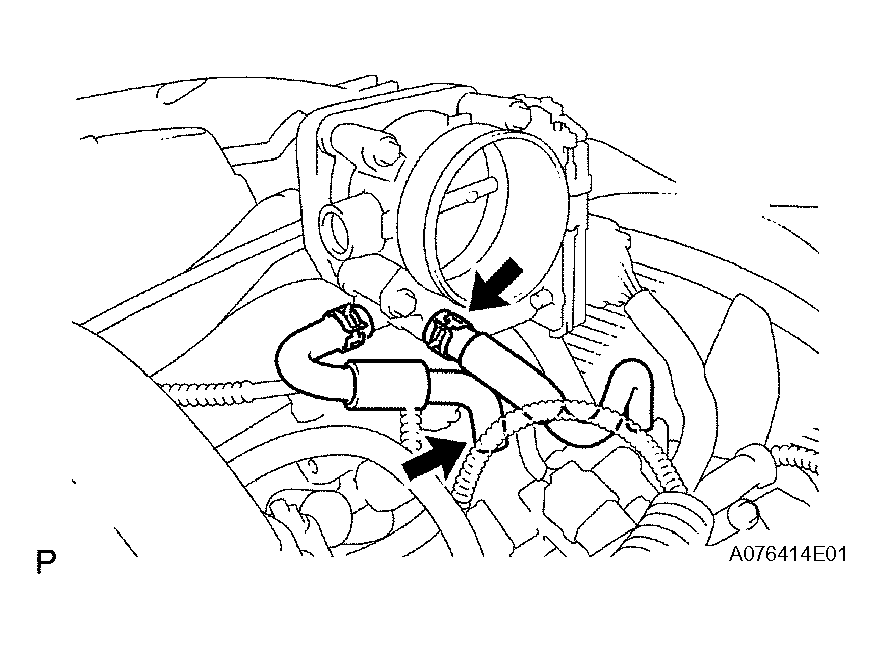

  1. Disconnect the water by-pass hoses No. 4 and No. 5.
  2. Disconnect the VVT sensor connector.

    Fig 2: Disconnecting VVT Sensor Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the bolt and VVT sensor.

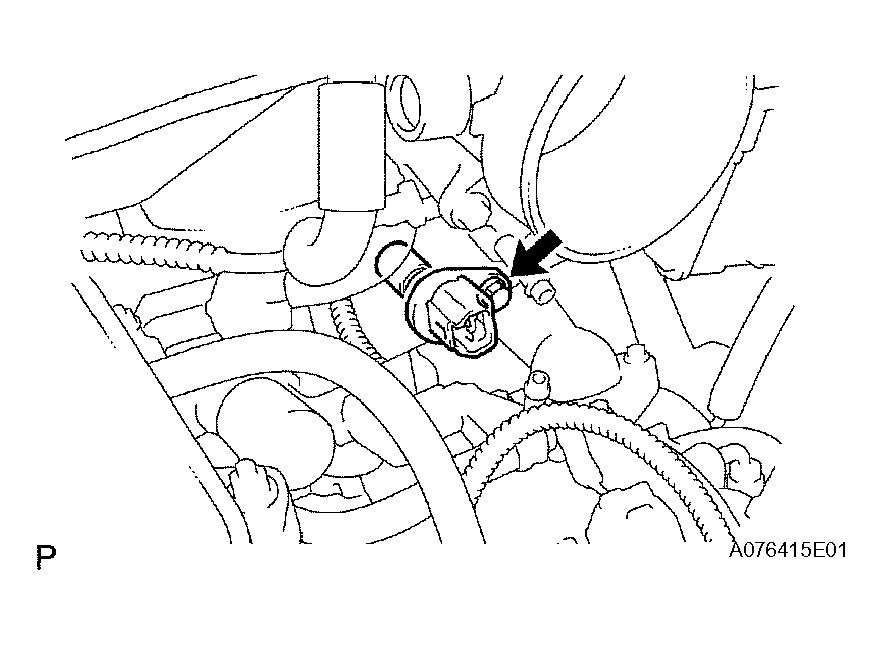

    Fig 3: Removing Bolt & VVT Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
