Cruise Control for 2TR-FE: Notes

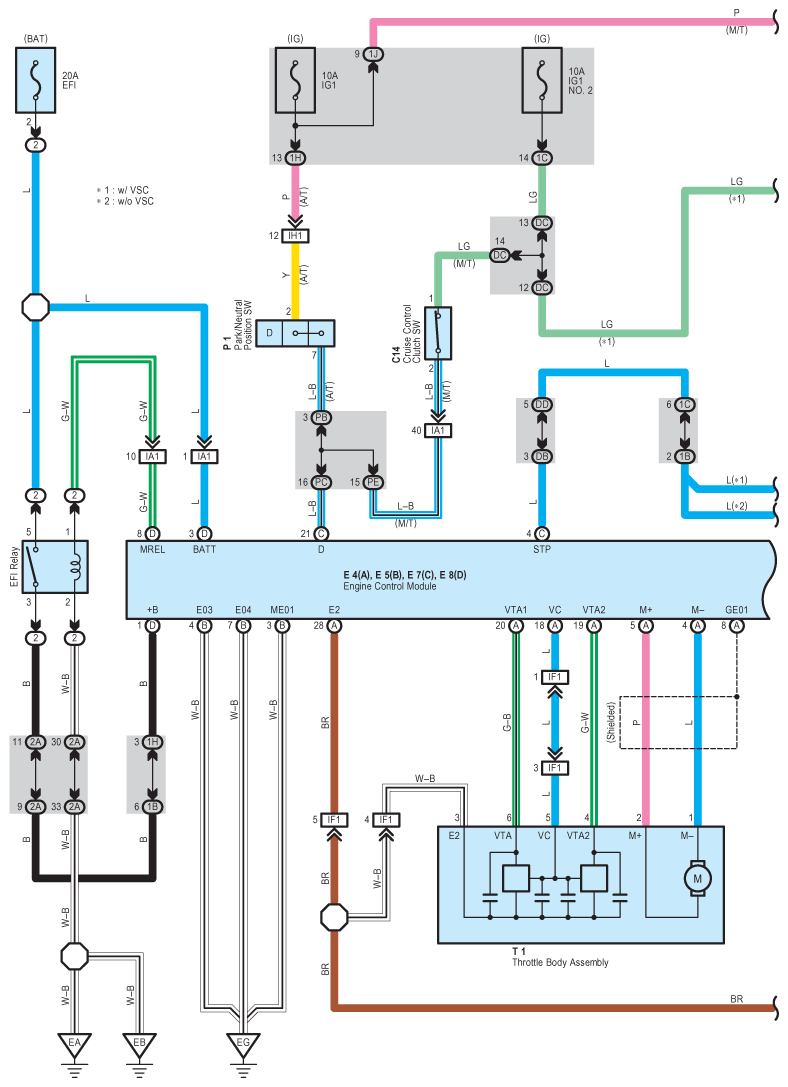

Fig 1: Cruise Control For 2TR-FE System Wiring Diagram (1 Of 4)
G08796823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

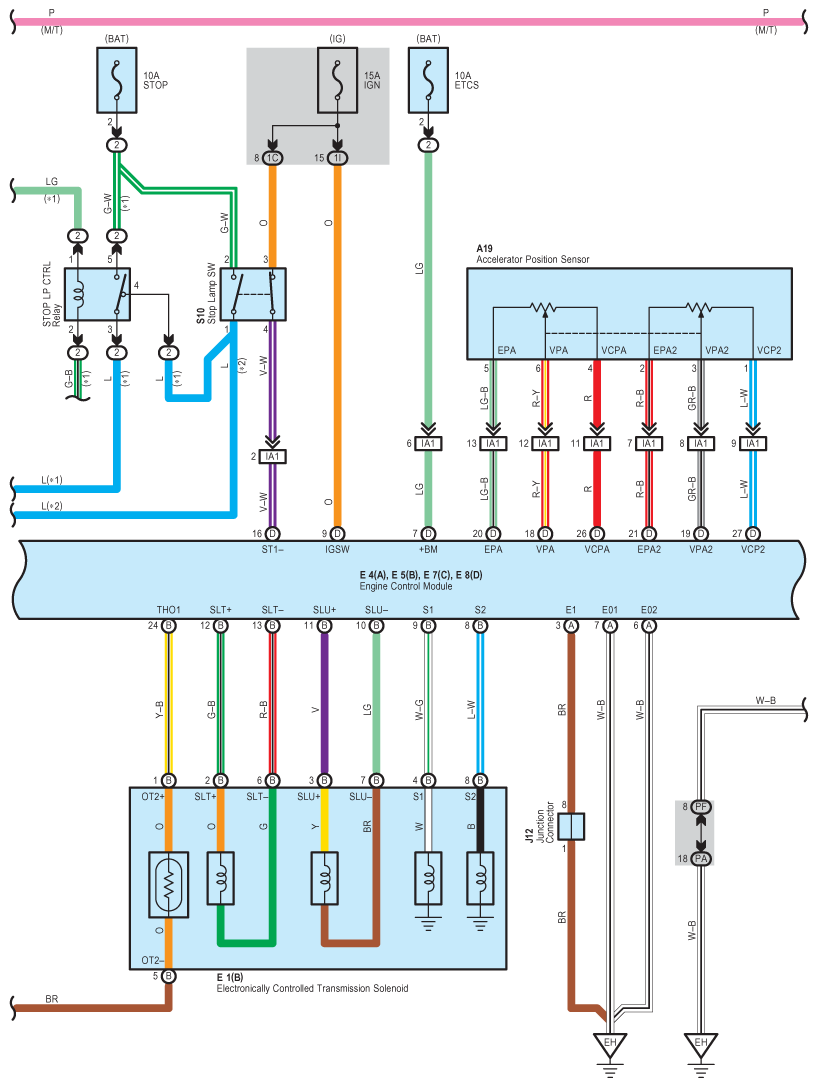

Fig 2: Cruise Control For 2TR-FE System Wiring Diagram (2 Of 4)
G08796824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

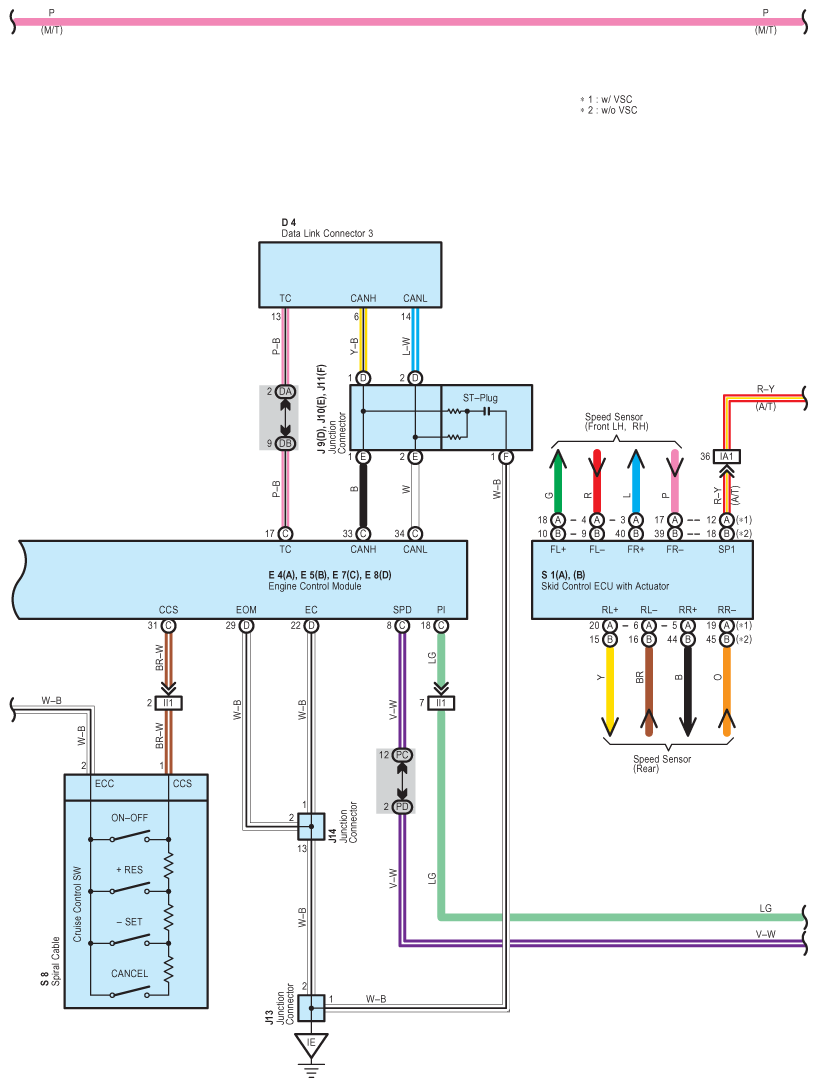

Fig 3: Cruise Control For 2TR-FE System Wiring Diagram (3 Of 4)
G08796825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

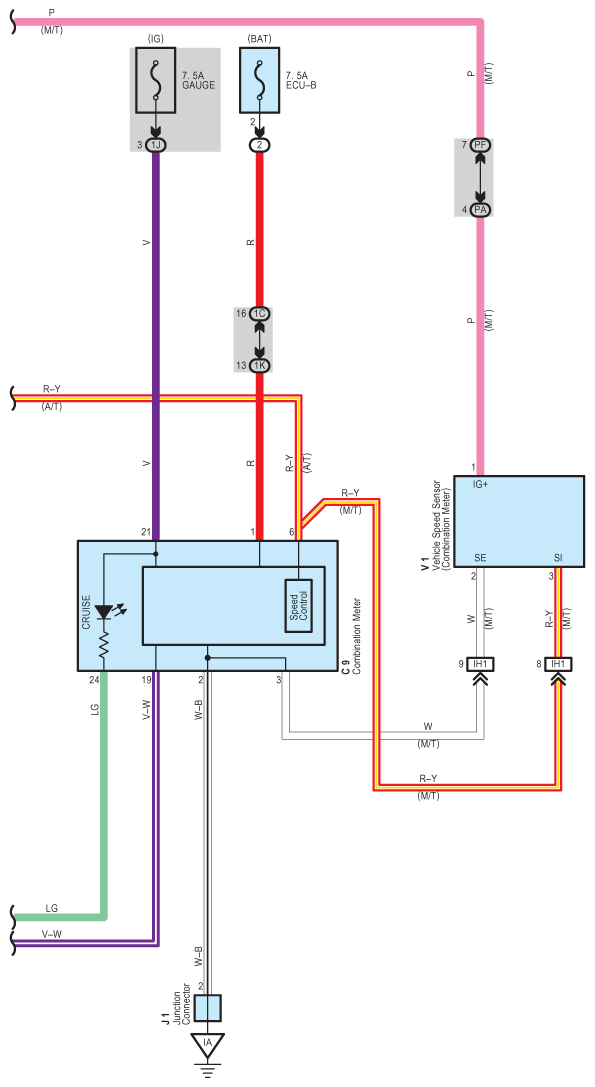

Fig 4: Cruise Control For 2TR-FE System Wiring Diagram (4 Of 4)
G08796826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
