Remote Control Mirror without Seat Position Memory: Notes

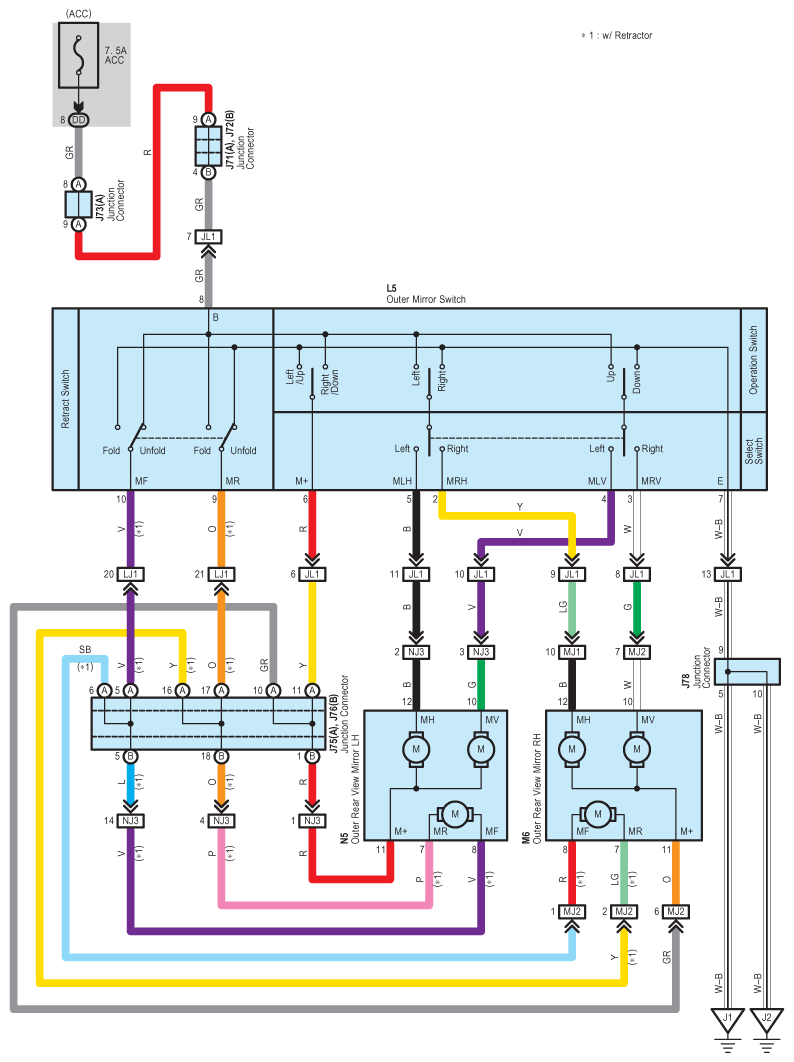

Fig 1: Remote Control Mirror Without Seat Position Memory System Wiring Diagram
G08791016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
