Shift Lock for Column Shift: Notes

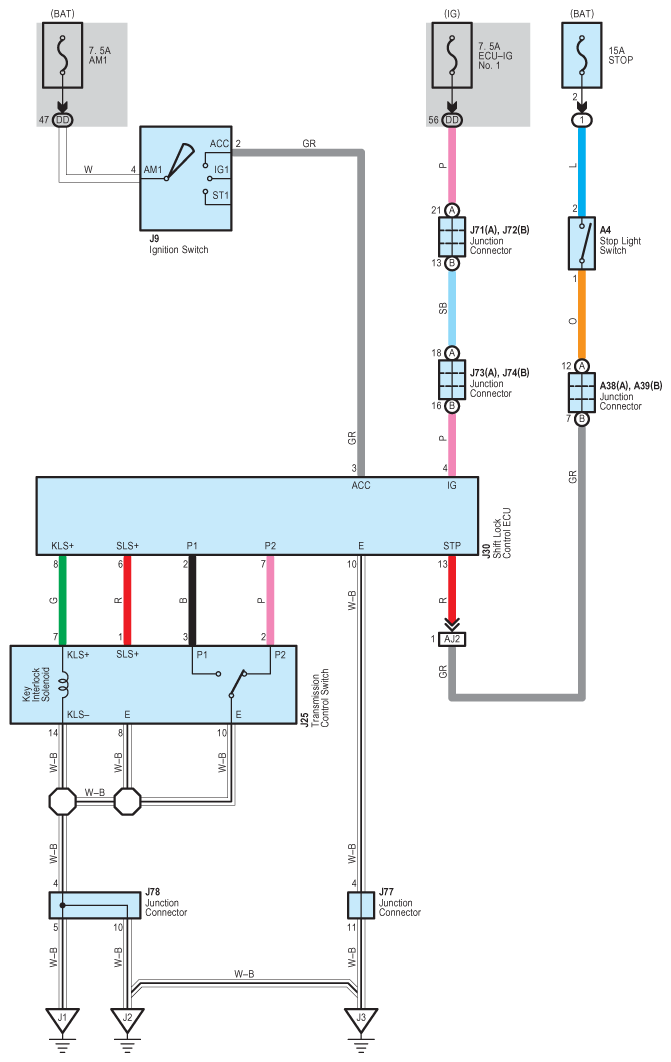

Fig 1: Shift Lock System Wiring Diagram (For Column Shift)
G08791034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
