Audio System: Notes

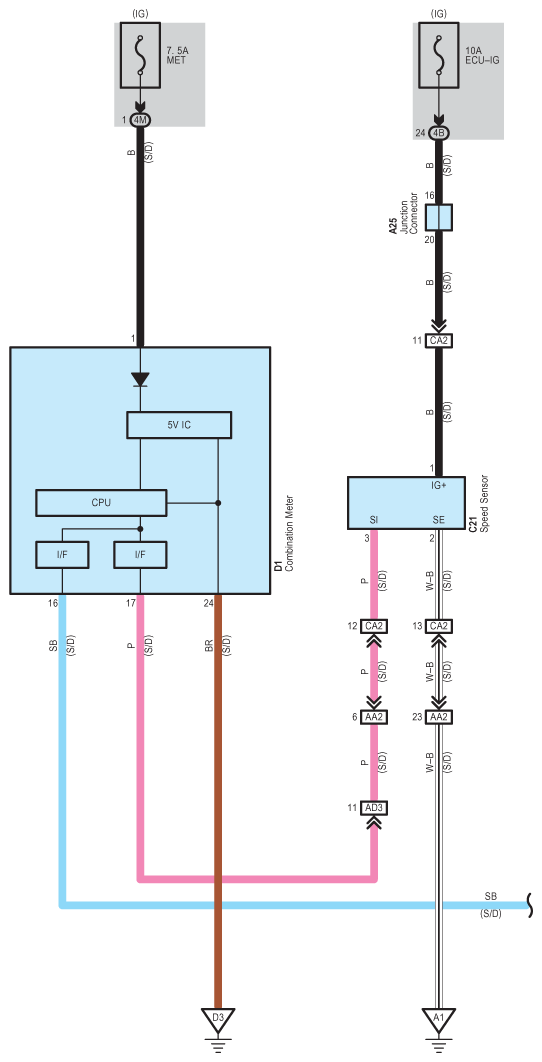

Fig 1: Audio System Wiring Diagram (1 Of 3)
G08791765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

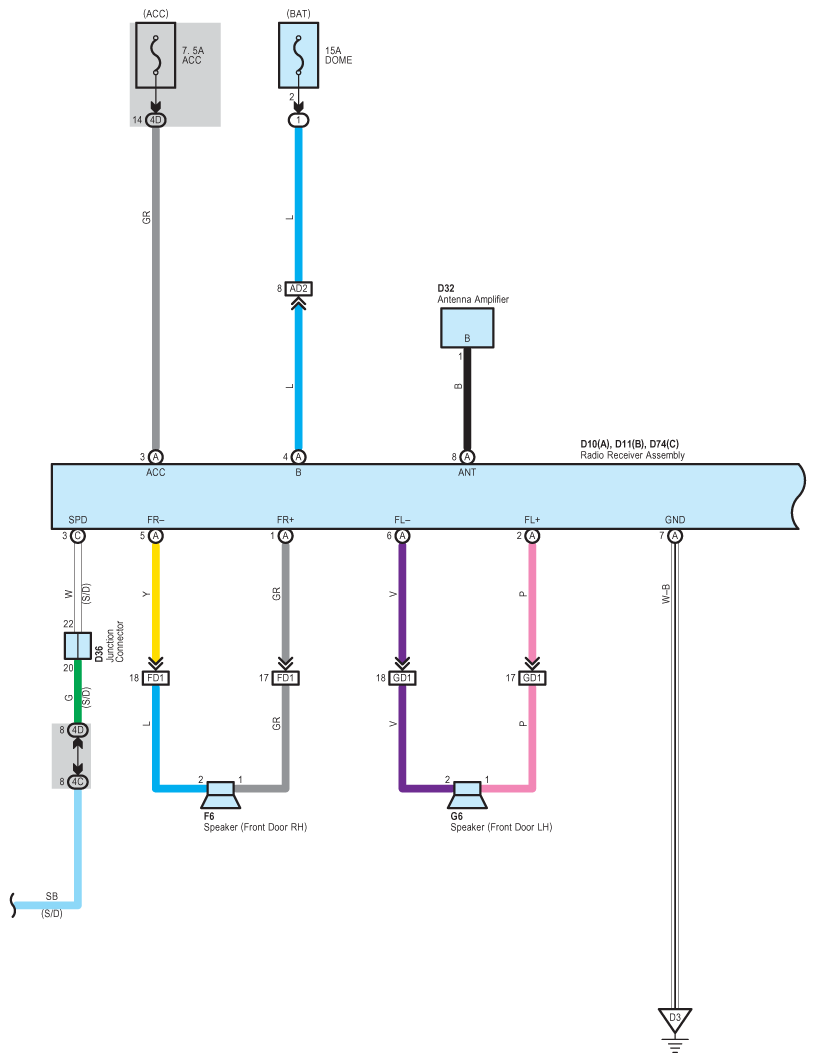

Fig 2: Audio System Wiring Diagram (2 Of 3)
G08791766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

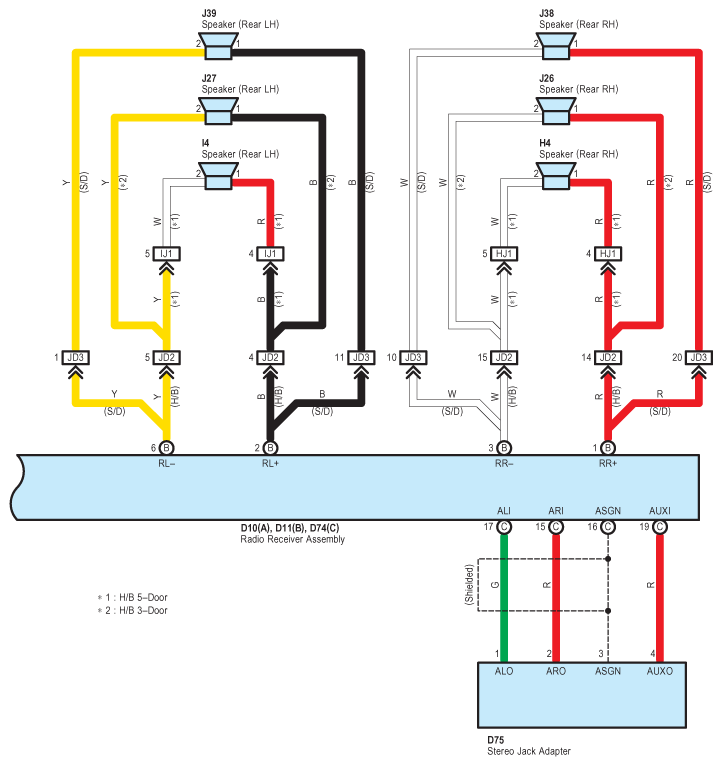

Fig 3: Audio System Wiring Diagram (3 Of 3)
G08791767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
