Cruise Control: Notes

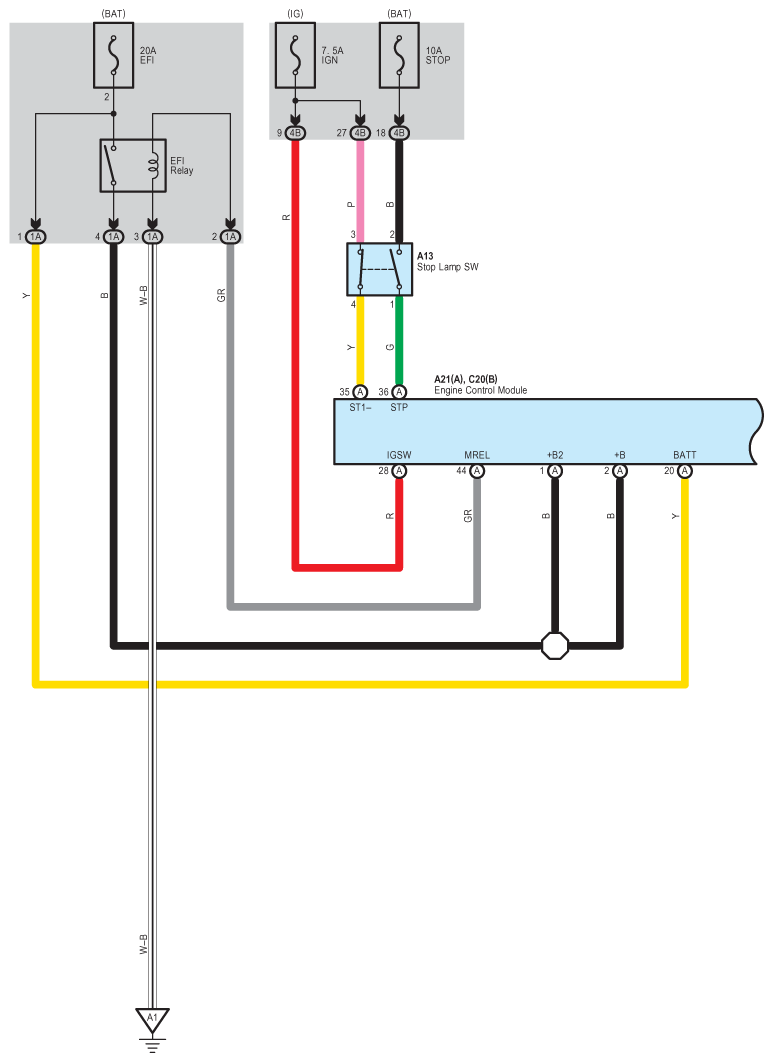

Fig 1: Cruise Control System Wiring Diagram (1 Of 5)
G08791693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

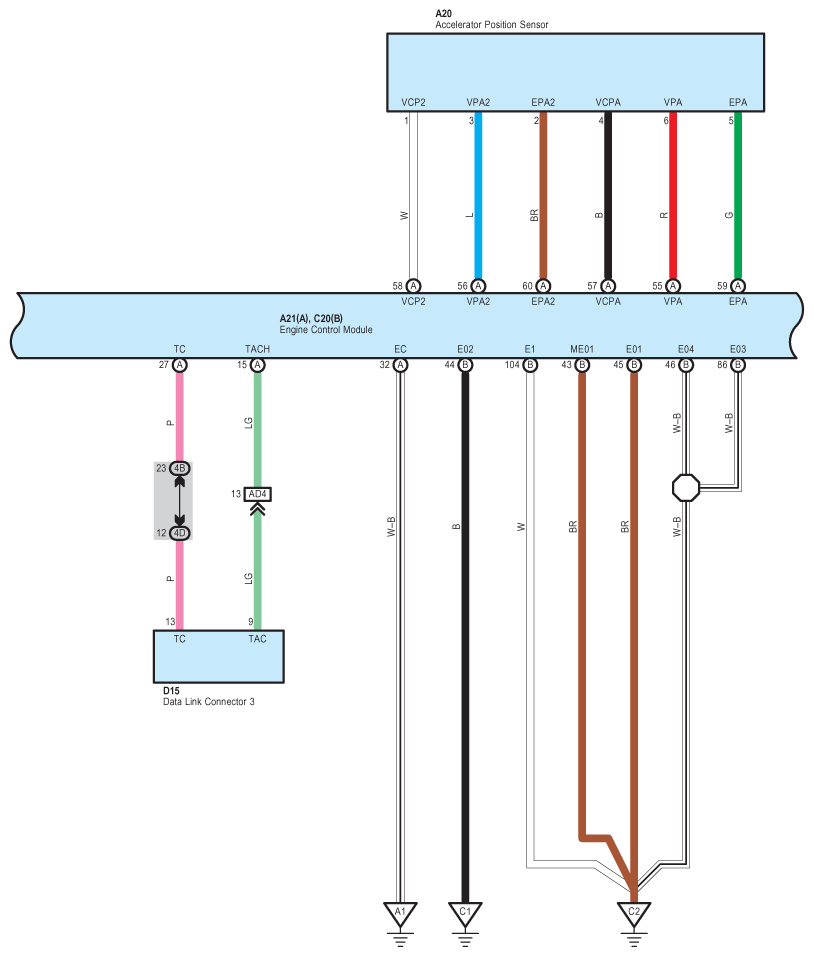

Fig 2: Cruise Control System Wiring Diagram (2 Of 5)
G08791694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

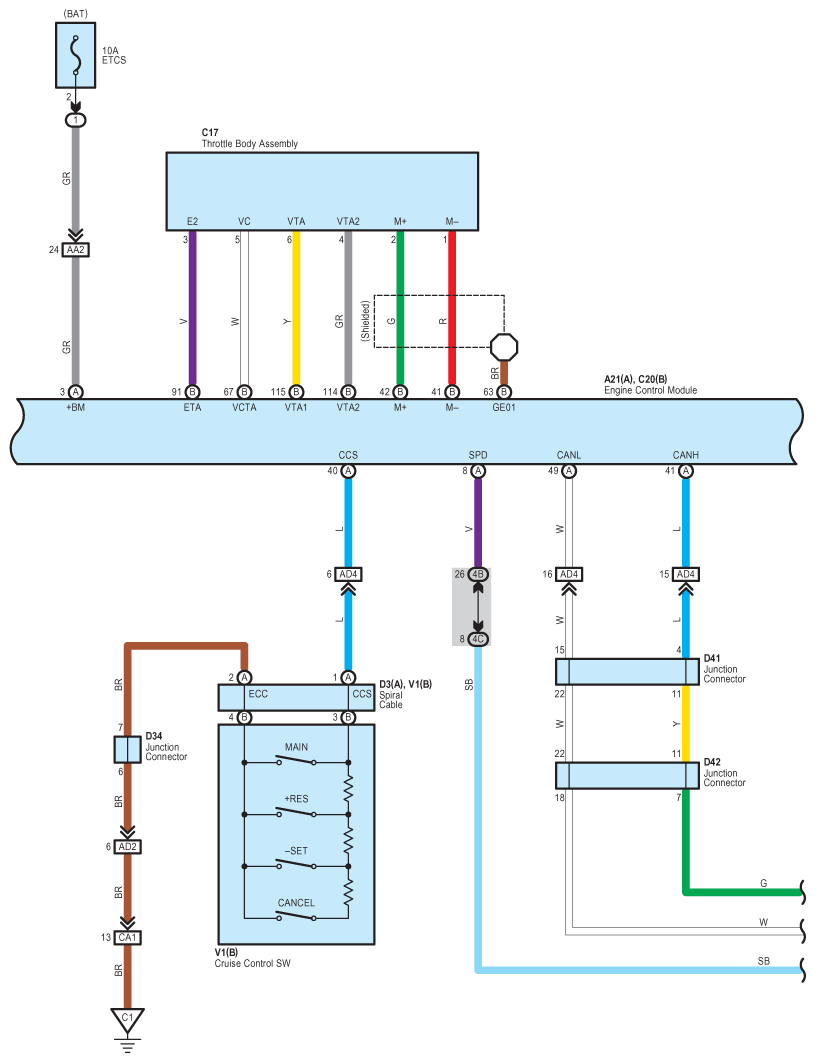

Fig 3: Cruise Control System Wiring Diagram (3 Of 5)
G08791695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

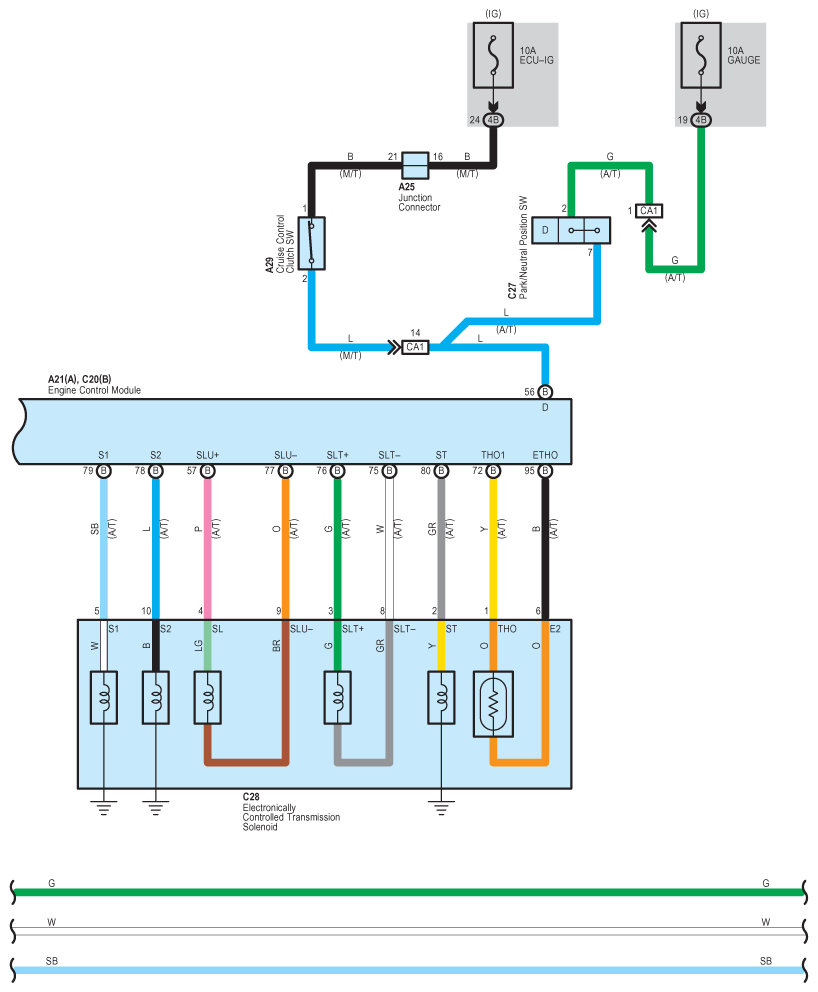

Fig 4: Cruise Control System Wiring Diagram (4 Of 5)
G08791696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

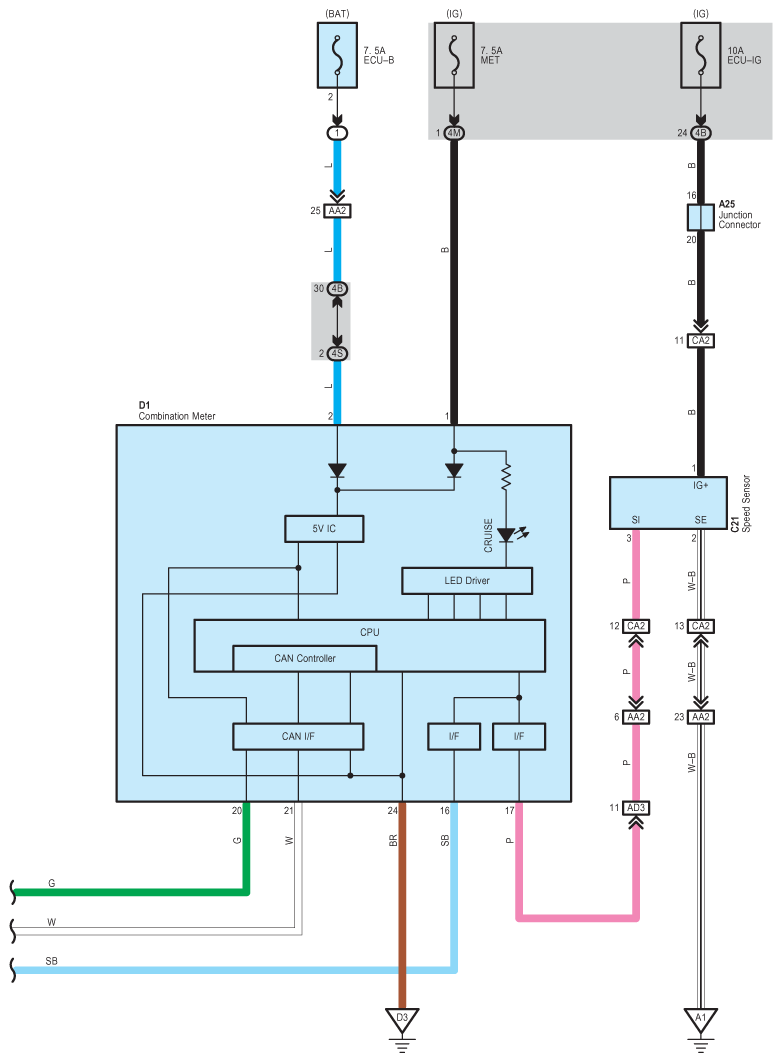

Fig 5: Cruise Control System Wiring Diagram (5 Of 5)
G08791697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
