Integration Relay: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE RELAY BLOCK COVER NO. 1
  3. REMOVE INTEGRATION RELAY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.
    2. Disconnect the 3 connectors.

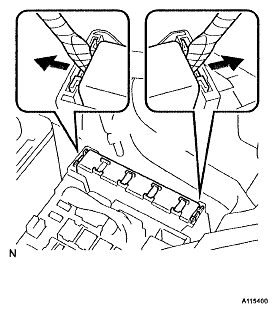

      Fig 1: Disconnecting Integration Relay
      G04828444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
