Engine Control System: ECM: Component

Fig 1: ECM Replacement Components (1 Of 3) With Torque Specifications
G04828446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECM Replacement Components (2 Of 3) With Torque Specifications
G04828447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

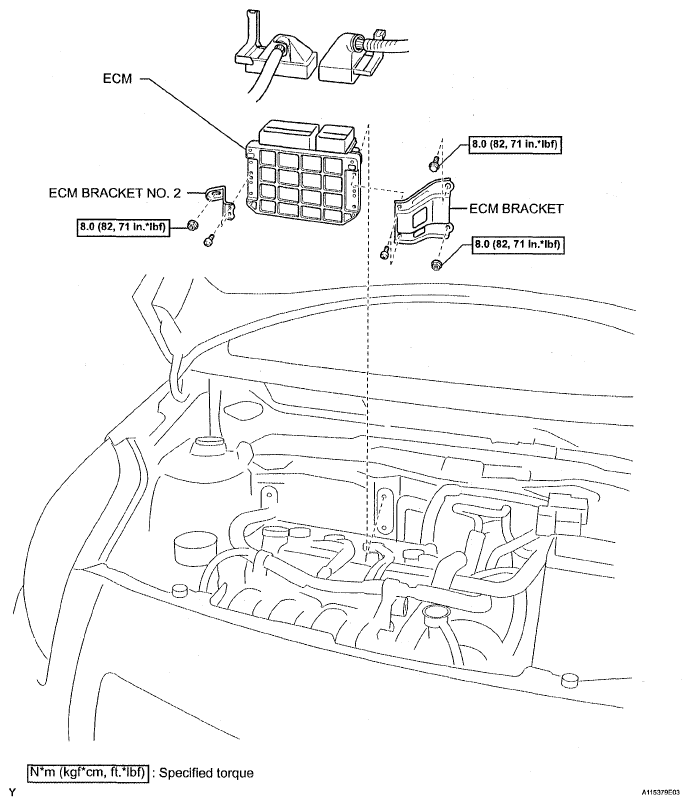

Fig 3: ECM Replacement Components (3 Of 3) With Torque Specifications
G04828448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
