Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

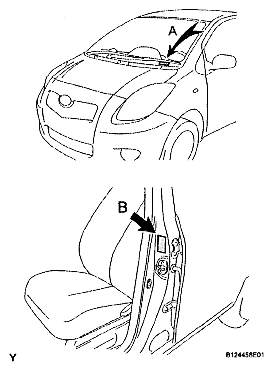

1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in Fig 1 .
  A: Vehicle Identification Number

  B: Certification Label

  Fig 1: Identifying Vehicle Identification Number & Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in Fig 2 .
  A: 1NZ-FE

  B: U340E

  C: C50

  Fig 2: Identifying Engine Serial Number & Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
