BACK DOOR GLASS (for Hatchback): Components

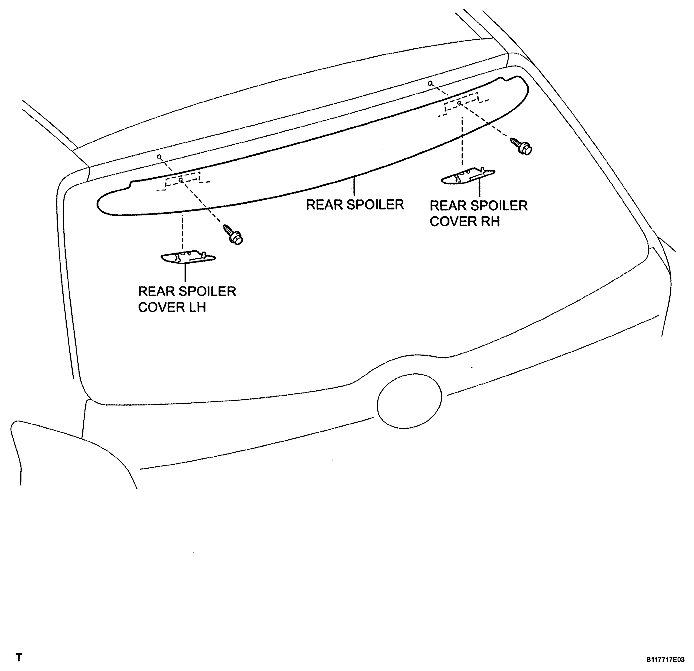

Fig 1: Identifying Back Door Components - For Hatchback (1 Of 2)
G04835015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

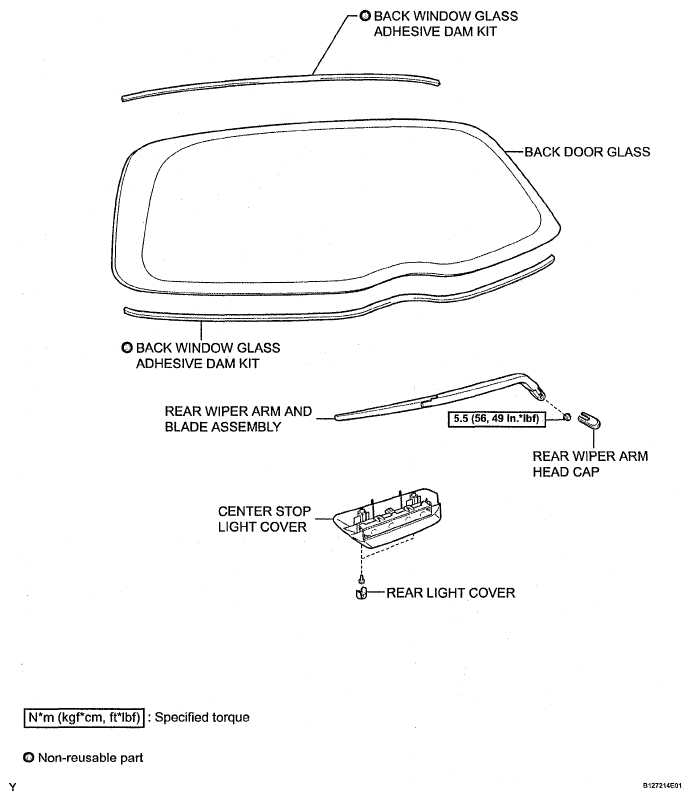

Fig 2: Identifying Back Door Glass Components - For Hatchback (2 Of 2)
G04833920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
