Charging System: Notes

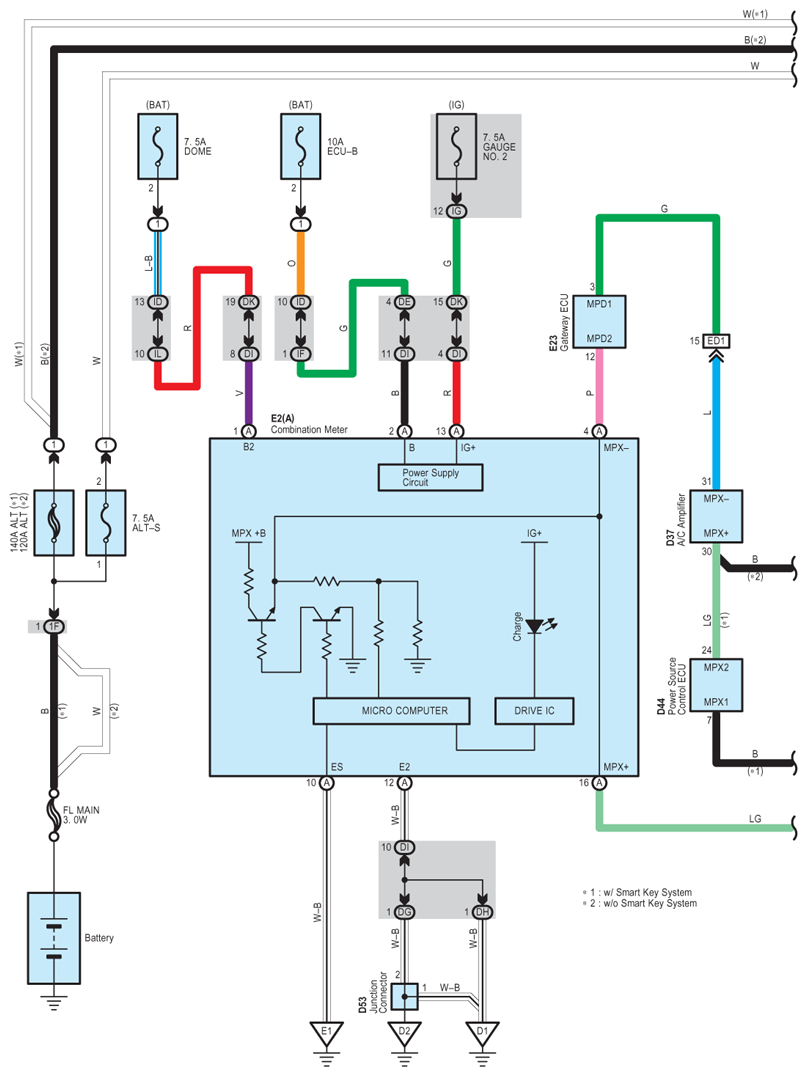

Fig 1: Charging - Circuit Diagram (1 Of 2)
G07616405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

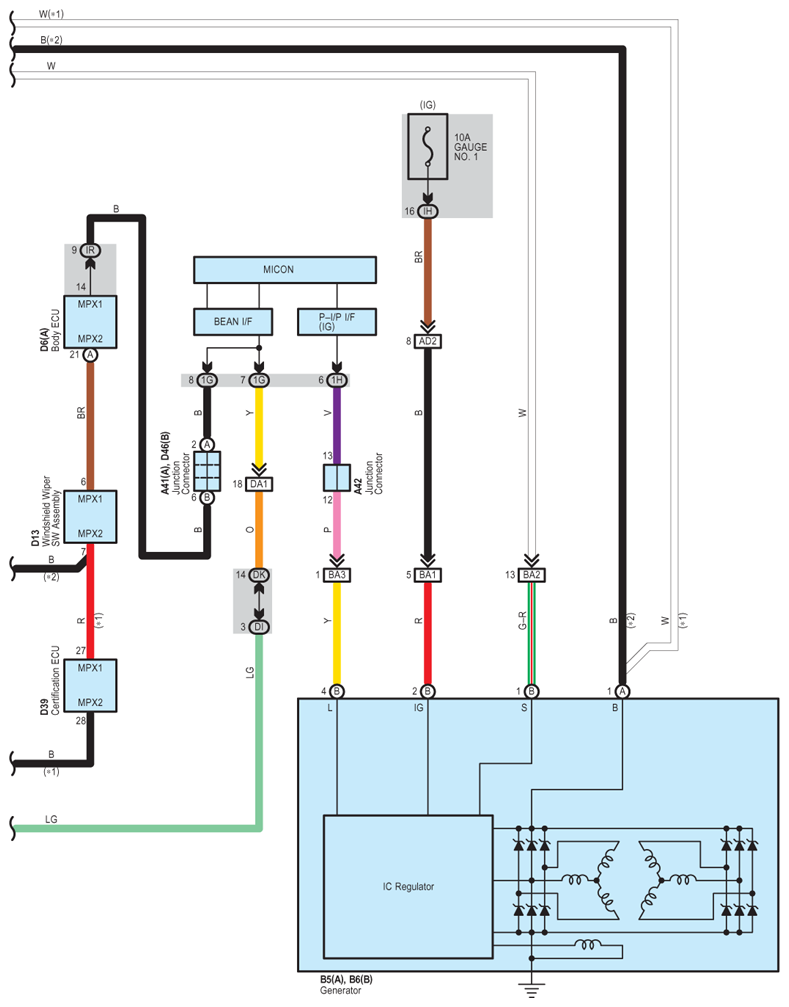

Fig 2: Charging - Circuit Diagram (2 Of 2)
G07616406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
